TASCAM DP-24SD
23
3 – Names and Functions of Parts

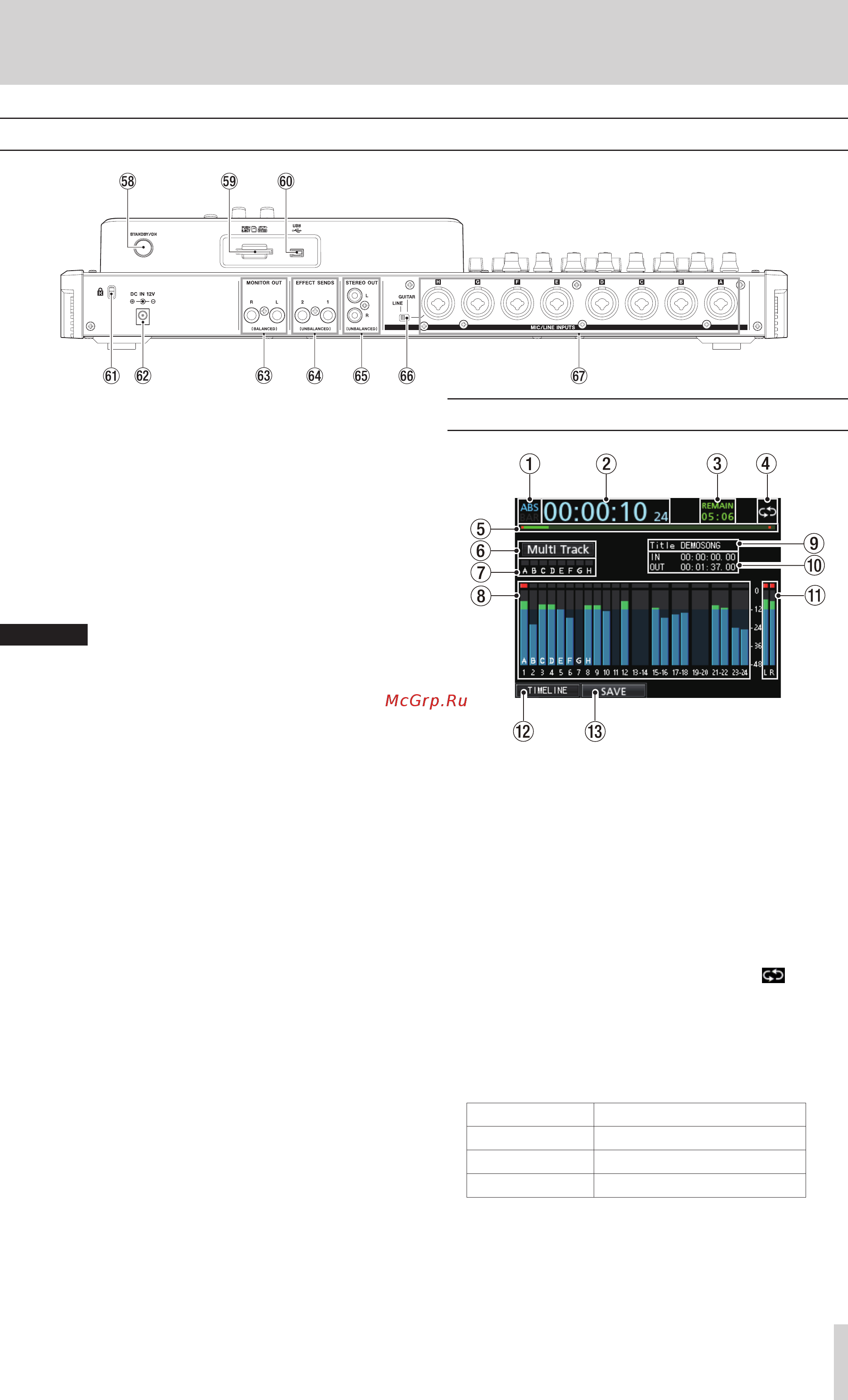

Rear panel
I STANDBY/ON button
When the power is OFF (standby), press and hold this button
to turn the power on. When power is ON, press and hold
this button to turn the power off (standby). (See “Start-up &
Shutdown” on page 27.)
O SD card slot
Insert the SD card into this slot.
P USB port
Use a commercially-available USB cable to connect with a
computer USB port. (See “Connecting to a computer” on
page 67.)
CAUTION
Always connect the unit directly to a computer. Do not use
a USB hub.
A Kensington lock attachment hole
S DC IN 12V jack
Connect the supplied PS-P1220E AC adapter.
D MONITOR OUT jacks (standard balanced TRS jacks)
These jacks output the signal selected in the monitor section
of the top panel. These are standard balanced phone jacks.
F EFFECT SENDS jacks (standard unbalanced TS jacks)
These jacks output the signal from effect sends 1 and 2.
G STEREO OUT jacks (unbalanced RCA jacks)
These jacks output the stereo bus signal.
H LINE-GUITAR switch
You must set this switch according to the input source of the
MIC/LINE INPUTS H. When connecting directly an electric
guitar, electric bass or other similar instrument, set this
switch to GUITAR. When connecting a digital instrument or
an audio equipment, set it to LINE.
J MIC/LINE INPUTS A-H jacks (balanced)
These are balanced analog XLR/TRS combo jacks for micro-
phone and line inputs.
• XLR (1: GND, 2: HOT, 3: COLD)
• TRS (Tip: HOT, Ring: COLD, Sleeve: GND)
Home screen
Home screen and track level meter display
1 Counter mode display
Displays the currently selected time counter mode:
ABS
or
BAR
.
2 Recorder time counter display
Displays the elapsed time from the start of the song.
3 REMAIN time display
Displays the remaining recordable time (Hours : Minutes) of
the SD card.
4 Repeat playback
When the unit is in Repeat Playback mode, the icon
appears.
5 Playback position display
Displays the current Playback position.
6 Recorder mode display
Displays the current Recorder mode.
Multi Track
Multi Track mode
Bounce
Bounce mode
Mixdown
Mixdown mode
Mastering
Mastering mode
The following items are also displayed:
Rehearsal
,
Auto Punch
and
Search
.
7 INPUT A to H overload indicators
If the input signal of any INPUT A to H source is too loud,
the corresponding indicators light.
