TASCAM US-20x20
11
5 – Connections

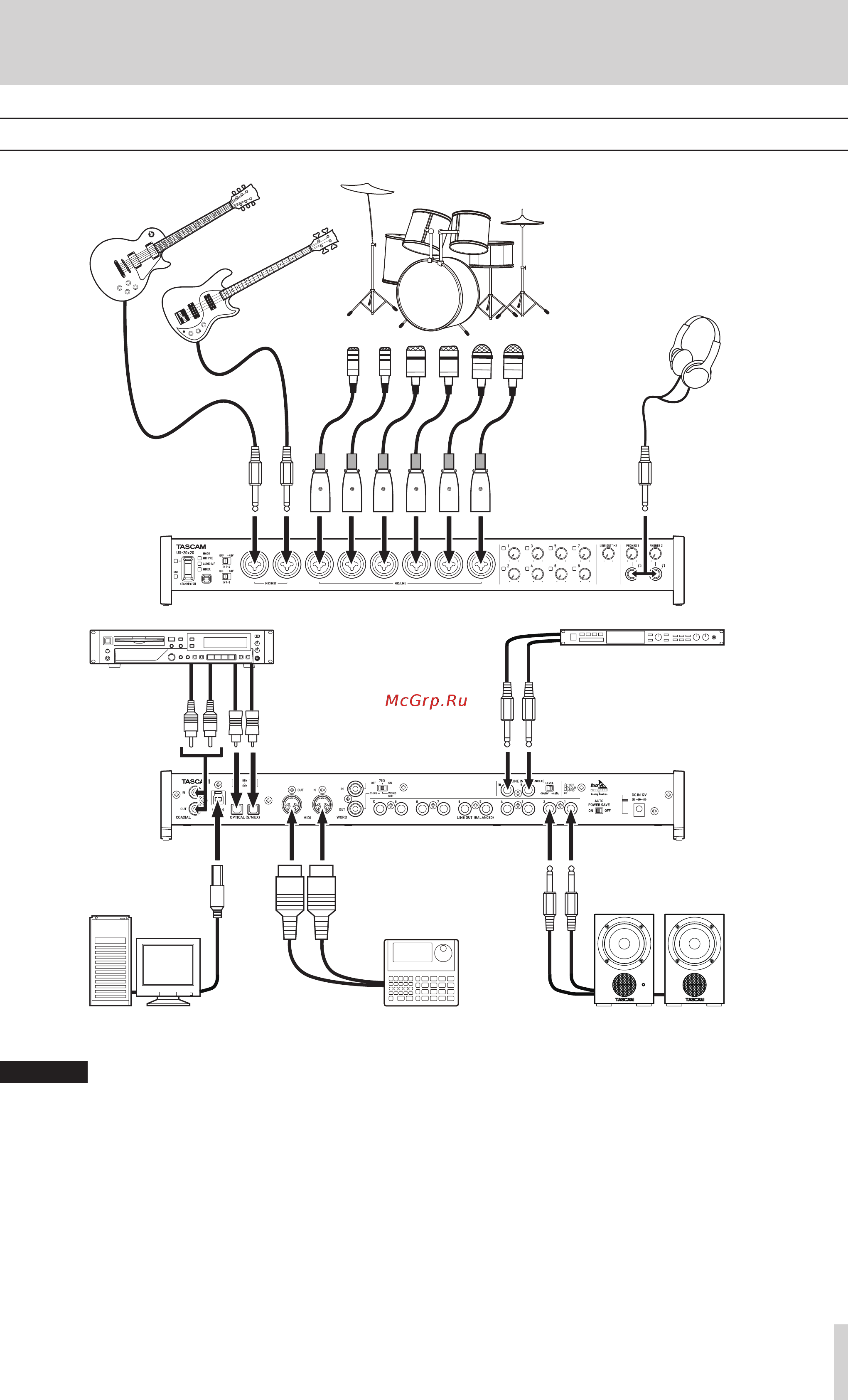

Examples of connections with other equipment
Bass Guitar
Guitar Drums
Headphones
Computer
Powered speakers or
amplifier and speakers
Drum machine
Sound module
Digital recorder
Example using a US-20x20
CAUTION
•
Before making connections, turn this unit and all equipment to be connected off (standby).
•
The phantom power switches set four input channels at a time. Do not set phantom power to +48V when connecting an unbalanced
dynamic mic.
•
Do not connect or disconnect mics while phantom power is set to +48V. Doing so could cause a loud noise and might damage this
unit and connected equipment.
•
Set the LINE OUT 1–2 and PHONES 1/2 knobs to their minimum values before changing a phantom power switch setting. Failure to
do so could cause sudden loud noises from monitoring equipment, and this could damage equipment or harm hearing.
•
Supplying phantom power to some ribbon mics will break them. If you are unsure, do not supply phantom power to a ribbon mic.
