TASCAM US-20x20
15
6 – Using the Settings Panel
MIXER page

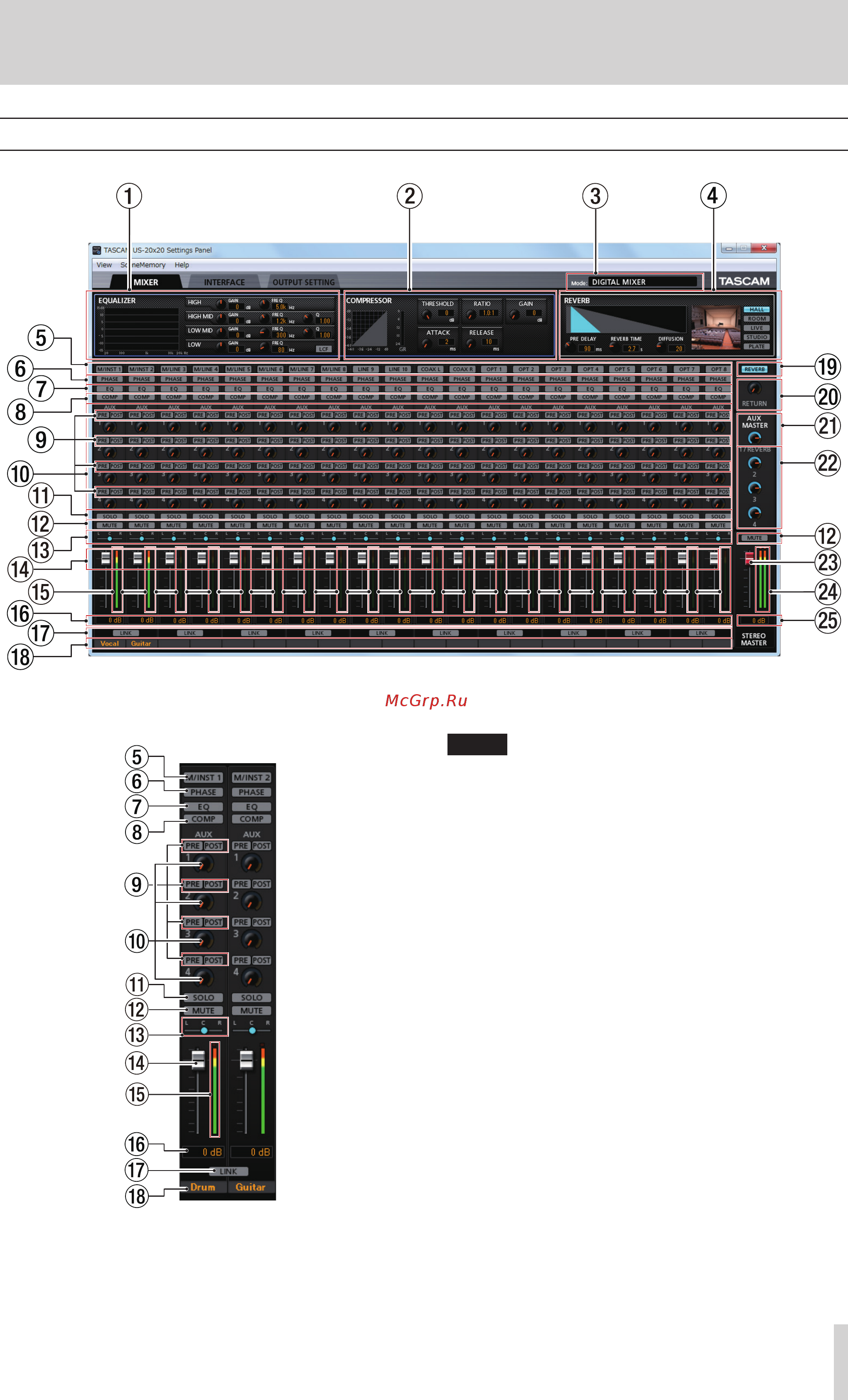

Windows Settings Panel screen
“MIXER” page channels 1–2
NOTE
When the unit is in MIC PRE mode, you cannot make settings
on the “MIXER” page even if you click the “MIXER” tab. (See
“Using the unit as a microphone preamp” on page 28.)
1 EQUALIZER
This unit has a 4-band equalizer (with HIGH, HIGH MID, LOW
MID and LOW bands).
Use the equalizer to increase or decrease the levels of
specific frequency ranges. This can be used, for example,
to enhance the sound of individual instruments, to adjust
the balance of a wide frequency range and to cut specific
unwanted frequencies. (See “EQUALIZER (4-band parametric
EQ) display area overview” on page 18.)
Click the Select (5) button of a channel to make equalizer
settings for it.
Equalizer settings are shown here for the channel selected
using its Select (5) button.
