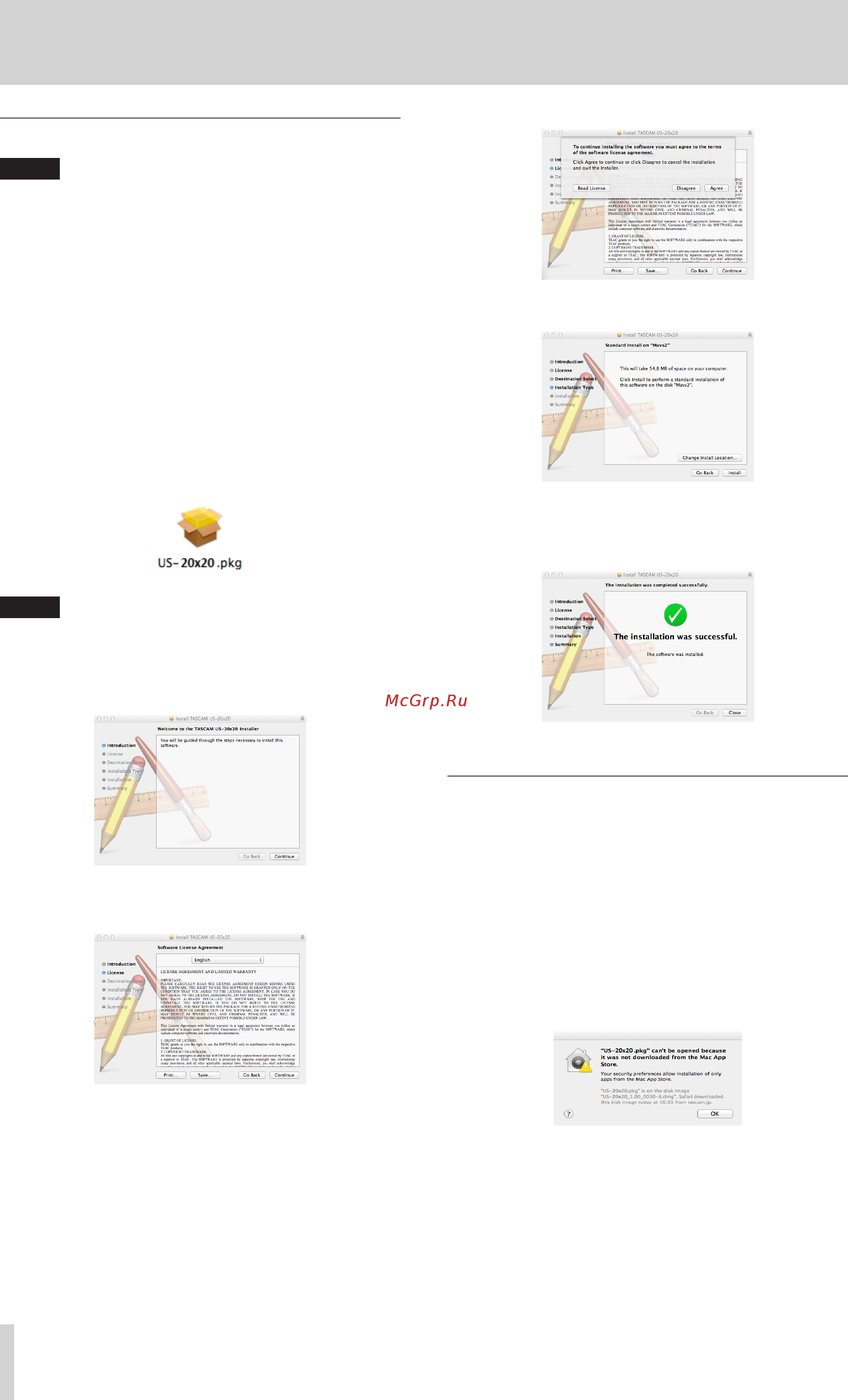

8
TASCAM US-20x20
3 – Installation
Installing the Mac Settings Panel
NOTE
•
Install the Mac Settings Panel on the computer before
connecting the unit to it with the USB cable.
•
During installation of the Mac Settings Panel, a warning
message such as “'US-20x20.pkg' can't be opened because
it was not downloaded from the Mac App Store.” might
appear. If a message like this appears, follow the instruc-
tions in “Working with Gatekeeper” on page 8 and then
proceed with the installation.
8
Mac Settings Panel installation procedures
1. Download the latest Mac Settings Panel for the operating
system you are using from the TEAC Global Site (http://
teac-global.com/) and save it on the computer to be used
with the unit.
2. Double-click “US-20x20_Installer.dmg", which is the saved
disk image file for the Mac Settings Panel, and double-click
“US-20x20.pkg” inside the folder that opens.
NOTE
Depending on the computer’s settings, the downloaded zip
file might not have opened automatically. In this case, open
the zip file first and then double-click the disk image file.
3. When the installer starts, click the “Continue” button.
4. Next, select the desired language and click the “Continue”
button.
5. Click the “Read License” button and check the contents
of the Software License Agreement. If you agree to the
contents, click “Agree”.
Then, click the “Next” button.
6. Next, click the “Install” button to start installation.
7. The following screen appears when installation has
completed.
Click the “Close” button.
The Mac Settings Panel will launch.
Working with Gatekeeper
When using Mac OS X, depending on the Gatekeeper security
function setting, a warning message might appear during
installation.
The solution depends on the warning message shown.
See the following explanations for details.
8
When the Gatekeeper setting is “Allow applications
downloaded from: the Mac App Store"
The following security warning might be shown: “US-20x20.
pkg' can't be opened because it was not
the Mac App Store."
In this case, click the OK button to close the message. Then,
control-click (or right-click) the file and click “Open”.
