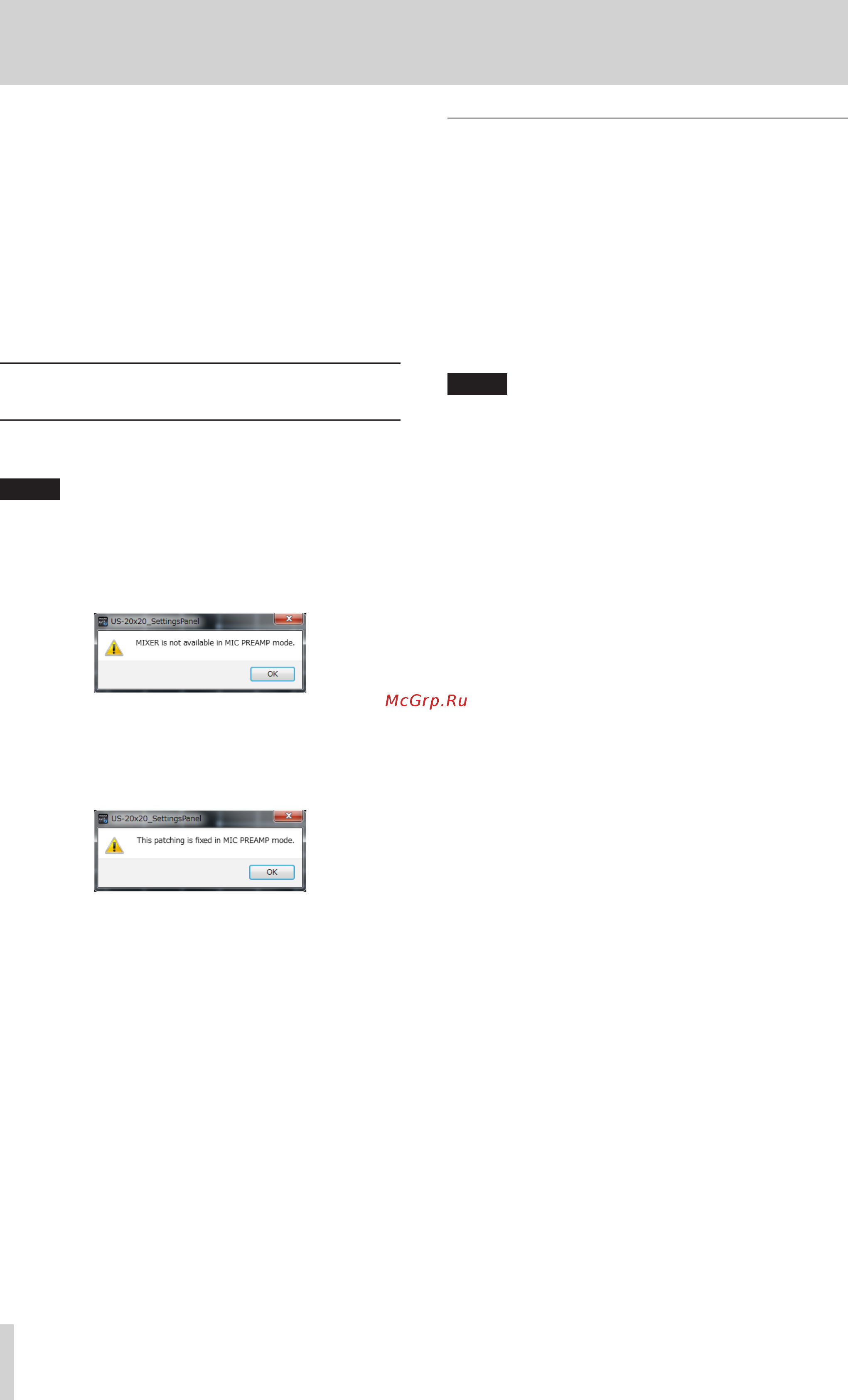

![Tascam US-20x20 [28/44] Using the unit as a microphone preamp](/views2/1553325/page28/bg1c.png)
28
TASCAM US-20x20
7 – Operation modes
Press the MODE button on the front of the unit to change the
operation mode used.
The MODE indicator lights for the currently active operating
mode.
This unit has the following three operating modes.
•
MIC PRE
The unit operates as a microphone preamp.
•
AUDIO I/F
The unit operates as an audio interface.
•
MIXER
The unit operates as a digital mixer.
Using the unit as a microphone
preamp
When the MIC PRE MODE indicator on the front of the unit is lit,
you can use the unit as a microphone preamp.
NOTE
•
The default sampling frequency in mic preamp mode is 44.1
kHz.
•
When the unit is in mic preamp mode, you cannot make
settings on the “MIXER” page. If you click the “MIXER” tab,
the following message will appear.
•
When the unit is in mic preamp mode, you cannot change
settings in the output signal selection area of the “OUTPUT
SETTING” page. The following message will appear if you
try to change the settings. (See “OUTPUT SETTING page” on
page 22.)
Changing the sampling frequency in mic
preamp mode
Use the following settings to change the sampling frequency
(44.1 kHz by default) in mic preamp mode.
8
Windows
Control Panel w Sound window w Speakers TASCAM
US-20x20 w Properties (p) w US-20x20 Properties
Advanced tab w Default Format
8
Mac
Applications folder w Utilities folder w Audio MIDI Setup
w Audio Devices window w US-20x20 w Format
NOTE
In mic preamp mode, the sampling frequency can also be
changed from DAW software.
