Fluke 743B [24/134] B 743b

741B/743B

Users Manual

Keys

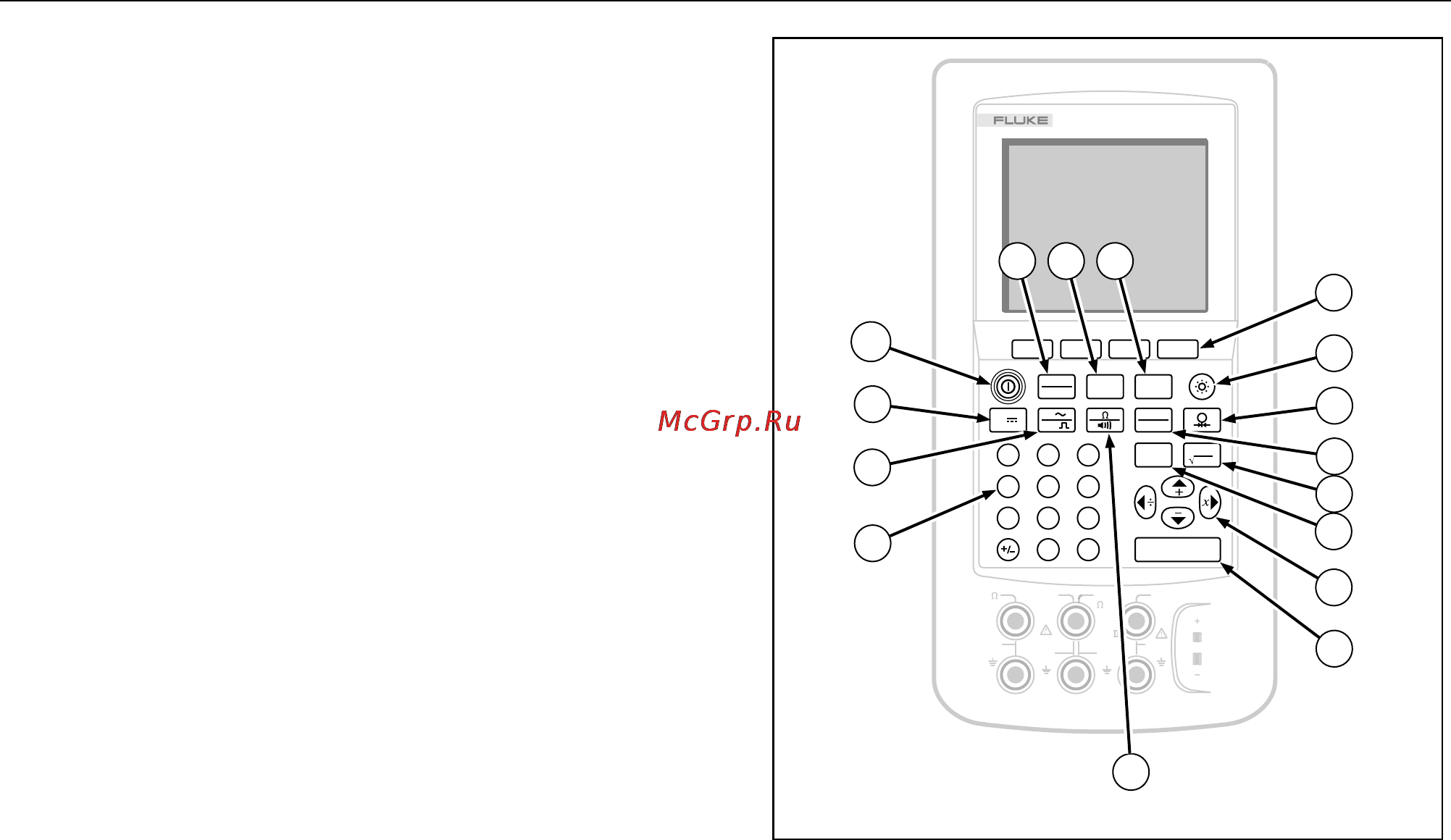

Figure 6 shows the calibrator keys and Table 3

explains their functions. The softkeys are the four

unmarked blue keys just below the display. Softkey

functions are defined by the labels that appear above

the softkey during operation. Softkey labels and

other display text are shown in this manual in bold

type, for example,

Choices.

MEAS

SOURCE

SETUPmA

RTD

789

456

123

ENTER

CLEAR

(ZERO )

mA mA

RTD

SOURCE

300V

30V

MAX

30V

MAX

30V

MAX

MEAS

CAT

RANGE

DOCUMENTING PROCESS CALIBRATOR

743B

ki06f.eps

Figure 6. Keys
