741B/743B
Users Manual
84
Recording Min and Max Measurements
You can set the display to record and show the
maximum and minimum readings. Min and Max
readings are always undamped, even if Dampen is
On. Press the
More Choices softkey twice, then press
the
Min Max softkey to turn on this feature. Press the
c key to reset the Min Max registers. Press the
Min Max softkey again to revert to the normal display.

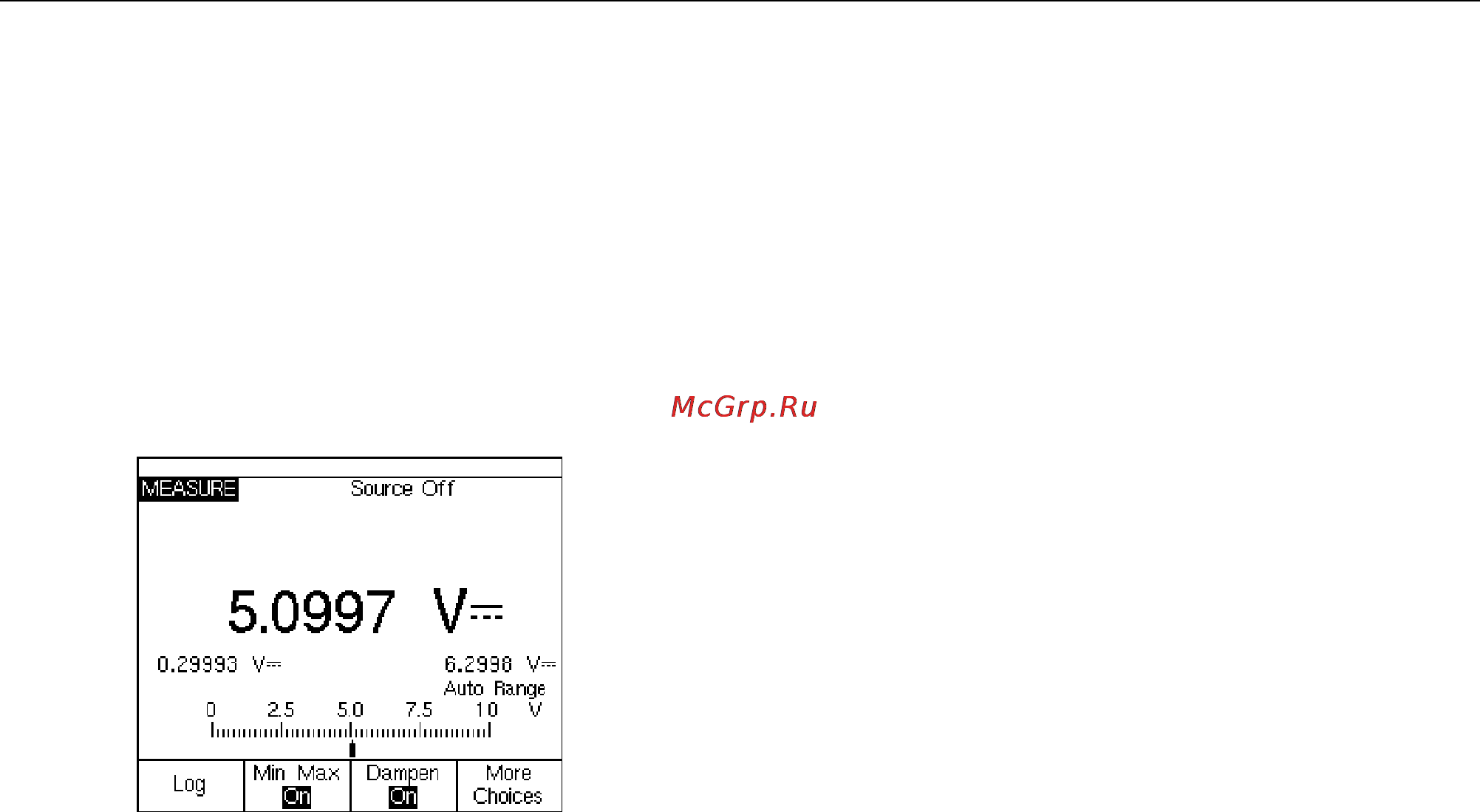

The following figure shows the display with Min Max
on:
gj55s.eps
Running a Preloaded Task (743B only)
Press the More Choices softkey until the Tasks
softkey appear, then press Tasks to view the list of
tasks (procedures) a host
computer. Tasks are 743B calibrator configurations,
saved with a procedure name, for example the type
and manufacturer of a specific transmitter. A task
configures the calibrator for transmitter calibration
with all the calibration parameters (source and
measure functions, 0% and 100% levels, test
strategy) predefined.
While the task is controlling the calibrator, the
Continue softkey becomes Continue Task.
Clearing Memory
In Setup mode, highlight the Clear Memory choice
and press e to clear all the memory:
• Saved results
• Min Max data
• Log data sets (Model 743 only)
A confirmation message appears so that you do not
inadvertently erase the memory.
