Documenting Process Calibrator

Calibrating a Process Instrument

8. Press

M for MEASURE/SOURCE mode. The

display changes to:

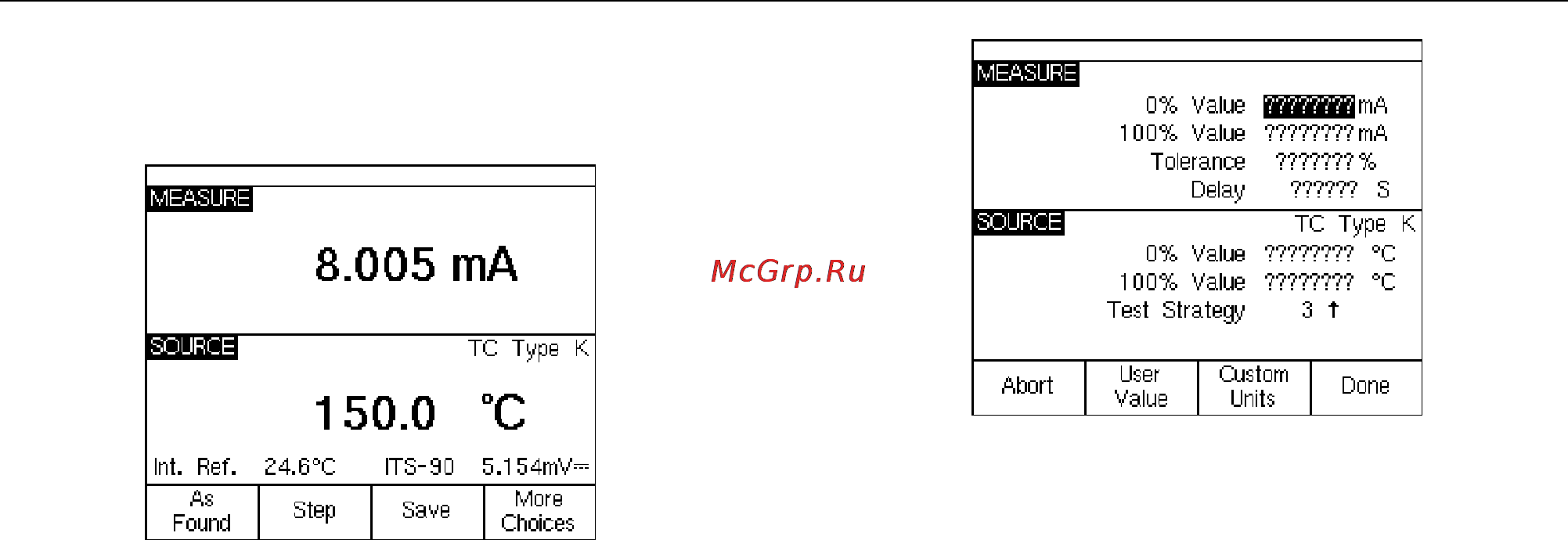

gj42s.eps

9. Press the As Found softkey, followed by the

Instrument softkey. The display changes to:

gj44s.eps

10. Enter values for 0% and 100% of 4.0 mA and

20.0 mA, respectively. Set

Tolerance to 0.5% of

span. (Use other values if necessary for your

application.)
