Управление встроенной полевой шиной Страница: 37

ABB ACH550-01-03A3-4+B055 [37/62] Abb control profiles technical data

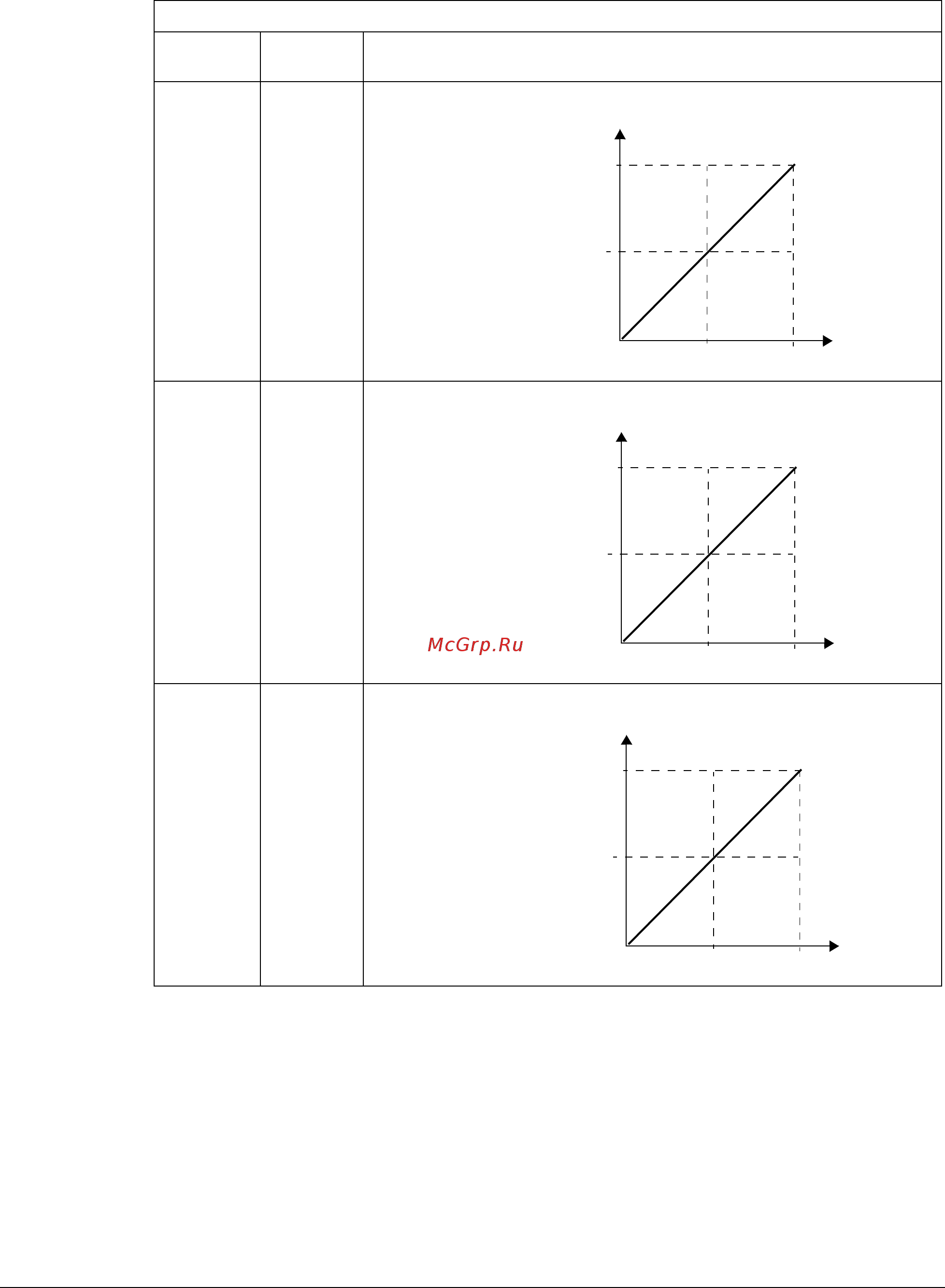

ABB Control Profiles Technical Data

REF1 COMM*AI1 COMM (%) * (AI (%) / 0.5*REF1 MAX (%))

REF2

COMM+AI1 COMM (%) + (AI (%) - 0.5*REF2 MAX (%))

REF2

COMM*AI1 COMM (%) * (AI (%) / 0.5*REF2 MAX (%))

ABB Drives and DCU Profiles

Reference

Value

Setting

AI Reference Scaling

50%

200%

(100 - 0.5 * (par. 1105))%

100%

AI1 Input Signal

Fieldbus Reference

Correction Coefficient

50%

(100 + 0.5 * (Par. 1108)%

(100 - 0.5 * (par. 1108)%

100%

AI1 Input Signal

Fieldbus Reference

Correction Coefficient

50%

200%

100%

AI1 Input Signal

Fieldbus Reference

Correction Coefficient
