Start-up and controls 27
Viewing pump signals
The parameters 0182...0185 display the actual signals of the pump. These values are read
only. To view these values in the control panel, follow these steps:
6 Press SAVE to store the
modified value or press
CANCEL to leave the set
mode. Any modifications not
saved are cancelled.
7 Press EXIT to return to the
main menu.

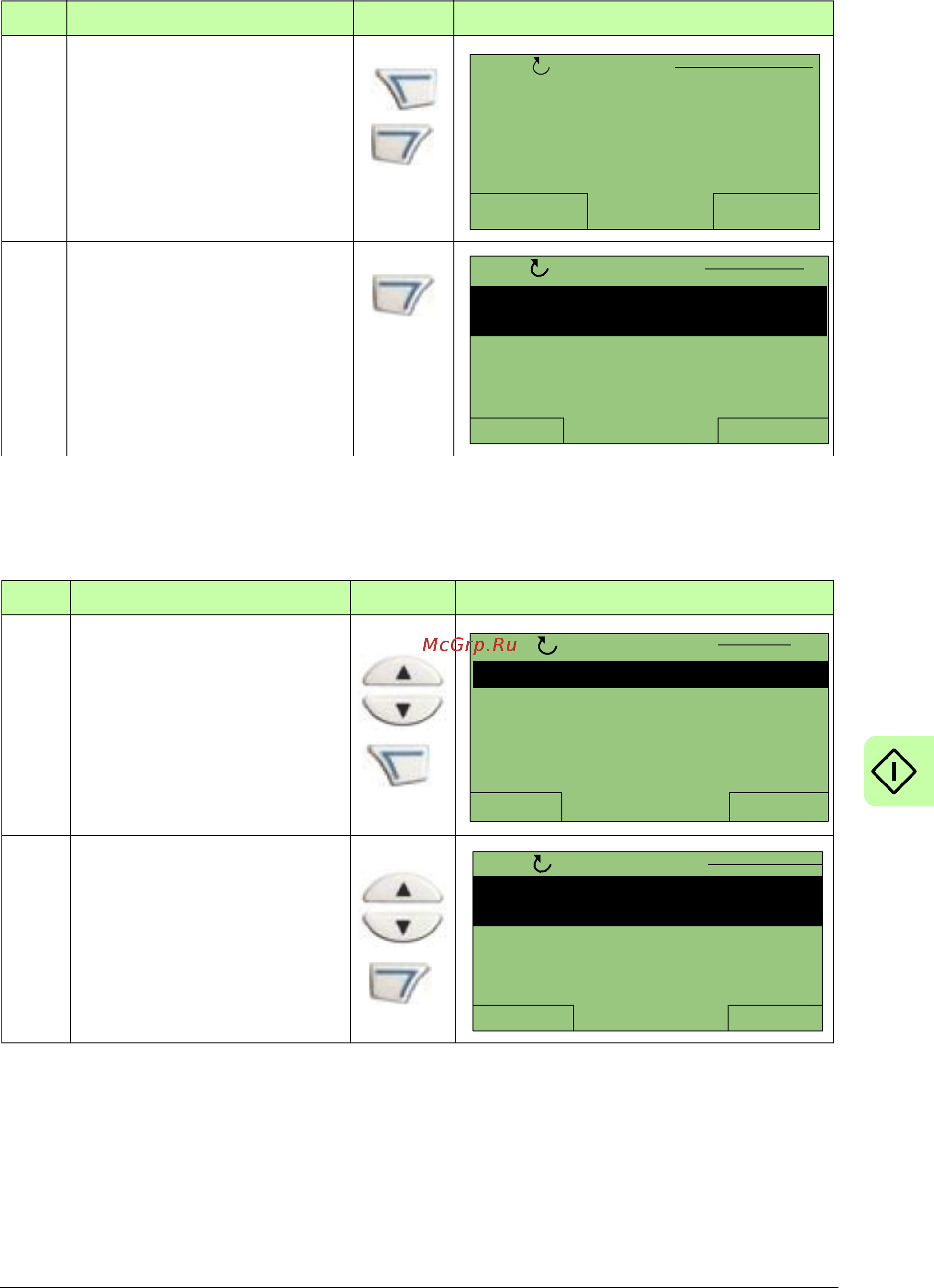

Step Description Keys Control panel
1 Select 01 OPERATING DATA
with the UP/DOWN keys and
press SEL.
2 Press the UP/DOWN keys to
view the actual values
displayed below individual
parameters.
For more details, see section
Actual signals, page 37.
Press EXIT to return to the
main menu.
Step Description Keys Control panel
REM
PAR EDIT
6001 AUTO/MANUAL SEL
AUTO
CANCEL
SAVE
00:00
[0]
REM
PARAMETERS
6004 PV CELL MIN VOLT
6003 START DC VOLT
6002 MANUAL START CMD
6001 AUTO/MANUAL SEL
AUTO
EXIT
EDIT
00:00
REM
PAR GROUPS
01 OPERATING DATA
03 FB ACTUAL SIGNALS
04 FAULT HISTORY
01
EXIT
SEL
00:00
10 START/STOP/DIR
11 REFERENCE SELECT
REM
PARAMETERS
0184 TODAY FLOW
0185
CUMULA YEAR FLOW
0183 CALCULATED FLOW
EXIT
EDIT
00:00
0182 PUMP RUN HOUR
0h
