Руководство по прошивке Страница: 29

ABB ACS355-01E-06A7-2 [29/76] Min load current

Start-up and controls 29

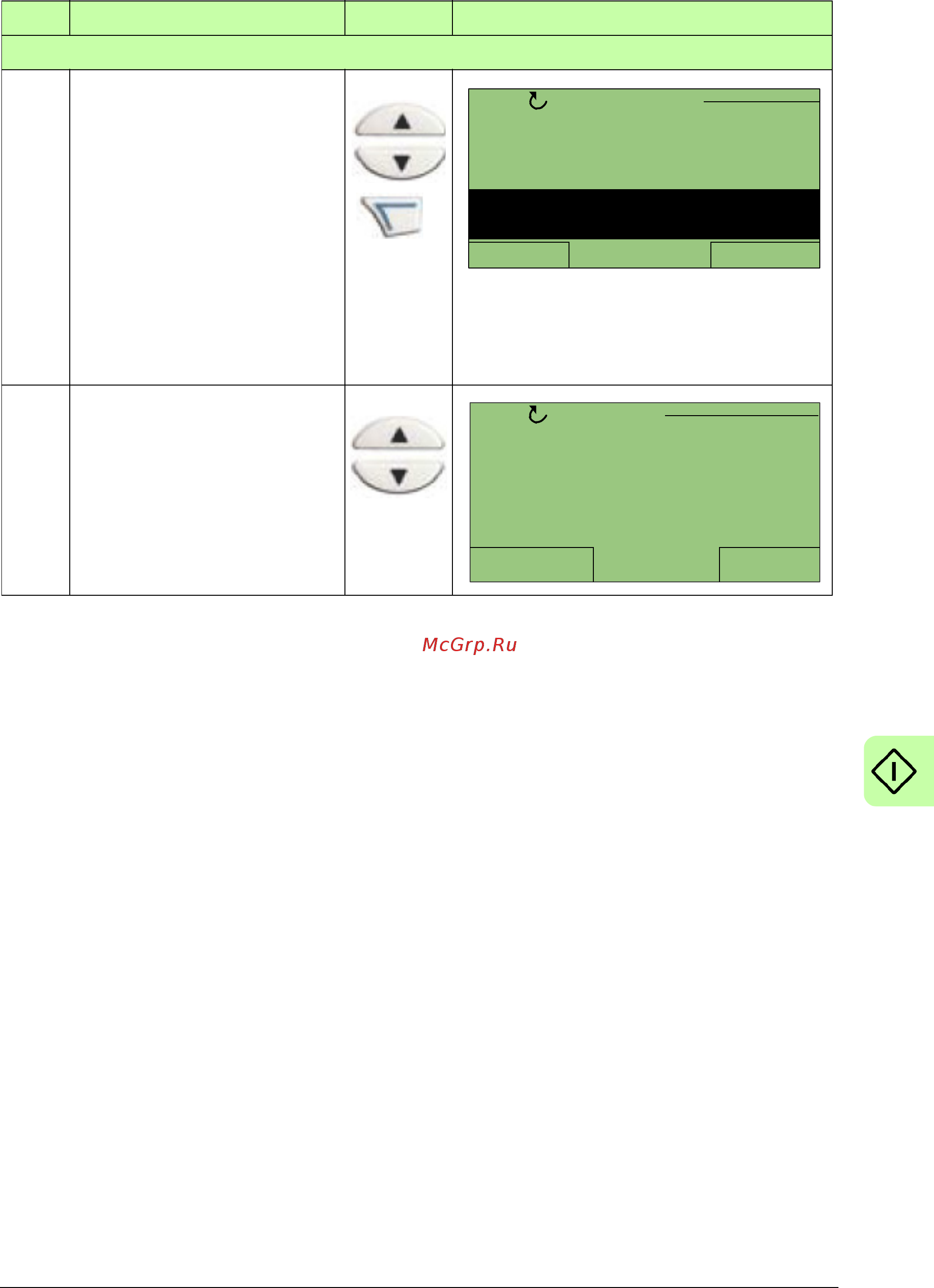

Setting inverter reset time

1 Select parameter 6019

FAULT RESET TIME with the

UP/DOWN keys. Press EDIT

to change the parameter

value.

You can set the auto reset

time to start the inverter after

it has tripped in the event of

under-voltage fault, PV cell

maximum voltage fault or

when actual speed decreases

below the minimum motor

speed limit.

2 Press the UP/DOWN keys to

change the parameter value.

Press SAVE to store the

modified value or press

CANCEL to leave the set

mode. Any modifications not

saved are cancelled.

Step Description Keys Control panel

REM

PARAMETERS

6017 DRY RUN TRP TIME

6018 DRY RUN RST TIME

6016 MIN LOAD CURRENT

EXIT

EDIT

00:00

6019 FAULT RESET TIME

2min

REM

PAR EDIT

6019 FAULT RESET TIME

2 min

CANCEL

SAVE

00:00
