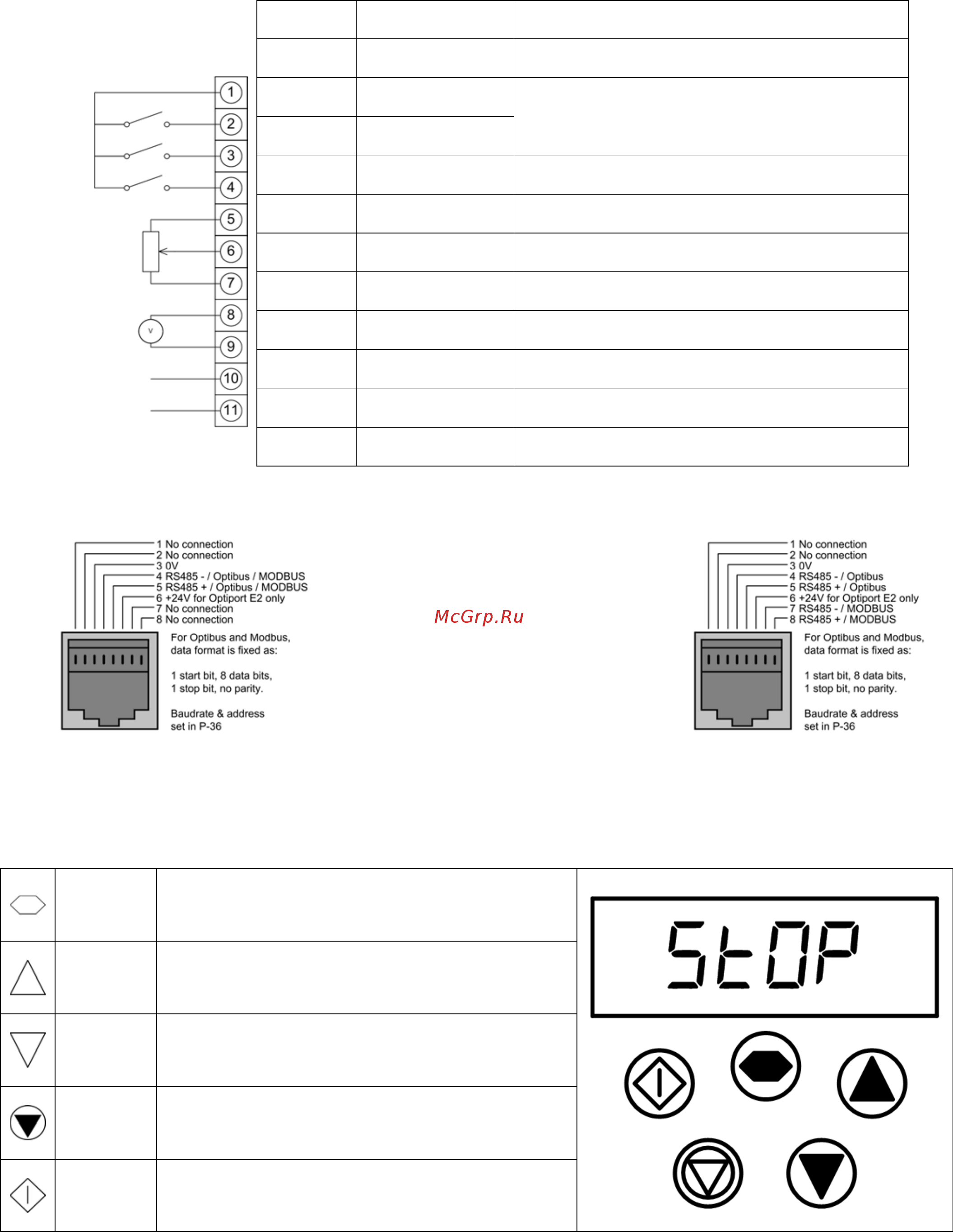

5. Control Wiring
5.1. Control terminal connections
Default
Connections
Control
Terminal
Signal Description
1 +24V User Output, +24V, 100mA.
2 Digital Input 1
3 Digital Input 2
Positive logic
“Logic 1” input voltage range: 8V … 30V DC
“Logic 0” input voltage range: 0V … 2V DC
4
Digital Input 3 /
Analog Input 2
Digital: 8 to 30V
Analog: 0 to 10V, 0 to 20mA or 4 to 20mA
5 +10V User Output +10V, 10mA, 1kΩ minimum
6
Analog Input 1 /
Digital Input 4
Analog: 0 to 10V, 0 to 20mA or 4 to 20mA
Digital: 8 to 30V
7 0V User ground connected terminal 9
8
Analog Output /
Digital Output
Analog: 0 to 10V, 20mA maximum
Digital: 0 to 24V
9 0V User ground connected terminal 7
10 Relay Common
11 Relay NO Contact Contact 250Vac, 6A / 30Vdc, 5A
5.2. RJ45 Data Connection
For drives with software V1.00 & V1.01 For drives with software V1.02 & later
For MODBUS RTU register map
information please refer to the Optidrive
E2 Advanced User Guide.
When using MODBUS control the Analog
and Digital Inputs
can be configured as shown in section
8.3
MODBUS control mode (P12 = 3 or 4)
6. Operation
6.1. Managing the keypad
The drive is configured and its operation monitored via the keypad and display.
NAVIGATE
Used to display real-time information, to access and
exit parameter edit mode and to store parameter
changes
UP
Used to increase speed in real-time mode or to
increase parameter values in parameter edit mode
DOWN
Used to decrease speed in real-time mode or to
decrease parameter values in parameter edit mode
RESET /
STOP
Used to reset a tripped drive.
When in Keypad mode is used to Stop a running drive.
START
When in keypad mode, used to Start a stopped drive or
to reverse the direction of rotation if bi-directional
keypad mode is enabled
12 Optidrive E2 IP55/NEMA 12 User Guide
www.invertek.co.uk
