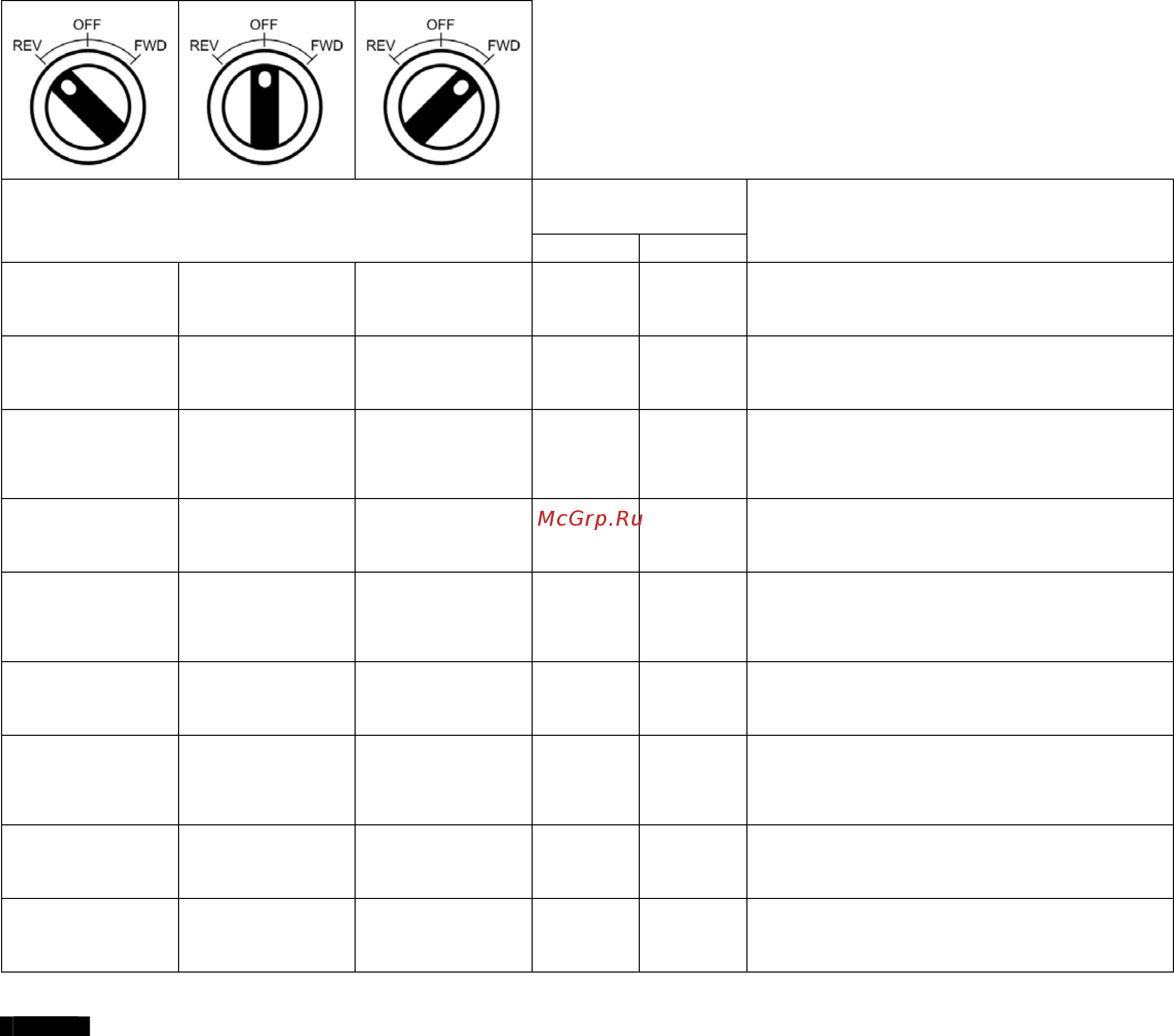

6.4. Using the REV/0/FWD selector switch (Switched version only)
By adjusting the parameter settings the Optidrive can be configured for multiple applications and not just for Forward or Reverse.
This could typically be for Hand/Off/Auto applications (also known and Local/Remote) for HVAC and pumping industries.
Parameters to
Set Switch Position
P-12 P-15
Notes
Run Reverse STOP Run Forward 0 0
Factory Default Configuration
Run Forward or Reverse with speed controlled
from the Local POT
STOP STOP Run Forward 0 5,7
Run forward with speed controlled form the
local POT
Run Reverse - disabled
Preset Speed 1 STOP Run Forward 0 1
Run Forward with speed controlled from the
Local POT
Preset Speed 1 provides a ‘Jog’ Speed set in
P-20
Run Reverse STOP Run Forward 0 6, 8
Run Forward or Reverse with speed controlled
from the Local POT
Run in Auto STOP Run in Hand 0 4
Run in Hand – Speed controlled from the Local
POT
Run in Auto 0 Speed controlled using Analog
input 2 e.g. from PLC with 4-20mA signal.
Run in Speed
Control
STOP Run in PI Control 5 1
In Speed Control the speed is controlled from
the Local POT
In PI Control, Local POT controls PI set point
Run in Preset
Speed Control
STOP Run in PI Control 5
0, 2, 4,5,
8..12
In Preset Speed Control, P-20 sets the Preset
Speed
In PI Control, POT can control the PI set point
(P-44=1)
Run in Hand STOP Run in Auto 3 6
Hand – speed controlled from the Local POT
Auto – Speed Reference from Modbus
Run in Hand STOP Run in Auto 3 3
Hand – Speed reference from Preset Speed 1
(P-20)
Auto – Speed Reference from Modbus
NOTE To be able to adjust parameter P-15, extended menu access must be set in P-14 (default value is 101)
14 Optidrive E2 IP55/NEMA 12 User Guide
