Etaline, Etaline-R = 1450 rpm
H
[m]
Q[l/s]1 2 3 4 5 10 20 30 40 50 100 200 300 400 500 600Q[l/s]
20 30 40 50 100 200 300 400 500 1000 2000 3000 4000 5000
US.gpm
20 30 40 50 100 200 300 400 500 1000 2000 3000 4000 5000
IM.gpm
1
2
3
4
5
10
20
30
40
50
100
H
[m]
4
5
10
20
30
40
50
100
200
300
ft
4 5 10 20 30 40 50 100 200 300 400 500 1000 2000m³/h
200-200-315
200-200-250
150-150-250
150-150-200
125-125-250
125-125-200
125-125-160
100-100-250
100-100-200
100-100-160
80-80-250
80-80-200
80-80-160
100-100-125
65-65-250
65-65-160
50-50-250
50-50-160
40-40-250
40-40-160
32-32-200
32-32-160
R350-340
R300-500
R300-400
R300-360
R250-500
R250-400
R250-330
R250-300
R250-250
R250-260
R200-500
R200-400
R200-330
R150-500

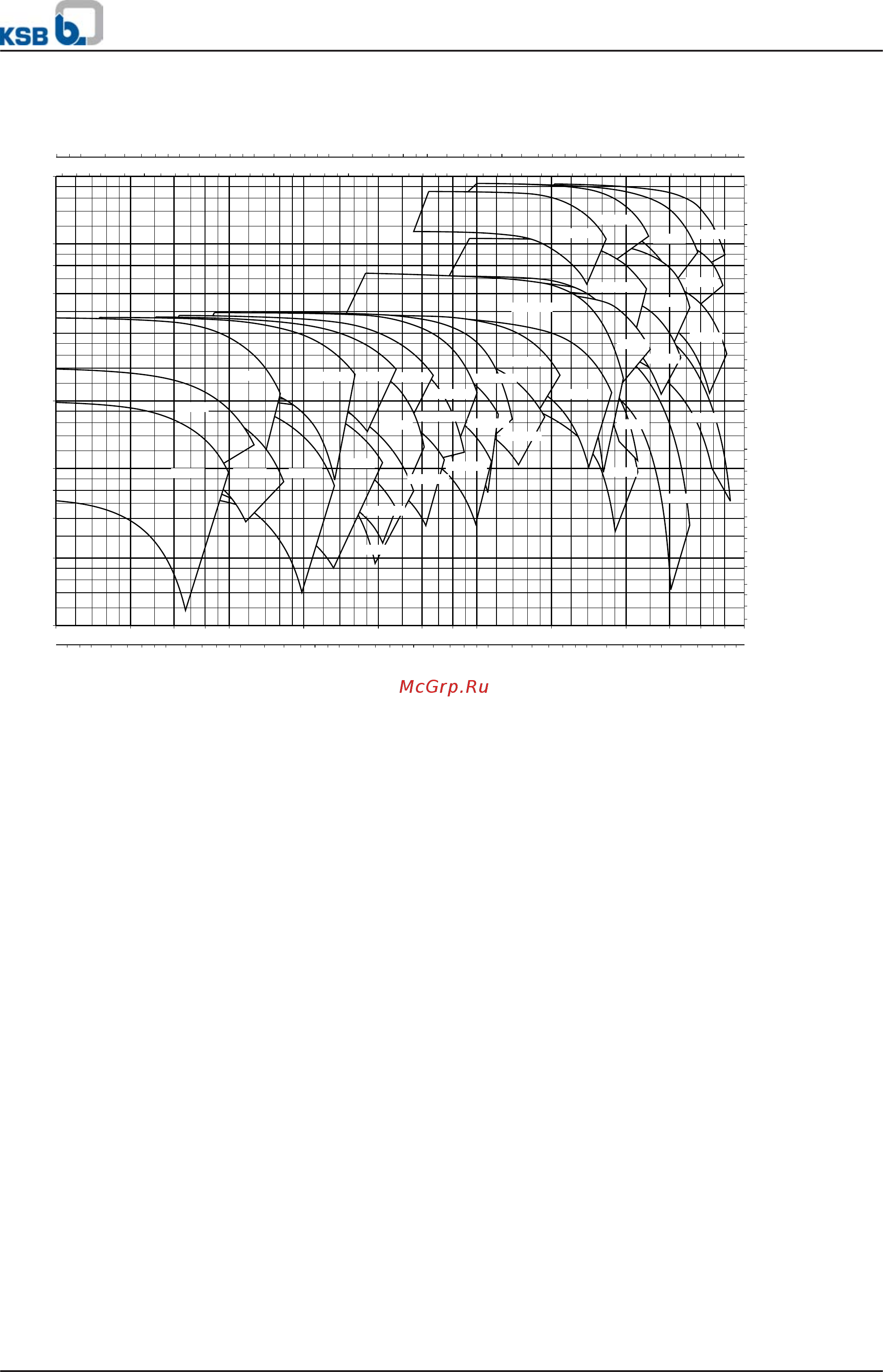

Characteristic curves
General
Test class: Characteristic curves to ISO 9906 Class 3B
NPSH values
The NPSH values indicated in the characteristic curves
correspond to a head drop of 3 %.
NPSH values in low-flow conditions
NPSH values for flow rates below Q = 0.3 x Q
opt
can only be
measured with intense technical efforts. Evidence of NPSH
values in the low-flow range cannot be provided.
Density of the fluid handled
The indicated heads and performance data apply to pumped
fluids with a density ρ = 1.0 kg/dm
3
and a kinematic viscosity v
of up to 20 mm
2
/s max. If the density ≠ 1.0, the performance
data must be multiplied by ρ. For viscosities >20 mm
2
/s the
corresponding data for cold water has to be calculated and the
impact on the pump's performance has to be determined.
Correction factors
The characteristic curves apply to pumps with cast iron or
bronze impellers. When using an impeller made of cast steel
materials the efficiency and pump power of the corresponding
pump sizes have to be multiplied by the correction factors
indicated in the characteristic curves.
Heating / Air-conditioning / Ventilation
In-line Pumps
16
Etaline / Etaline-R
