KSB Etaline ETL-350-340/7504 280S [83/90] Etaline etaline r
![KSB Etaline ETL-350-340/7504 280S [83/90] Etaline etaline r](/views2/1585123/page83/bg53.png)
Part No. Description Part No. Description
68-3.01/.02 Cover plate 6D Fluid priming and venting
801 Flanged motor 8B Leakage drain
Variant with clamped casing cover
[ Supplied in packaging units only
This view applies to the following pump sizes:
32-32-160 40-40-160 50-50-160 65-65-160 80-80-160 100-100-125
100-100-160
100-100-200
125-125-160
125-125-200
150-150-200

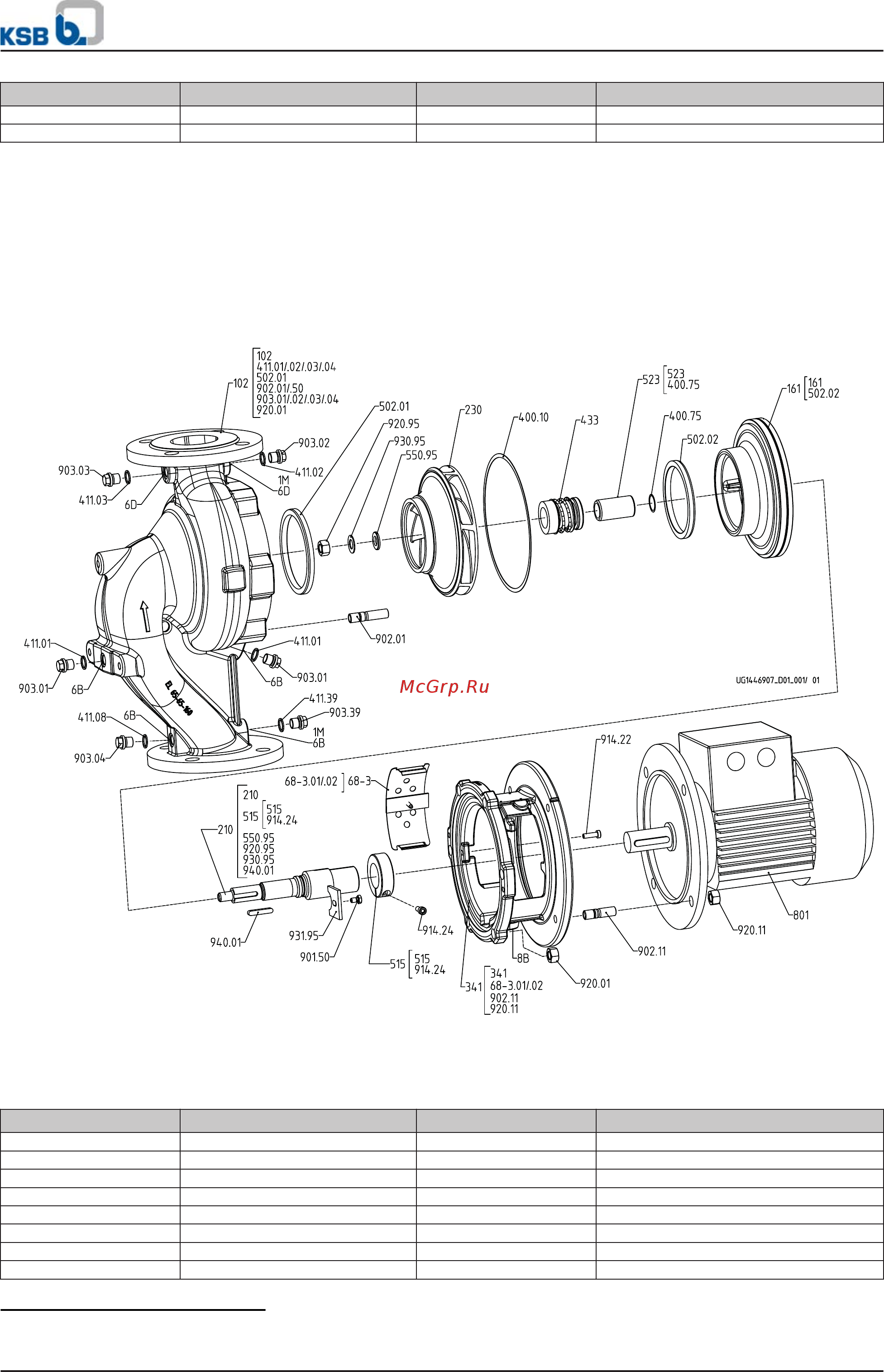

Pump set with single mechanical seal and clamped casing cover
List of components
Part No. Description Part No. Description
102 Volute casing 901.50 Hexagon head bolt
161 Casing cover 902.01/.11/.50 Stud
210 Shaft 903.01/.02/.03/.04/.08/.39 Screw plug
230 Impeller 914.22/.24 Hexagon socket head cap screw
341 Drive lantern 920.01/.11/.95 Hexagon nut
400.10/.75 Gasket 930.95 Safety device
411.01/.02/.03/.04/.08/.39 O-ring 931.95 Lock washer
433 Mechanical seal 940.01 Key
25)
For shaft unit 25 only
Heating / Air-conditioning / Ventilation
In-line Pumps
Etaline / Etaline-R
83
