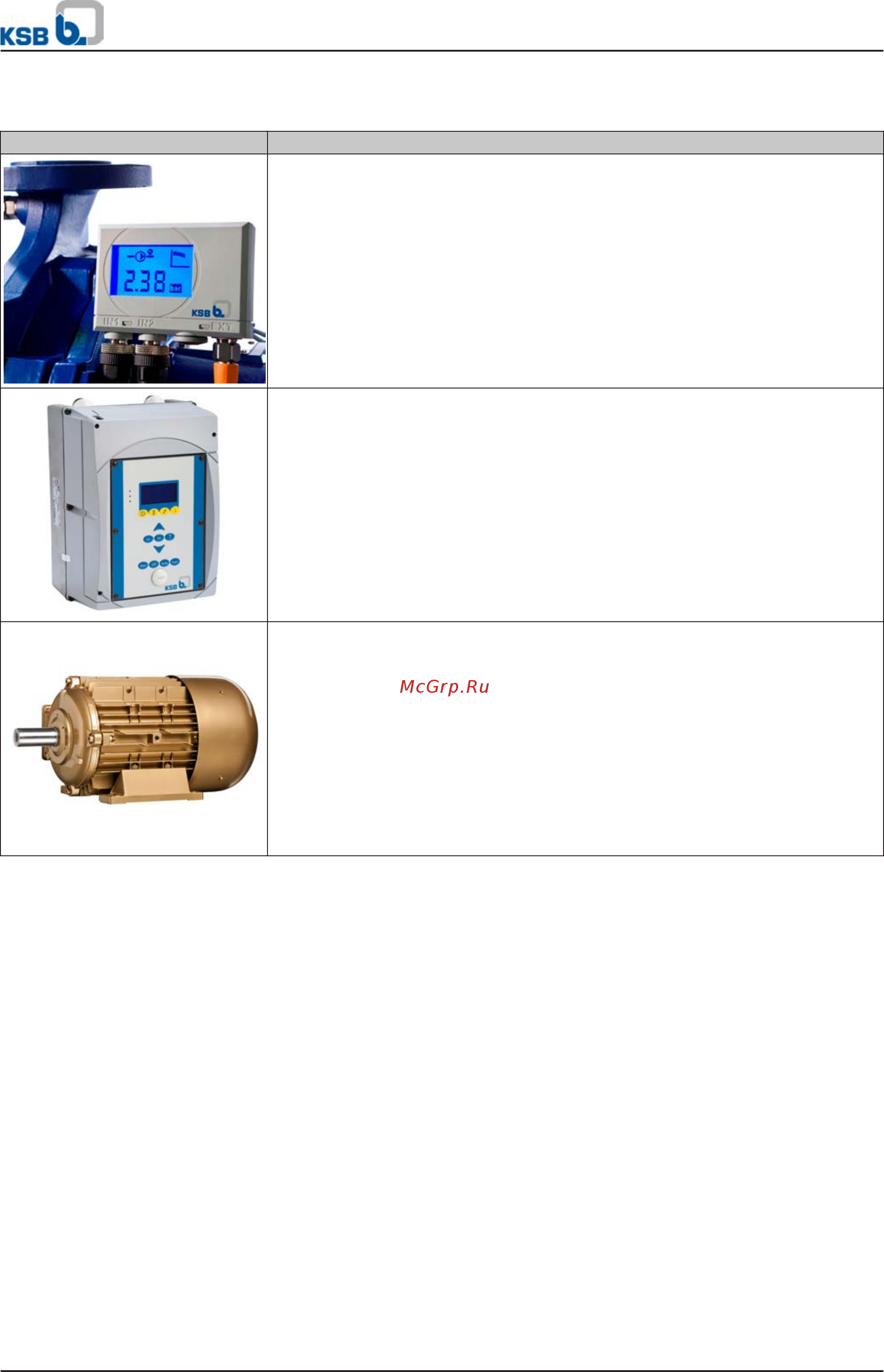

Electrical accessories
Further electrical accessories
Component Description
PumpMeter intelligent pressure transmitter
The PumpMeter device is an intelligent pressure transmitter for pumps, with on-site
display of measured values and operating data. The device comprises two pressure sensors
and a display unit. It records the load profile of the pump in order to indicate any
potential for optimising energy efficiency and availability. PumpMeter is supplied
completely assembled and parameterised for the pump it is used with. It is ready for
operation as soon as the M12 plug connector is plugged in.
PumpDrive self-cooling frequency inverter
PumpDrive is a modular, self-cooling frequency inverter which enables continuously
variable speed control of asynchronous motors and synchronous reluctance motors
(PumpDrive S) by means of analog standard signals, a field bus or the control panel.
The parts of the PumpDrive housing which are in contact with the atmosphere are free
from paint-wetting impairment substances.
Mounting options:
▪ Motor-mounted
▪ Wall-mounted
▪ Cabinet-mounted
KSB SuPremE motor
Magnetless synchronous reluctance motor of efficiency class IE4 in compliance with
IEC CD 60034-30 Ed. 2, 05-2011 for operation with a KSB PumpDrive S variable speed
control system, no rotor position sensors needed
Heating / Air-conditioning / Ventilation
In-line Pumps
Etaline / Etaline-R
81
