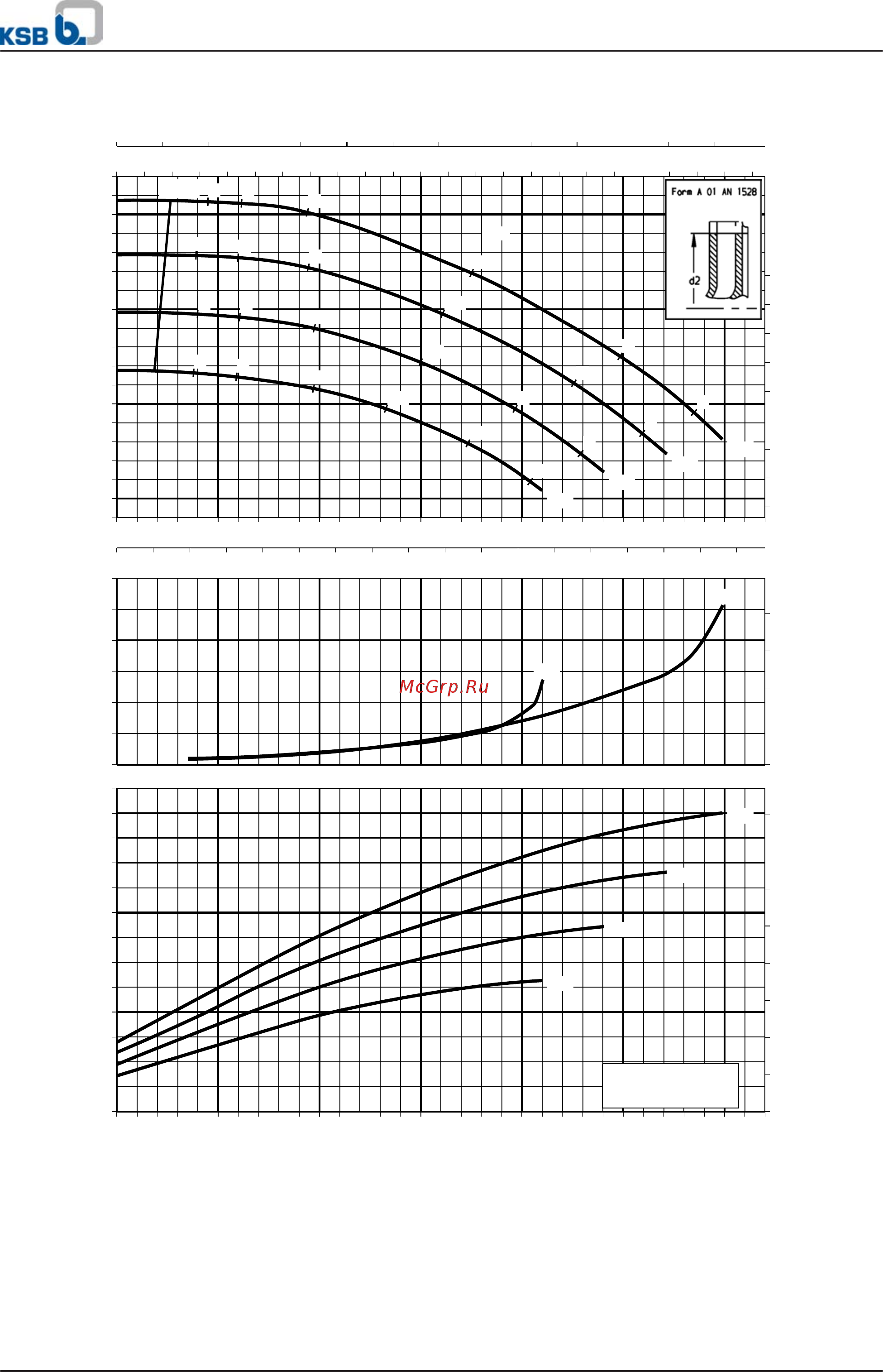

KSB Etaline ETL-350-340/7504 280S [19/90] Etaline etaline r

Etaline 40-40-160, n = 2900 rpm

K1159.452/22/0

0 10 20 30 40 50 60

Q [m³/h]

0 100 200

Q [US.gpm]

0 50 100 150 200

Q [IM.gpm]

H [m]

100

H [ft]

0 5 10 15

Q [l/s]

NPSH

[m]

NPSH

[ft]

P [kW]

P [hp]

0 10 20 30 40 50 60

Q [m³/h]

ø174

ø163

ø150

ø136

Qmin

67.6

66.6

64.9

63.3

η [%]

Korrekturfaktor Stahlgusslaufrad

correction factor steel impeller

╖: 0,985

P: 1,015
