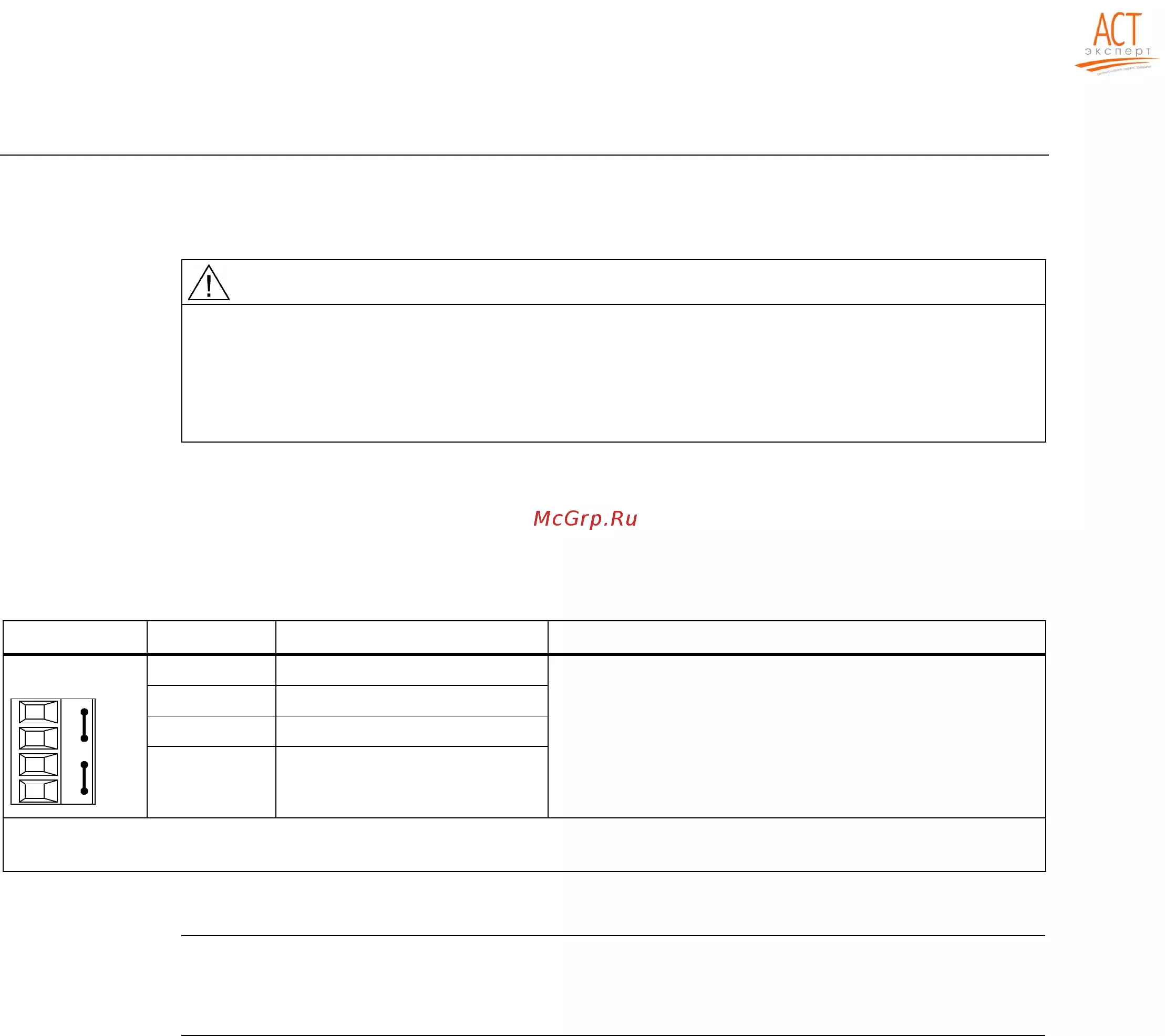

![Siemens 6SL3210-1SE11-3UA0 [212/318] Supplementary system components and encoder system integration](/views2/1587218/page212/bgd4.png)
Supplementary system components and encoder system integration
7.4 Sensor Module Cabinet-Mounted SMC30
Manual
212 Manual, 01/2011, 6SL3097-4AC10-0BP2
DANGER
Risk of electric shock!
Only temperature sensors that meet the safety isolation specifications contained in
EN 61800-5-1 may be connected to terminals "+Temp" and "-Temp".
If these instructions are not complied with, there is a risk of electric shock!
7.4.3.5 X524 Electronics power supply
Table 7- 17 X524 terminal block
Terminal Function Technical specifications
+ Electronic power supply
+ Electronic power supply
M Electronic ground
+
M
M Electronic ground
Voltage: 24 V (20.4 V – 28.8 V)
Current consumption: Max. 0.35 A
Maximum current via jumper in connector: 20 A
Max. connectable cross-section: 2.5 mm²
Type: Screw-type terminal (see Appendix A)
Note
The two "+" or "M" terminals are jumpered in the connector. This ensures that the supply
voltage is looped through.
