High Performance Vector Control/TorqueControl Inverter User Manual
30 Chapter 4 Using Instructions of Operation Panel
Chapter 4 Using Instructions of Operation Panel

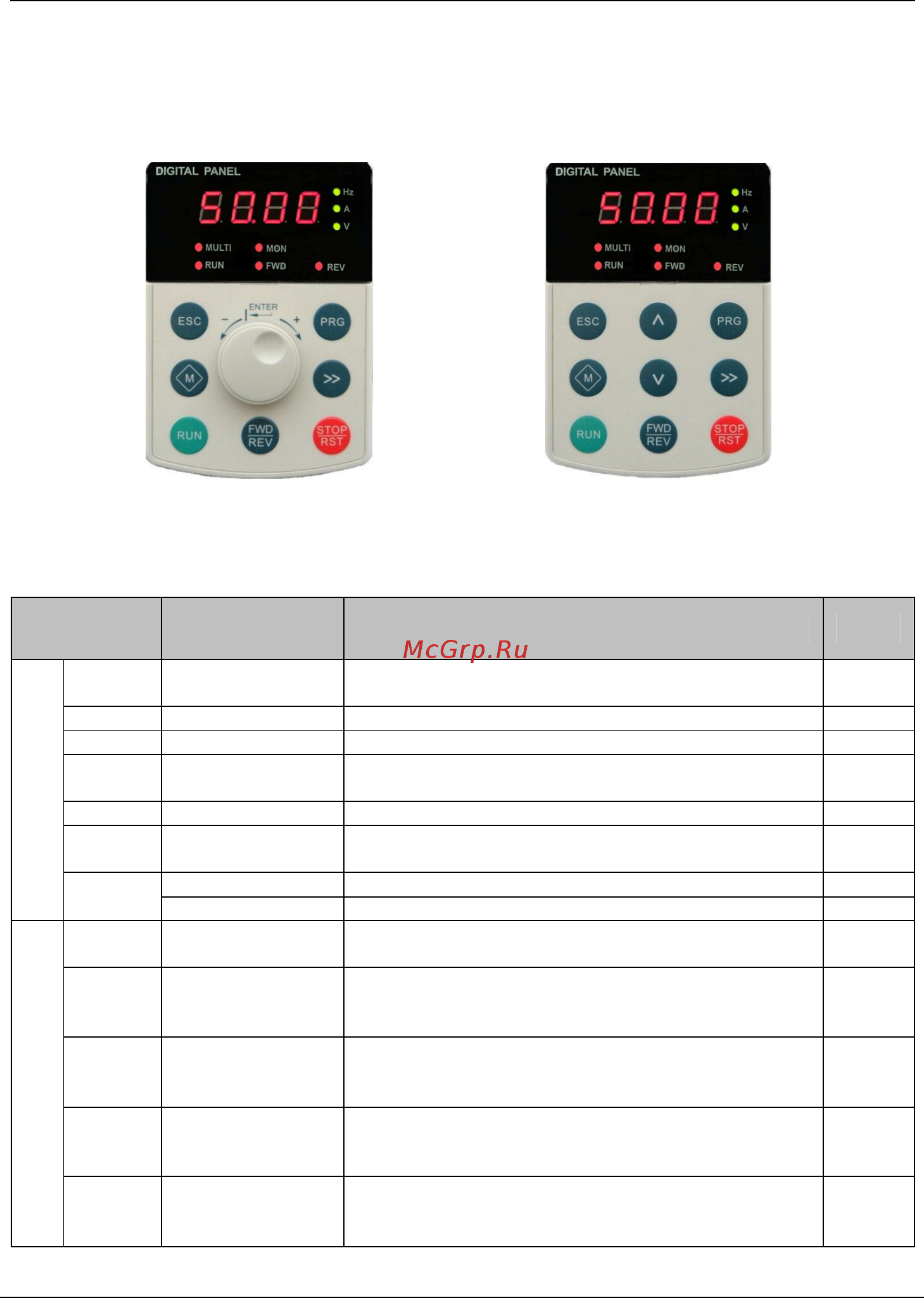

4.1 Introduction to Operation Panel
Shuttle type operation panel (V9-DP01) Key-type operation panel (V9-DP02)
Fig. 4−1 Display unit of operation panel
4.2 Descriptions of Indicators
Symbol of
Indicator
Name Meanings Color
Hz Frequency indicator
On: Current display parameter is running frequency
Flash: Current display parameter is setting frequency
Green
A Current indicator On: Current display parameter is current Green
V Voltage indicator On: Current display parameter is voltage Green
Hz+A
Rotating speed
indicator
On: Current display parameter is rotating speed
Flash: Current display parameter is setting rotating speed
Green
Hz+V % indicator On: Current display parameter is % Green
A+V
Self definable
indicator
On/Flash: Current display parameter is self-defined, see
description of P2 group.
Green
Time indicator On: Current display parameter is time Green
Unit indicator
Hz+A+V
No unit indicator Off: Current display parameter is no unit −
MULTI
Multi-function key
indicator
Refer to table 4-1 for using method of multi function keys and
the meanings of MULTI indicator
Red
MON
Running command
reference mode
indicator
On: Running command is given via operation panel
Off: Running command is given via terminals
Flash: Running command is given via host computer
Red
RUN
Running status
indicator
On: Inverter is running
Off: Inverter has stopped
Flash: Inverter is stopping
Red
FWD
Run forward
indicator
On: In stop status, inverter has run forward command;
In running status, inverter is running forward
Flash: Changing from running forward to running reverse
Red
Status indicator
REV
Run reverse
indicator
On: In stop status, inverter has run reverse command;
In running status, inverter is running reverse
Flash: Changing from running reverse to running forward
Red
