4-76
c) GARP message format

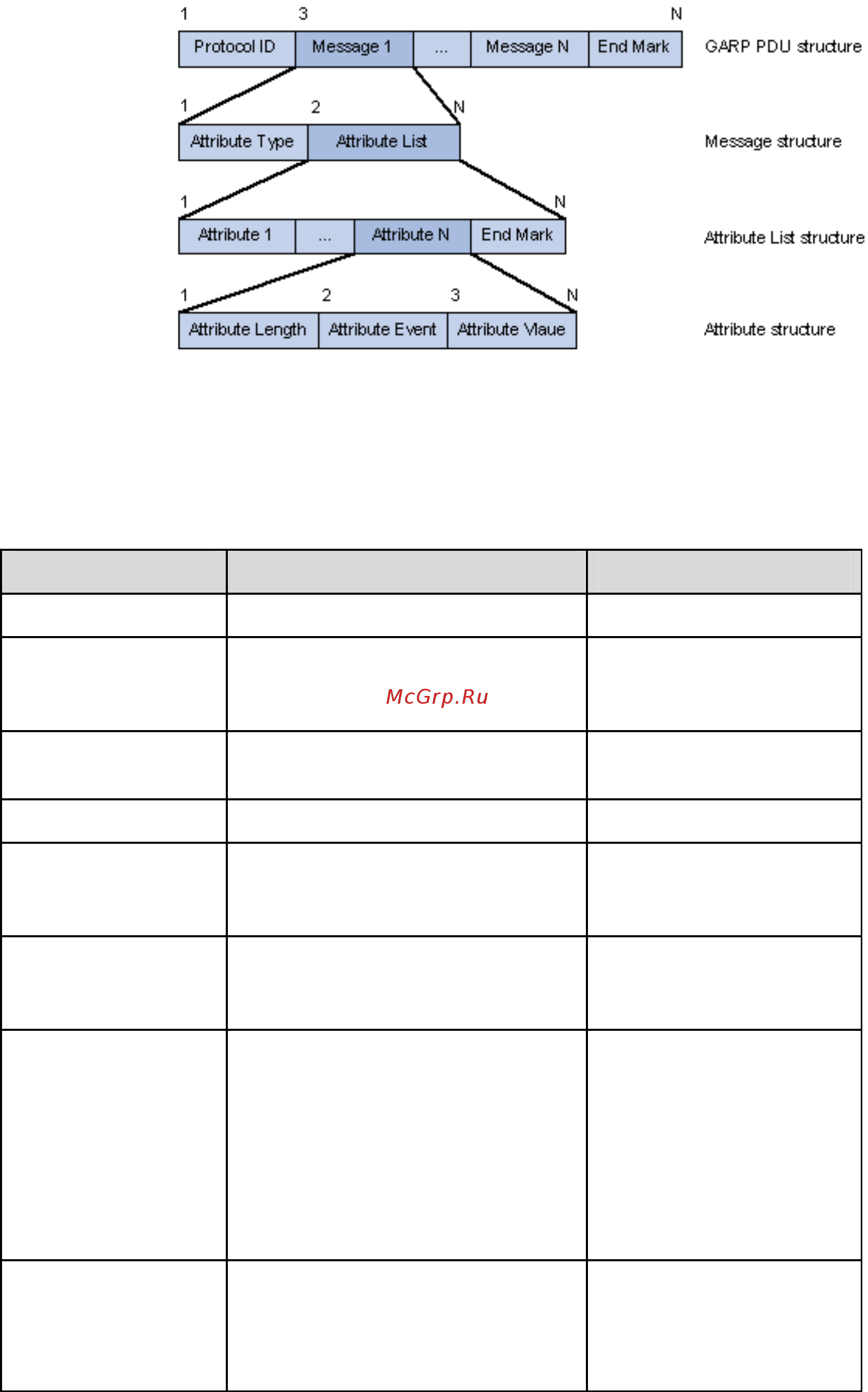

The following figure illustrates the GARP message format.
Figure 1 GARP message format
The following table describes the GARP message fields.
Table 1 Description on the GARP message fields
Field Description Value
Protocol ID Protocol identifier for GARP 1
Message One or multiple messages, each
containing an attribute type and an
attribute list
––
Attribute Type Defined by the concerned GARP
application
0x01 for GVRP, indicating
the VLAN ID attribute
Attribute List Contains one or multiple attributes ––
Attribute Consists of an Attribute Length, an
Attribute Event, and an Attribute
Value
––
Attribute Length Number of octets occupied by an
attribute, inclusive of the attribute
length field
2 to 255 (in bytes)
Attribute Event Event described by the attribute 0: LeaveAll
1: JoinEmpty
2: JoinIn
3: LeaveEmpty
4: LeaveIn
5: Empty
Attribute Value Attribute value VLAN ID for GVRP
If the Attribute Event is
LeaveAll, Attribute Value is
omitted.
