2.3 Port Counters

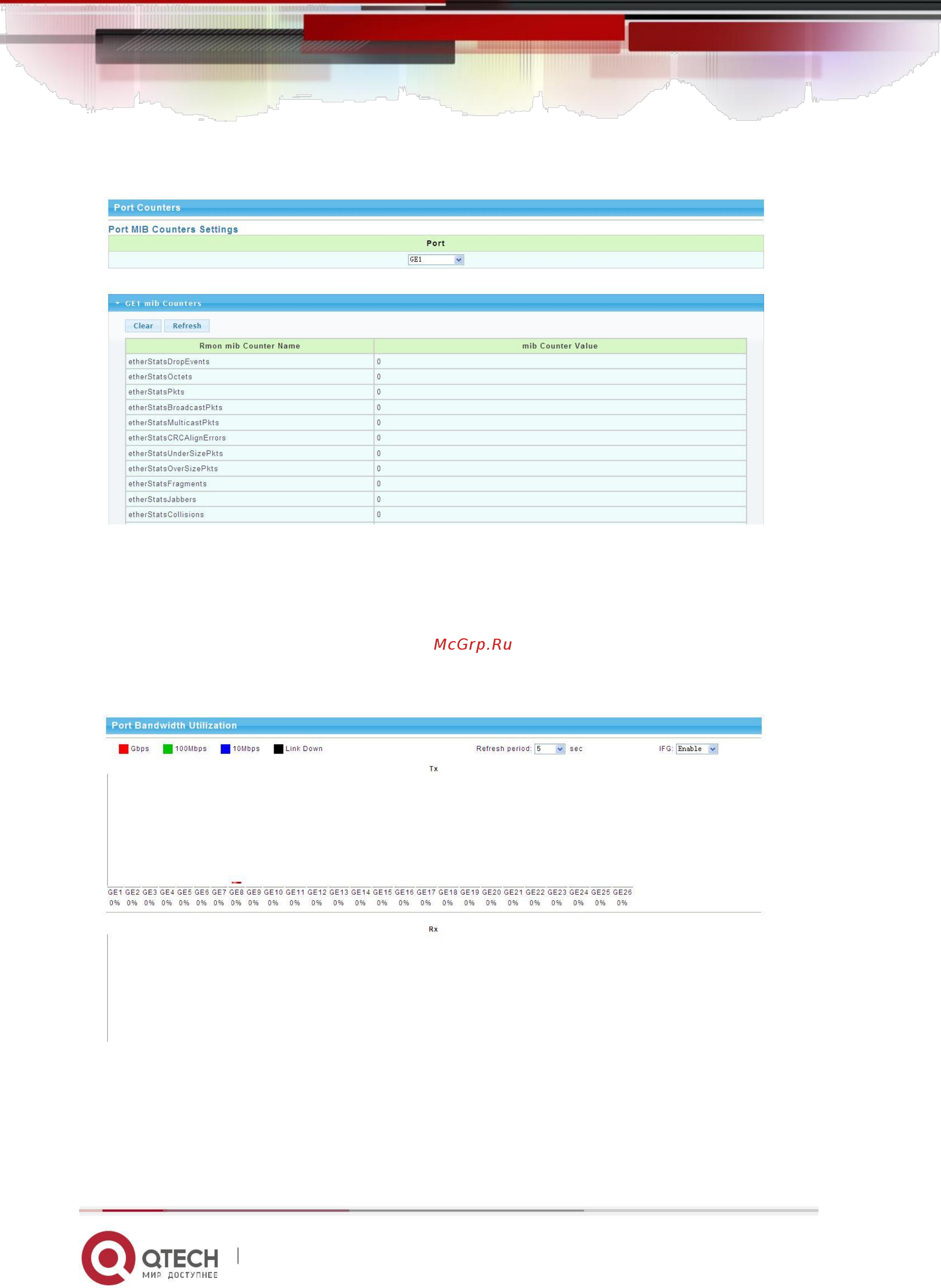

Picture 2.3.1 Port Counters

The above picture shows switch port statistics. Users can check the sent/received bytes,sent/received

packets, wrongly sent/received packets. If there are too many wrong packets, it suggests the port has

very poor working performance, the user need to examine the connection of network cable or the partner

network card.

The current software version doesn’t support real-time statistics refresh, please click “Refresh” button to

get new statistics.

2.4 Port Status(Port Bandwidth Statistics)

Picture 2.4.1 Port Bandwidth Statistics

This page shows port bandwidth status. Users can check egress/ingress bandwidth in this page,including

1000Mbps, 100Mbps, 10Mbps.
