2.5 Link Aggregation

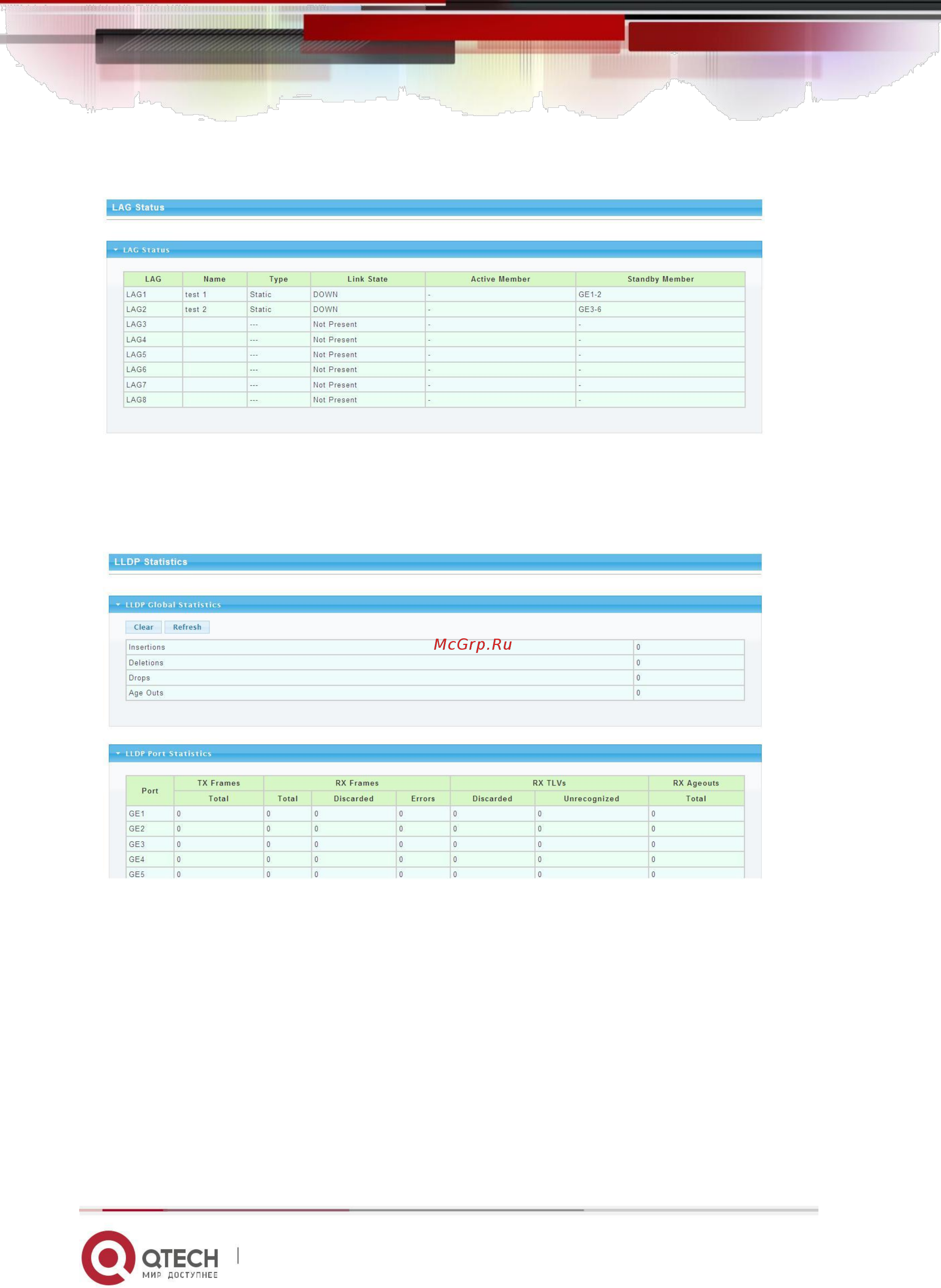

Picture 2.5.1 Link Aggregation

In above Link Aggregation page, user can check the port aggregation information. Like

aggregator group(LAG), link state, aggregator group member state(active/standby).

2.6 LLDP Statistics

Picture 2.6.1 LLDP Statistics

LLDP information can be checked in above page. When enable the LLDP(Link Layer

Discovery Protocol ) function, LLDP information of switch ports can be checked here.
