USER MANUAL

2.7 IGMP Statistics

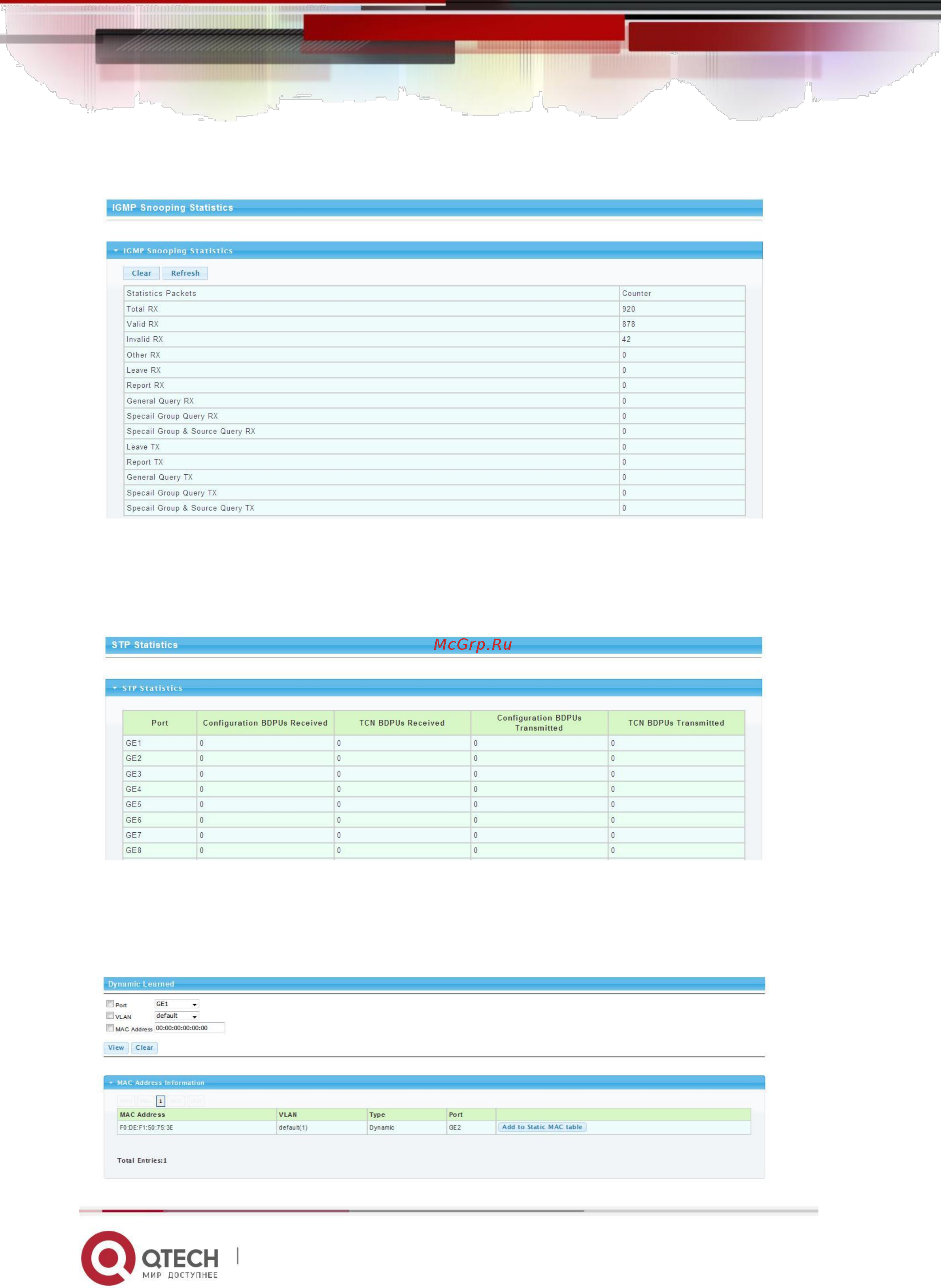

Picture 2.7.1 IGMP Statistics

When the IGMP snooping function is enabled, IGMP information can be checked in

above page.

2.8 STP Statistics

Picture 2.8.1 STP Statistics

In above STP statistics page, users can check the BPDU packets of every port and

every link aggregation STP.
