USER MANUAL
21
4.9 Dynamic MAC Address Configuration

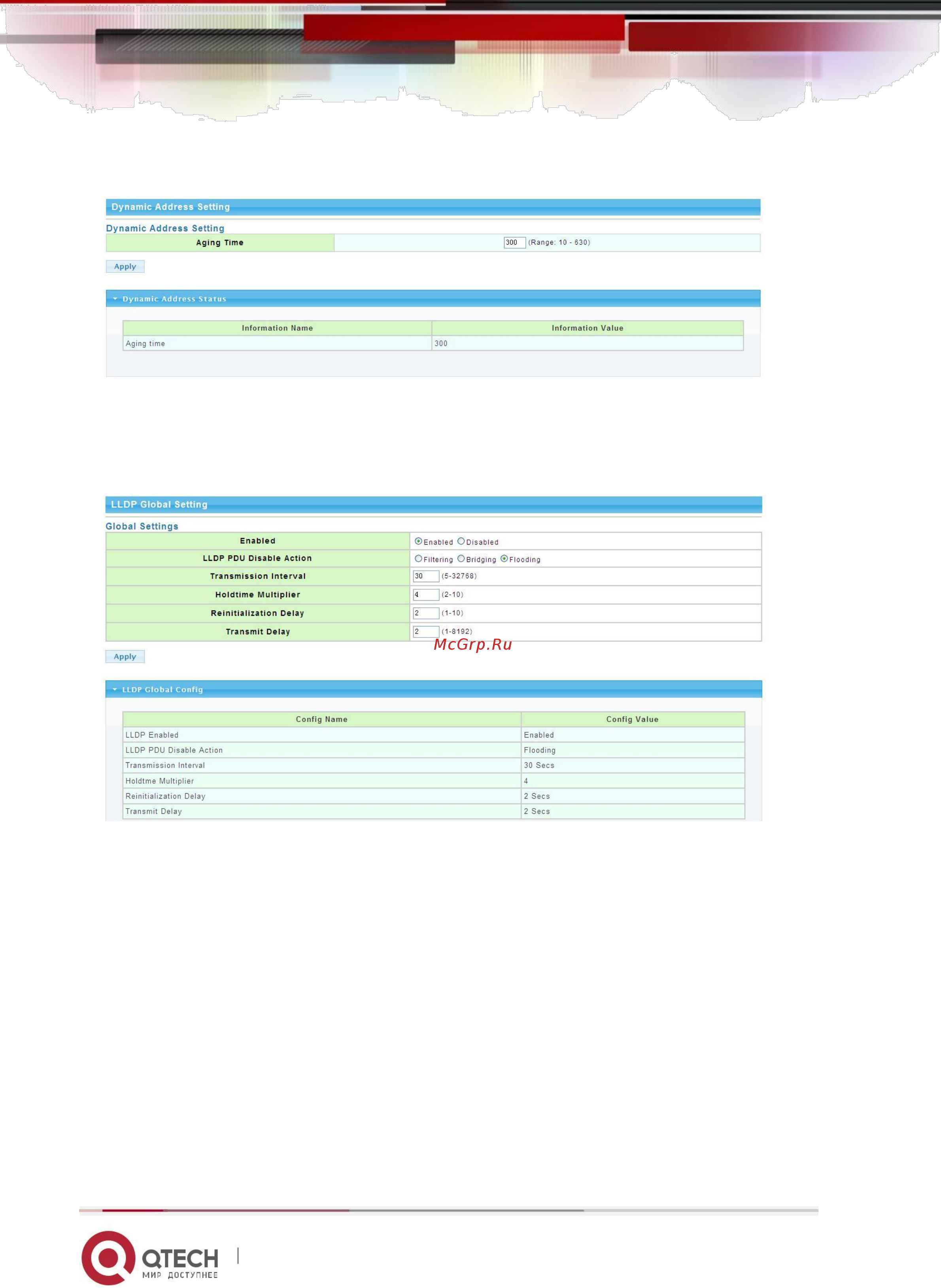

Picture 4.9.1 Dynamic MAC Address Configuration
In above dynamic address setting page, users can check the aging time of MAC
address.
4.10 LLDP Configuration
Picture 4.10.1 LLDP Configuration
QSW-3410 switch support LLDP(Link Layer Discovery Protocol), which can define
switch capacity, management address, device tags and port tags as
different(TLV(type/length/value) and save them in LLDPDU (Link Layer Discovery
Protocol Data Unit). These information will be released to the direct-connected
neighbor device, neighbor devices will save these information based on
MIB(Management Information Base) . These information will be used for network
management system examination or judge link communication condition.
LLDP information can be configured in above page, including transmission interval,hold
time Multiplier,retransmission delay and transmission delay.
Enable LLDP or Disable LLDP can be configured. Users can also configure the
information transmitted to neighbor devices, like port description, system name, system
description, system property and management address.
www.qtech.ru
