USER MANUAL
8
PART TWO WEB CONFIGURATION GUIDE
Chapter 1 User Login
QSW-3410 smart switch adopt Web-based interface management, the default IP is 192.168.255.1.
Please make sure the IP address of PC is in the same network segment with that of switch,or the PC
can’t access to manage the switch. After the setting of IP address, please input 192.168.255.1 in the
browser to access the configuration interface of switch.
The Web management interface consists of five parts, which are switch status, basic
configuration, advanced configuration, network security, system maintenance.

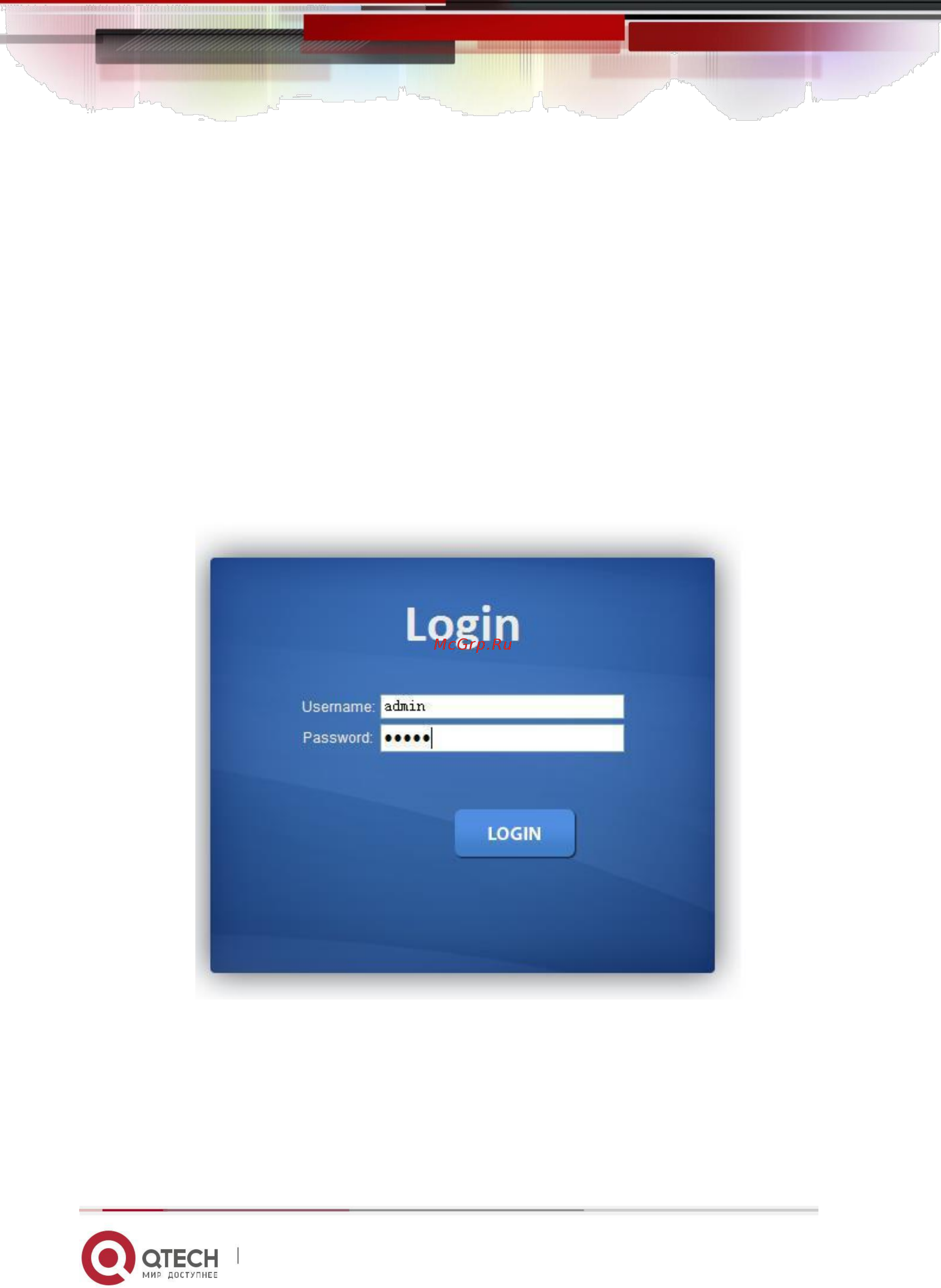

Picture 1.1.1 Login Page
Enter user password in the above login page, the default password is admin. The system only
support single user login, other logins will be refused until the user logs out.
If IP address conflict occurs, it suggests the latest user didn’t log out successfully. Please reboot the
device or try to log in again180s later.
