QTECH Software Configuration Manual
8-102
other interfaces may be a BDR or DRother.
· After DR/BDR election and then a new router joins, it cannot become the DR immediately
even if it has the highest priority on the network.
· The DR may not be the router with the highest priority in a network, and the BDR may not
be the router with the second highest priority.
8.1.5 OSPF Packet Formats
OSPF packets are directly encapsulated into IP packets. OSPF has the IP protocol number 89. The OSPF
packet format is shown below (taking a LSU packet as an example).

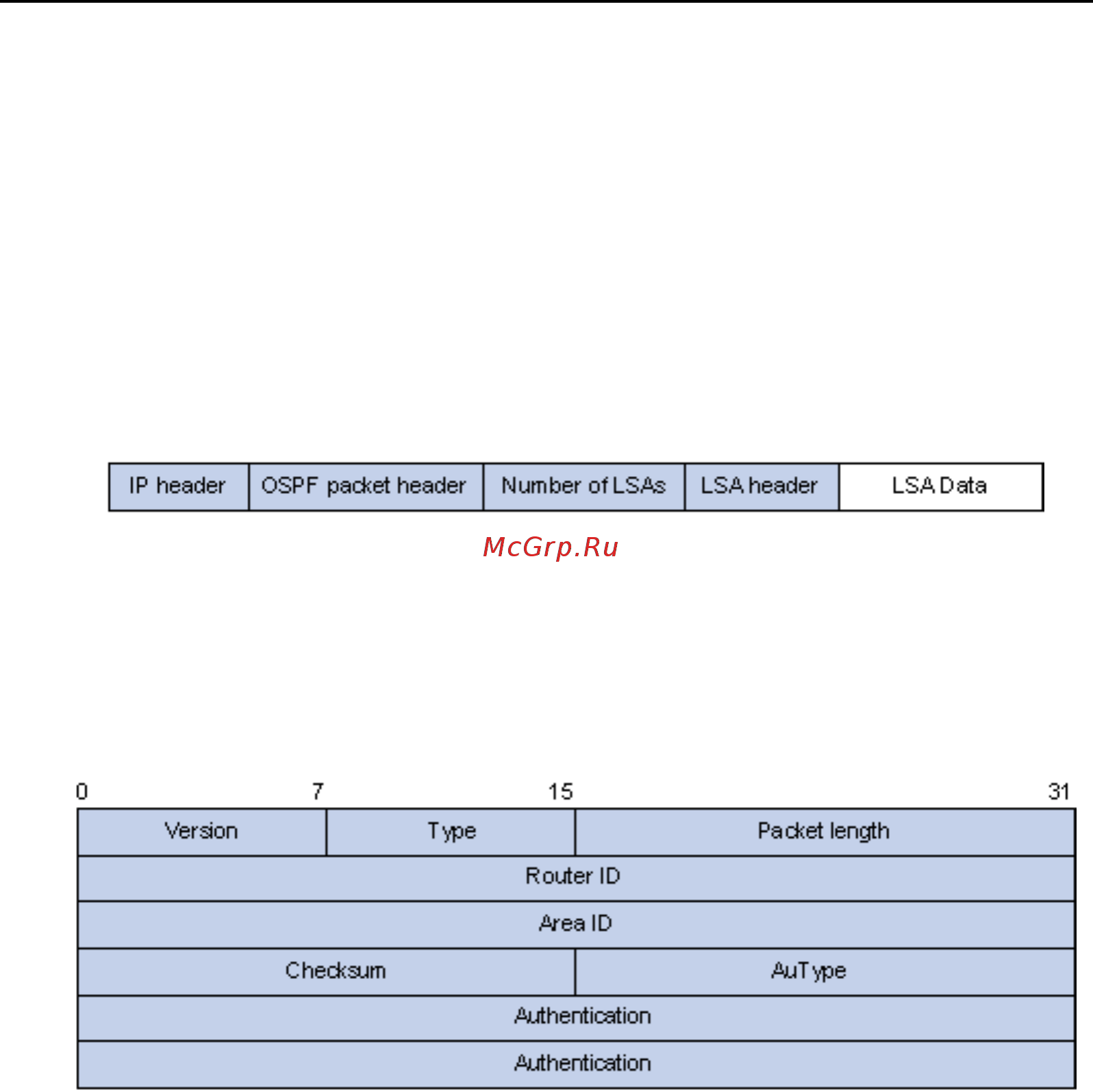

OSPF packet format
8.1.5.1 OSPF packet header
OSPF packets are classified into five types that have the same packet header, as shown below.
OSPF packet header
· Version : OSPF version number, which is 2 for OSPFv2.
· Type : OSPF packet type from 1 to 5, corresponding with hello, DD, LSR, LSU and LSAck respectively.
· Packet length : Total length of the OSPF packet in bytes, including the header.
· Router ID : ID of the advertising router.
· Area ID : ID of the area where the advertising router resides.
· Checksum : Checksum of the message.
· Autype : Authentication type from 0 to 2, corresponding with non-authentication, simple (plaintext)
authentication and MD5 authentication respectively.
· Authentication : Information determined by authentication type. It is not defined for authentication type 0.
It is defined as password information for authentication type 1, and defined as Key ID, MD5 authentication
data length and sequence number for authentication type 2.
& Note : MD5 authentication data is added following an OSPF packet rather than
contained in the Authentication field.
8.1.5.2 Hello packet
A router sends hello packets periodically to neighbors to find and maintain neighbor relationships and to
elect the DR/BDR, including information about values of timers, DR, BDR and neighbors already known. The format
is shown below :
