Qtech QSW-3900-48-SFP-DC [44/245] Forwarding and filtering
![Qtech QSW-3900-48-SFP-DC [44/245] Forwarding and filtering](/views2/1596601/page44/bg2c.png)
QTECH Software Configuration Manual
3-43

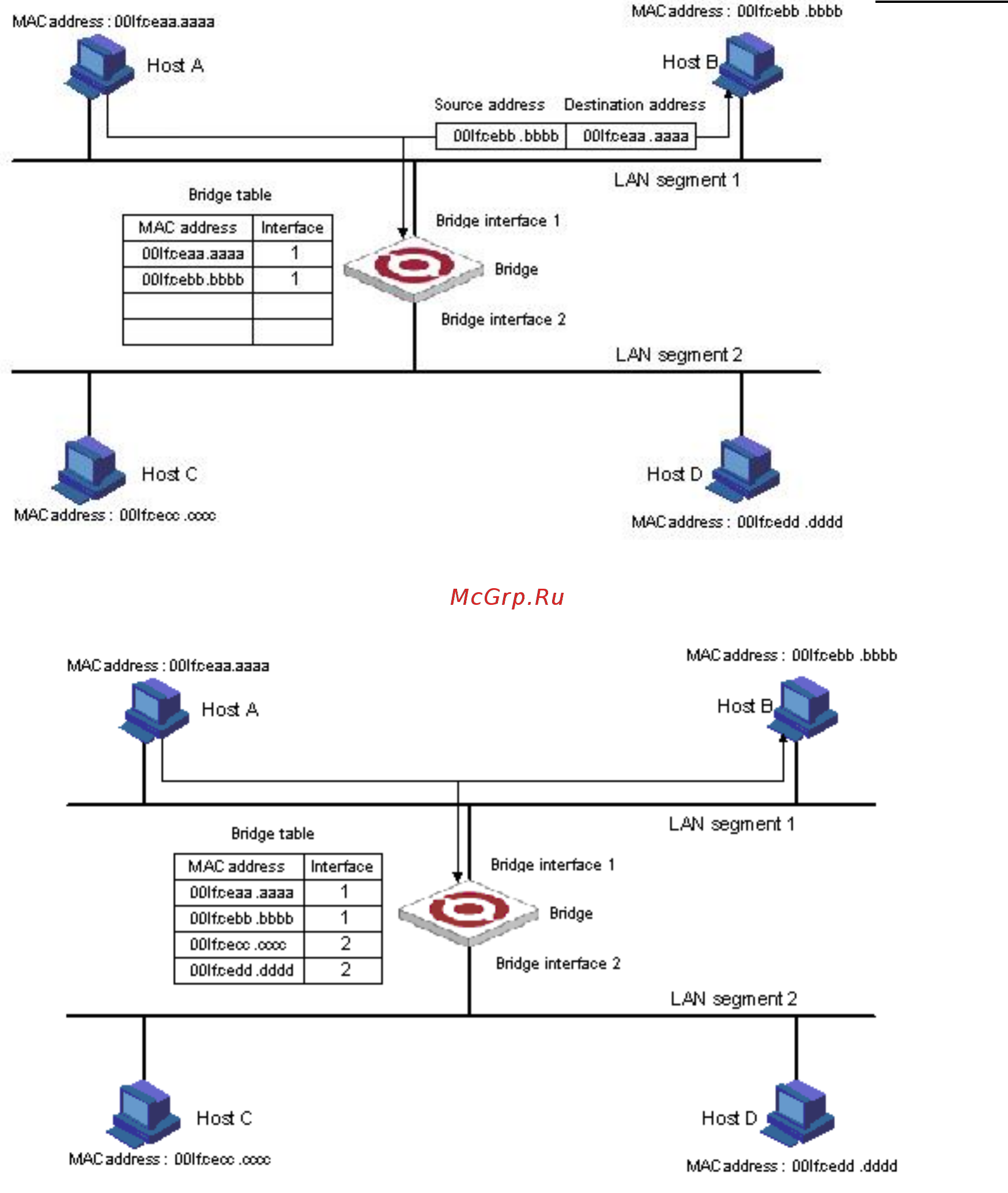

Figure 3 The bridge determines that Host B is also attached to interface 1
Finally, the bridge obtains all the MAC-interface mappings (assume that all hosts are in use), as shown in
Figure 4.
Figure 4 The final bridge table
3.2.2 Forwarding and filtering
The bridge makes data forwarding or filtering decisions based on the following scenarios :
When Host A sends an Ethernet frame to Host C, the bridge searches its bridge table and finds out that Host
C is attached to bridge interface 2, and forwards the Ethernet frame out of bridge interface 2, as shown in II. Figure 5.
