QTECH Software Configuration Manual
8-105
· LS type : Type number of the LSA to be requested. Type 1 for example indicates the Router LSA.
· Link State ID : Determined by LSA type.
· Advertising Router : ID of the router that sent the LSA.
8.1.5.5 LSU packet
LSU (Link State Update) packets are used to send the requested LSAs to peers, and each packet carries a
collection of LSAs. The LSU packet format is shown below.

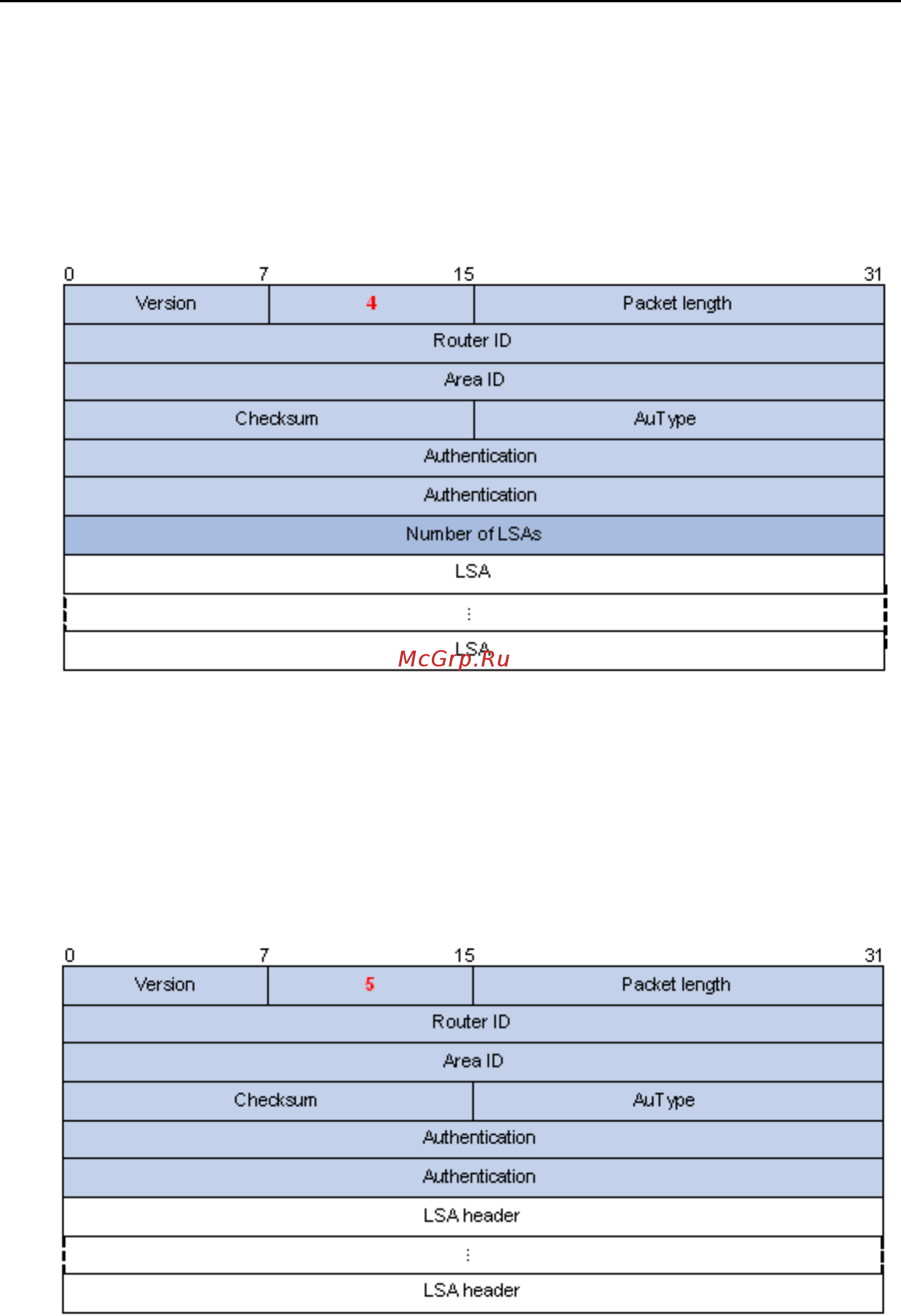

LSU packet format
8.1.5.6 LSAck packet
LSAack (Link State Acknowledgment) packets are used to acknowledge received LSU packets, contents
including LSA headers to describe the corresponding LSAs. Multiple LSAs can be acknowledged in a single Link
State Acknowledgment packet. The following figure gives its format.
LSAck packet format
8.1.5.7 LSA header format
All LSAs have the same header, as shown in the following figure.
