QTECH Software Configuration Manual
20-229
Type Description
Major-Fault
Assistant edge node initiates Major-Fault packets to notify the edge node of
a failure when a link of primary ring between edge node and assistant edge
node is torn down.
20.4 Typical ERRP Networking
Here are several typical networking applications.
20.4.1 Single ring

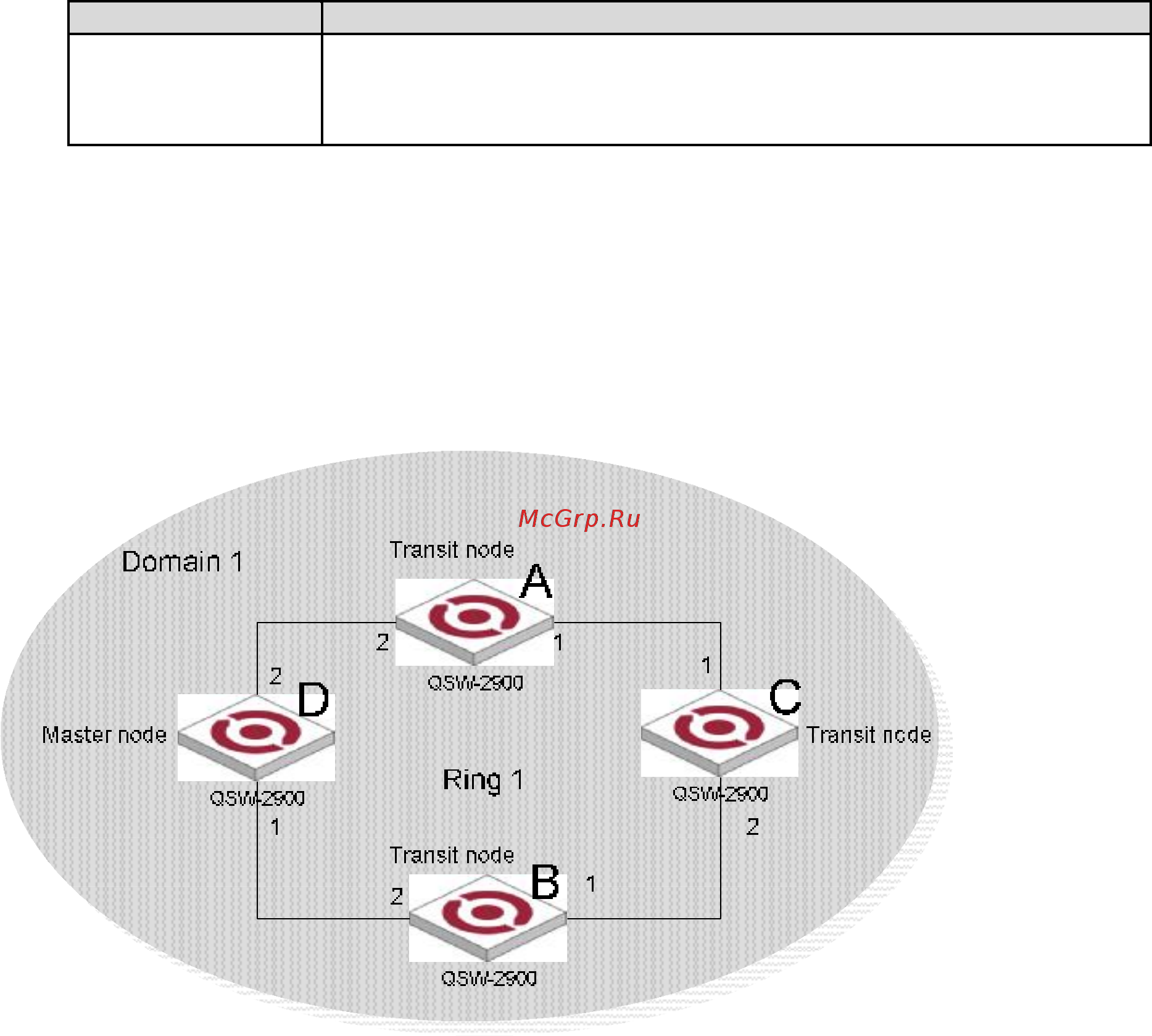

Figure 2 Single ring
There is only a single ring in the network topology. In this case, you only need to define an ERRP domain.
