QTECH Software Configuration Manual
8-103

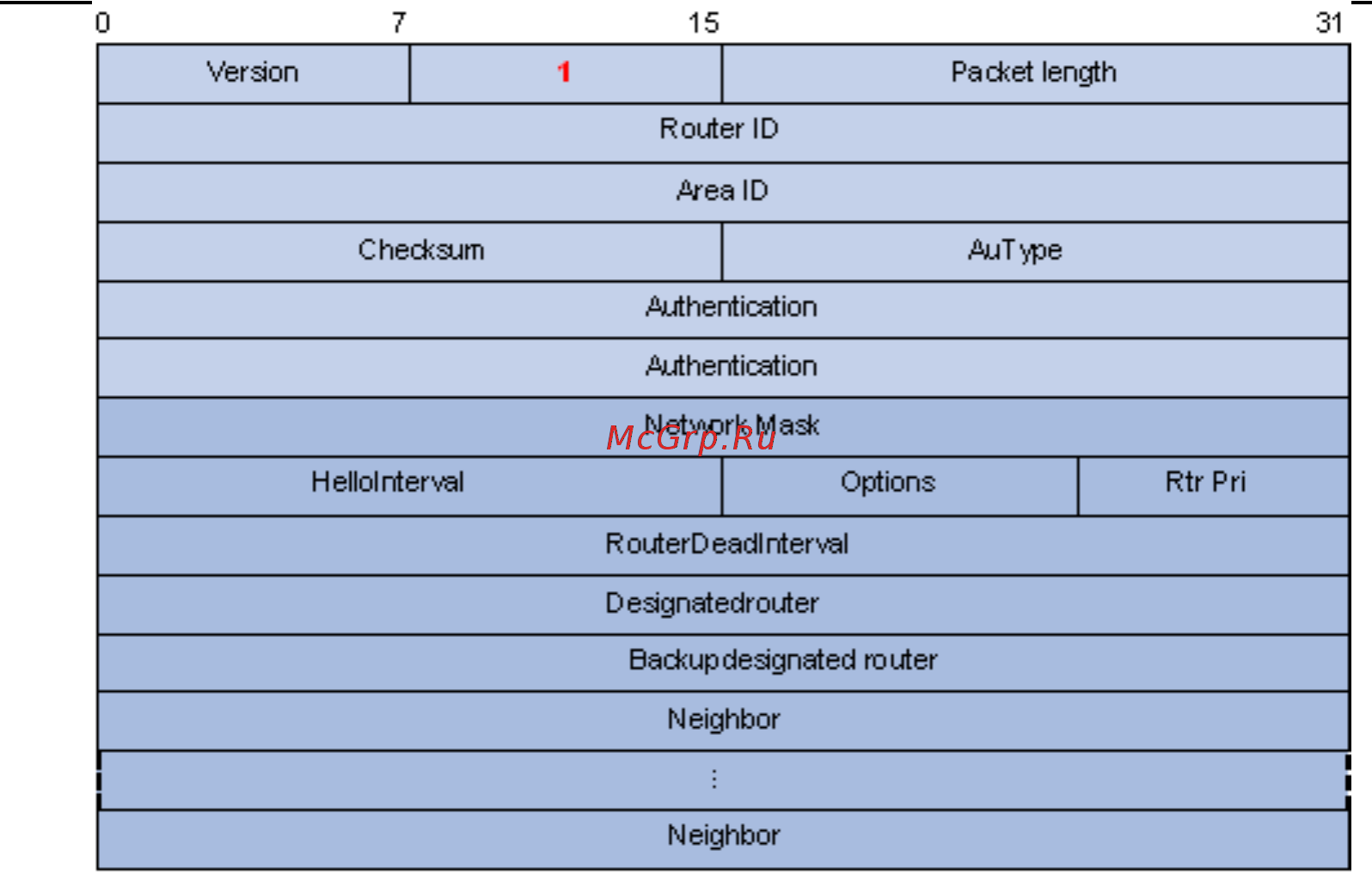

Hello packet format
Major fields :
· Network Mask : Network mask associated with the router’s sending interface. If two routers have different
network masks, they cannot become neighbors.
· HelloInterval : Interval for sending hello packets. If two routers have different intervals, they cannot
become neighbors.
· Rtr Pri : Router priority. A value of 0 means the router cannot become the DR/BDR.
· RouterDeadInterval : Time before declaring a silent router down. If two routers have different time values,
they cannot become neighbors.
· Designated Router : IP address of the DR interface.
· Backup Designated Router : IP address of the BDR interface
· Neighbor : Router ID of the neighbor router.
8.1.5.3 DD packet
Two routers exchange database description (DD) packets describing their LSDBs for database
synchronization, contents in DD packets including the header of each LSA (uniquely representing a LSA). The LSA
header occupies small part of an LSA to reduce traffic between routers. The recipient checks whether the LSA is
available using the LSA header.
The DD packet format :
