QTECH Software Configuration Manual
3-45

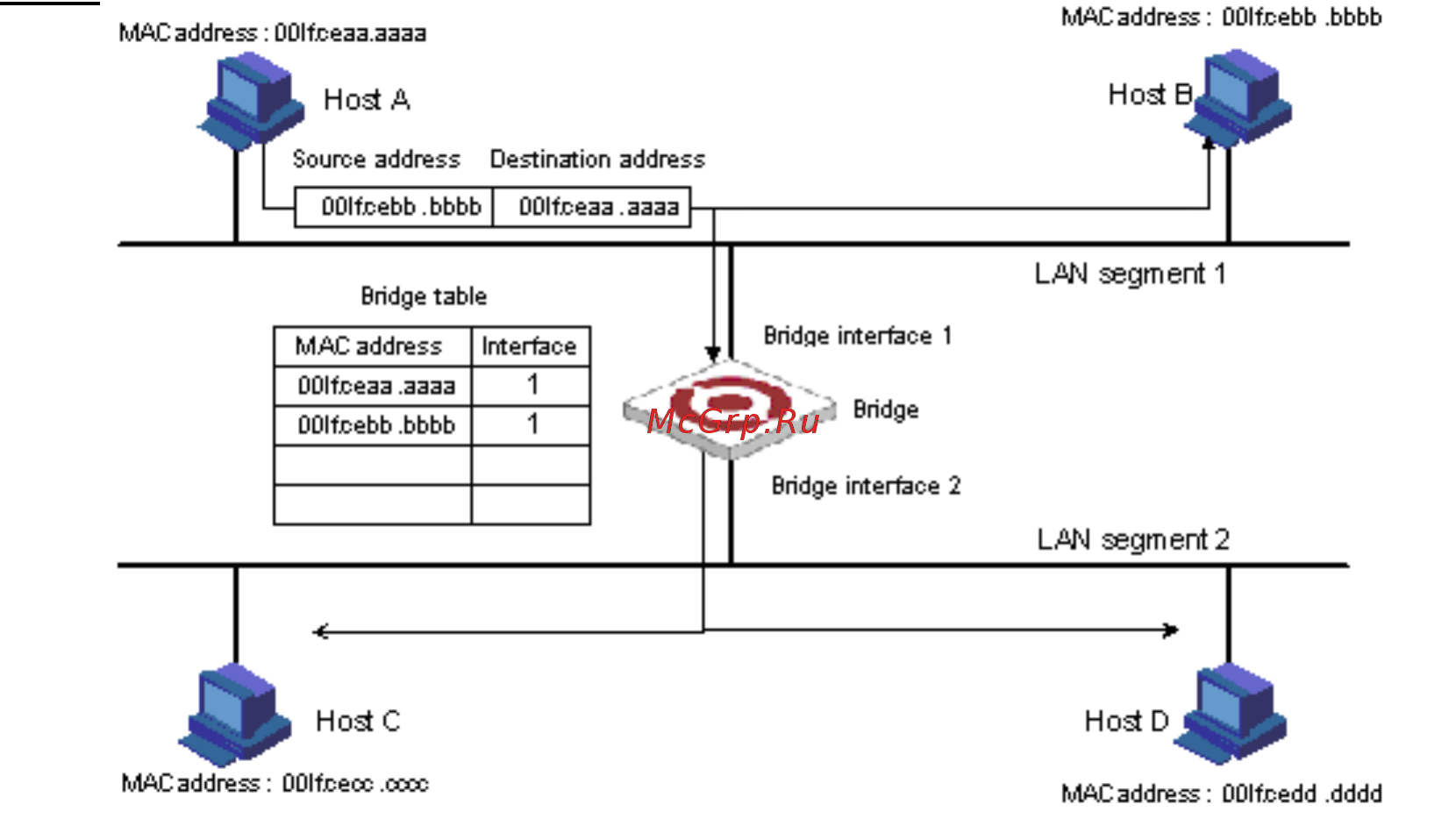

Figure 7 The proper MAC-to-interface mapping is not found in the bridge table
& Note :
When a bridge receives a broadcast or multicast frame, it forwards the frame to all interfaces other
than the receiving interface.
3.3 Brief introduction of MAC address table management
System maintains a MAC address table which is used to transfer packet. The item of this table contains
MAC address, VLAN ID and interface number of packet entering. When a packet entering switch, switch will look
up the MAC address tablke according to destination MAC and VLAN ID of the packet. If it is found out, send packet
according to the specified interface in the item of MAC address table, or the packet will be broadcasted in this VLAN.
In SVL learning mode, look up the table only according to MAC in packet and neglect VLAN ID.
System possesses MAC address learning. If the source MAC address of the received packet does not existed
in MAC address table, system will add source MAC address, VLAN ID and port number of receiving this packet as a
new item to MAC address table.
MAC address table can be manual configured. Administrator can configure MAC address table according to
the real situation of the network. Added or modified item can be static, permanent, blackhole and dynamic.
System can provide MAC address aging. If a device does not receive any packet in a certain time, system
will delete related MAC address table item. MAC address aging is effective on (dynamic) MAC address item which
can be aging by learning or user configuration.
3.4 MAC address table management list
MAC address table management
· Configure system MAC address aging time
· Configure MAC address item
· Enable/disable MAC address learning
· Modify MAC address learning mode
3.5 Configure system MAC address aging time
Use mac-address-table age-time command in global configuration mode to configure MAC address aging
