QTECH QSW-2100-12T Configuration Guide (CLI)
5 IP services
146
A large number of users must obtain their own IP address dynamically through DHCP
service.
Only the minority of hosts on the network need fixed IP addresses, most of hosts have no
requirement for fixed IP address.
The QSW-2100-12T can work as the DHCP server to assign dynamic IP addresses for clients,
as shown in Figure 5-7.

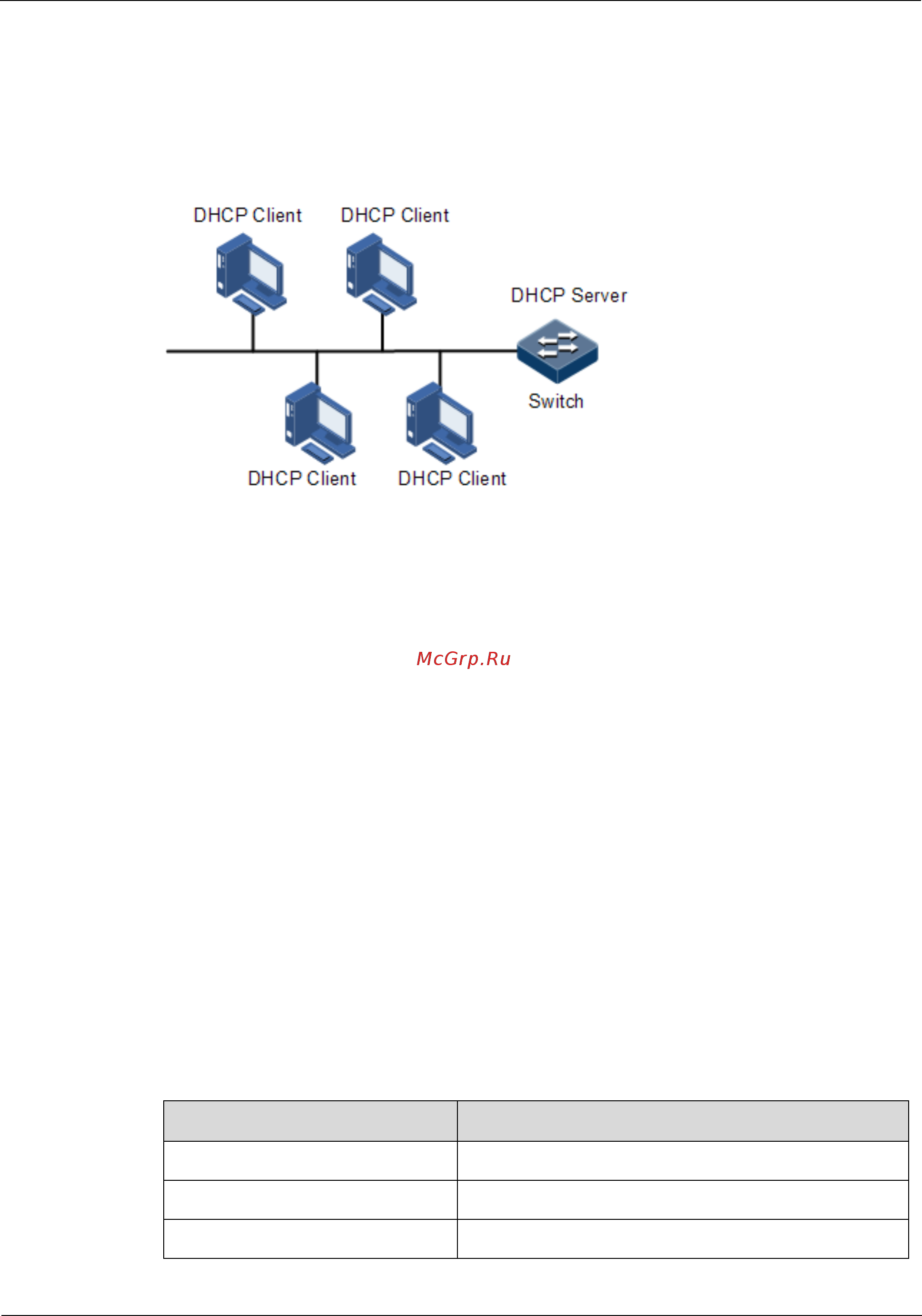

Figure 5-7 DHCP Server networking
After a DHCP client obtains the IP address from the DHCP server, it cannot use the IP address
permanently but in a fixed period, which is called the leased period. You can specify the
duration of the leased period.
5.5.2 Preparing for configurations
Scenario
DHCP works in client/server mode, so a specified server assigns network addresses and
transmits configured parameters to hosts on the network.
You need to configure DHCP Server when using QSW-2100-12T to provide dynamic IP
address for other devices.
Prerequisite
DHCP Server is exclusive to DHCP Client or DHCP Snooping. Namely, you cannot configure
DHCP Client or DHCP Snooping on the device to be configured with DHCP Server.
5.5.3 Default configurations of DHCP Server
Default configurations of DHCP Server are as below.
Function
Default value
Global DHCP Server
Disable
IP port DHCP Server
Disable
Address pool
N/A
