QTECH QSW-2100-12T Configuration Guide (CLI)
2 Basic configurations
5

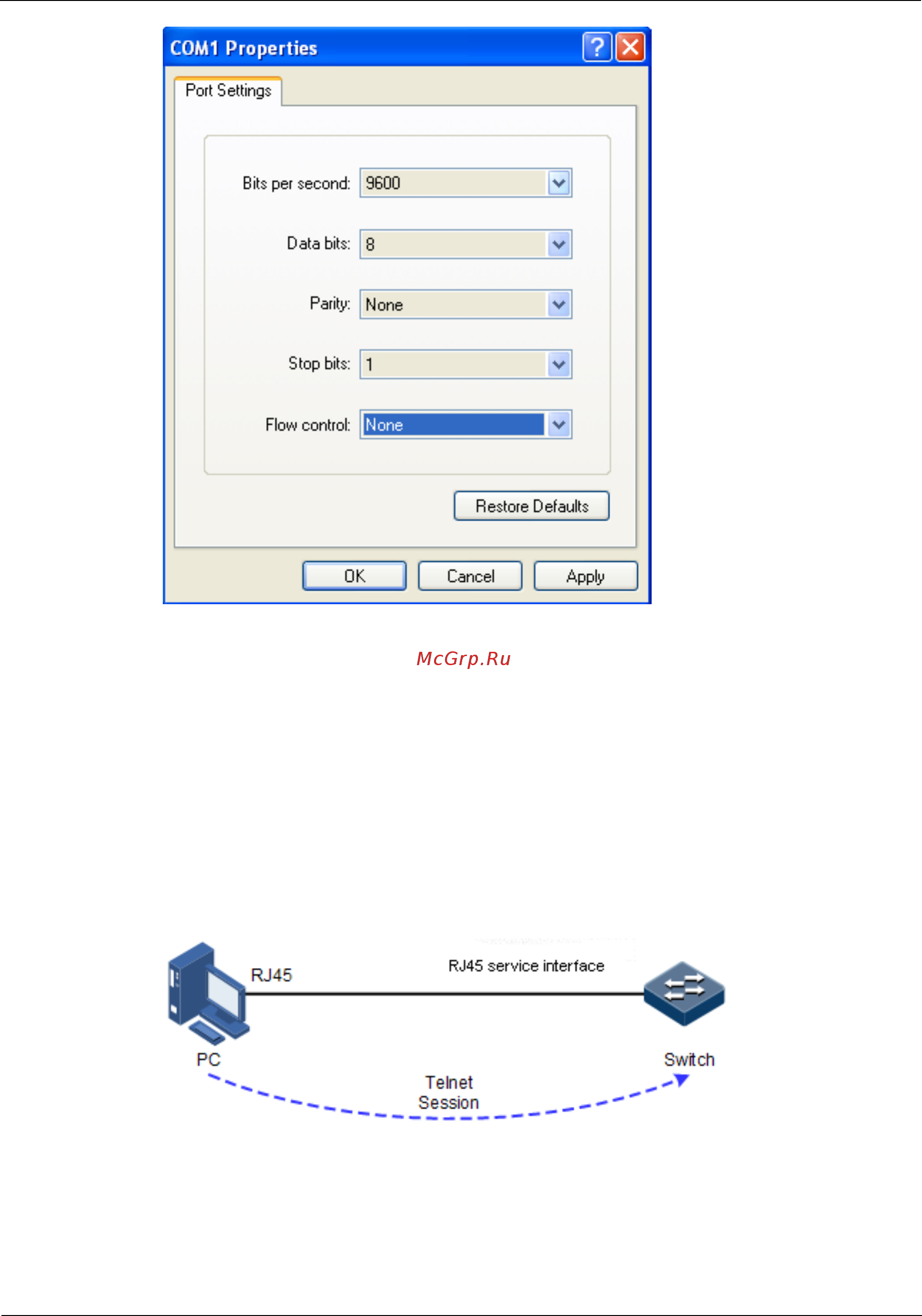

Figure 2-2 Configuring communication parameters in Hyper Terminal
2.1.3 Accessing through Telnet
Use a PC to log in to the QSW-2100-12T remotely through Telnet, log in to an QSW-2100-
12T from the PC at first, and then Telnet other QSW-2100-12T devices on the network. You
do not need to connect a PC to each QSW-2100-12T.
Telnet services provided by the QSW-2100-12T are as below.
Telnet Server: run the Telnet client program on a PC to log in to the QSW-2100-12T, and
conduct configuration and management. As shown in Figure 2-3, the QSW-2100-12T is
providing Telnet Server service at this time.
Figure 2-3 Networking with device as Telnet server
Before accessing the QSW-2100-12T through Telnet, you need to log in to the QSW-2100-
12T through the Console interface and start the Telnet service. Configure the QSW-2100-12T
that needs to start Telnet service.
