Specifi cations
16 690 07 Rev. -- KohlerEngines.com

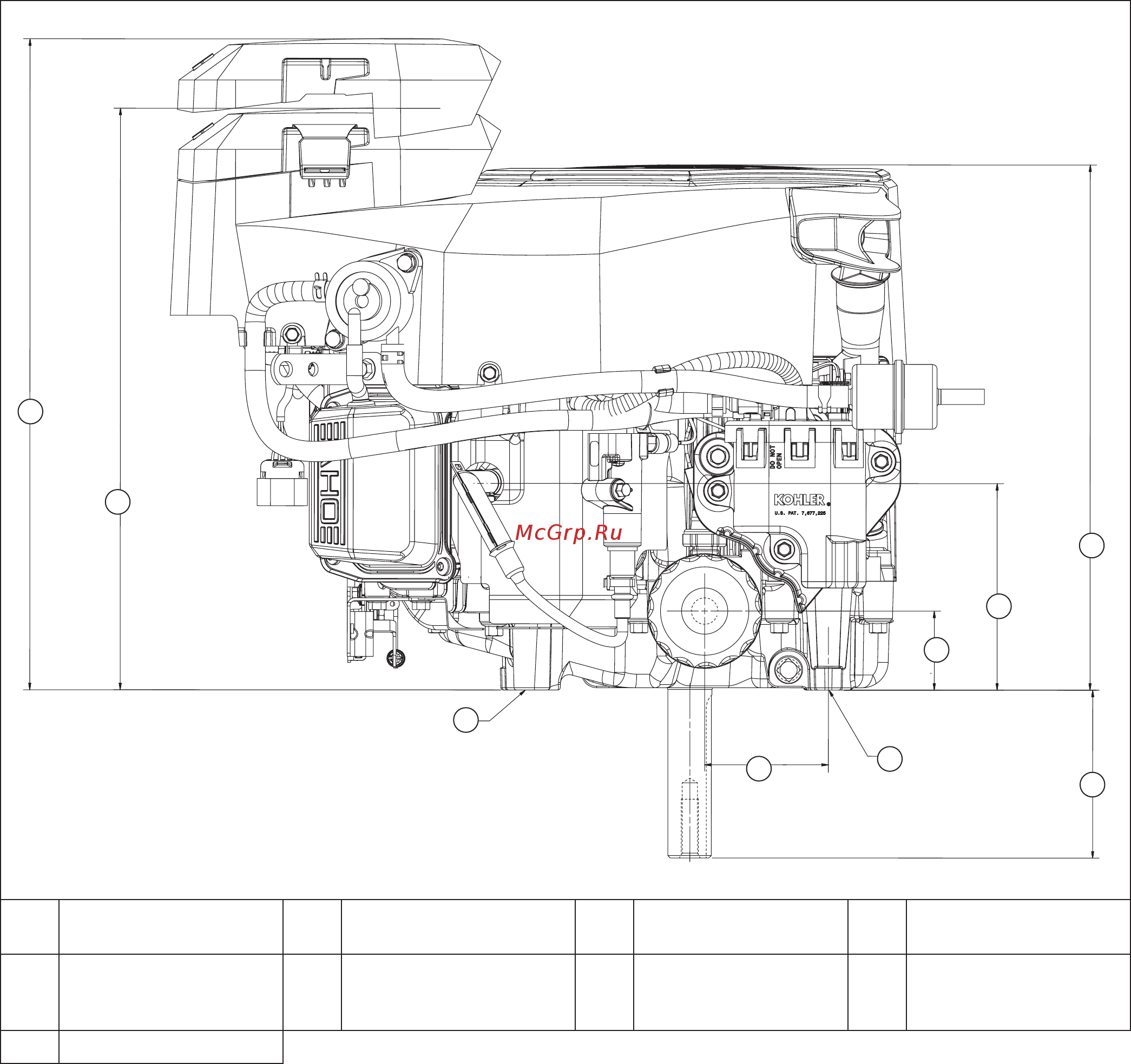

Engine Dimensions-with Low Profi le Air Cleaner-Oil Filter Side
A
B
C
D
E
F
G
H
I
A
422.3 mm (16.63 in.)
Air Cleaner Removal
B
377.3 mm (14.85 in.)
Top of Air Cleaner
C
Engine Mounting
Surface
D
80.3 mm (3.16 in.)
Oil Filter
E Mounting Hole "A" F 108.9 mm (4.29 in.) G
51.2 mm (2.02 in.)
Oil Filter
H
134.0 mm (5.28 in.)
Spark Plug Center
Line
I 340.7 mm (13.41 in.)
