8
Specifi cations
KohlerEngines.com 16 690 07 Rev. --

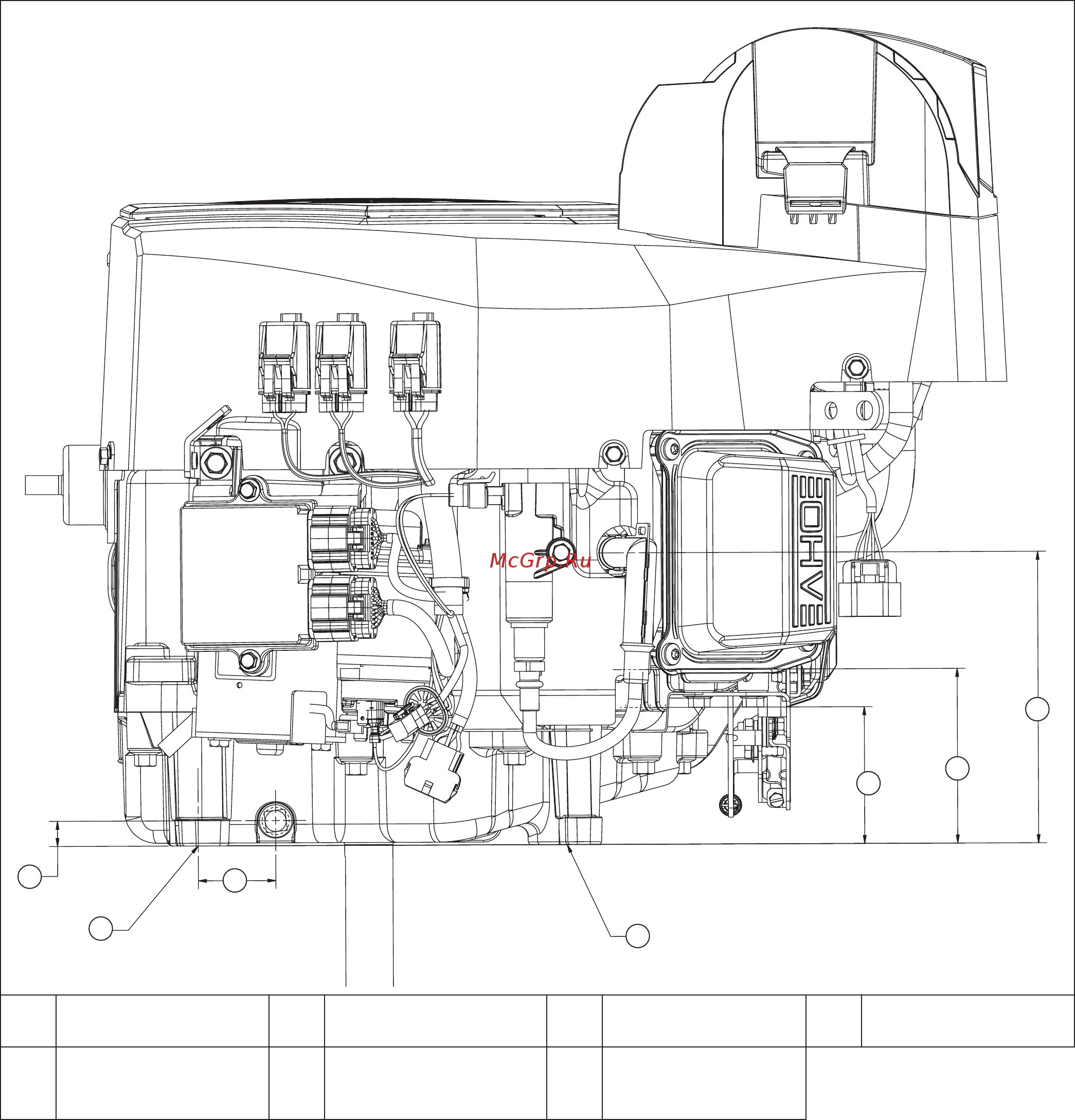

Engine Dimensions-with Heavy-Duty Air Cleaner-Starter Side
A
B
C
D
E
F
G
A 13.2 mm (0.52 in.) B Mounting Hole "A" C 40.8 mm (1.61 in.) D
Engine Mounting
Surface
E
72.0 mm (2.83 in.)
Exhaust Port #2
F
92.0 mm (3.62 in.)
Exhaust Port #1
G
153.5 mm (6.04 in.)
Spark Plug Center
Line
