Specifi cations
16 690 07 Rev. -- KohlerEngines.com

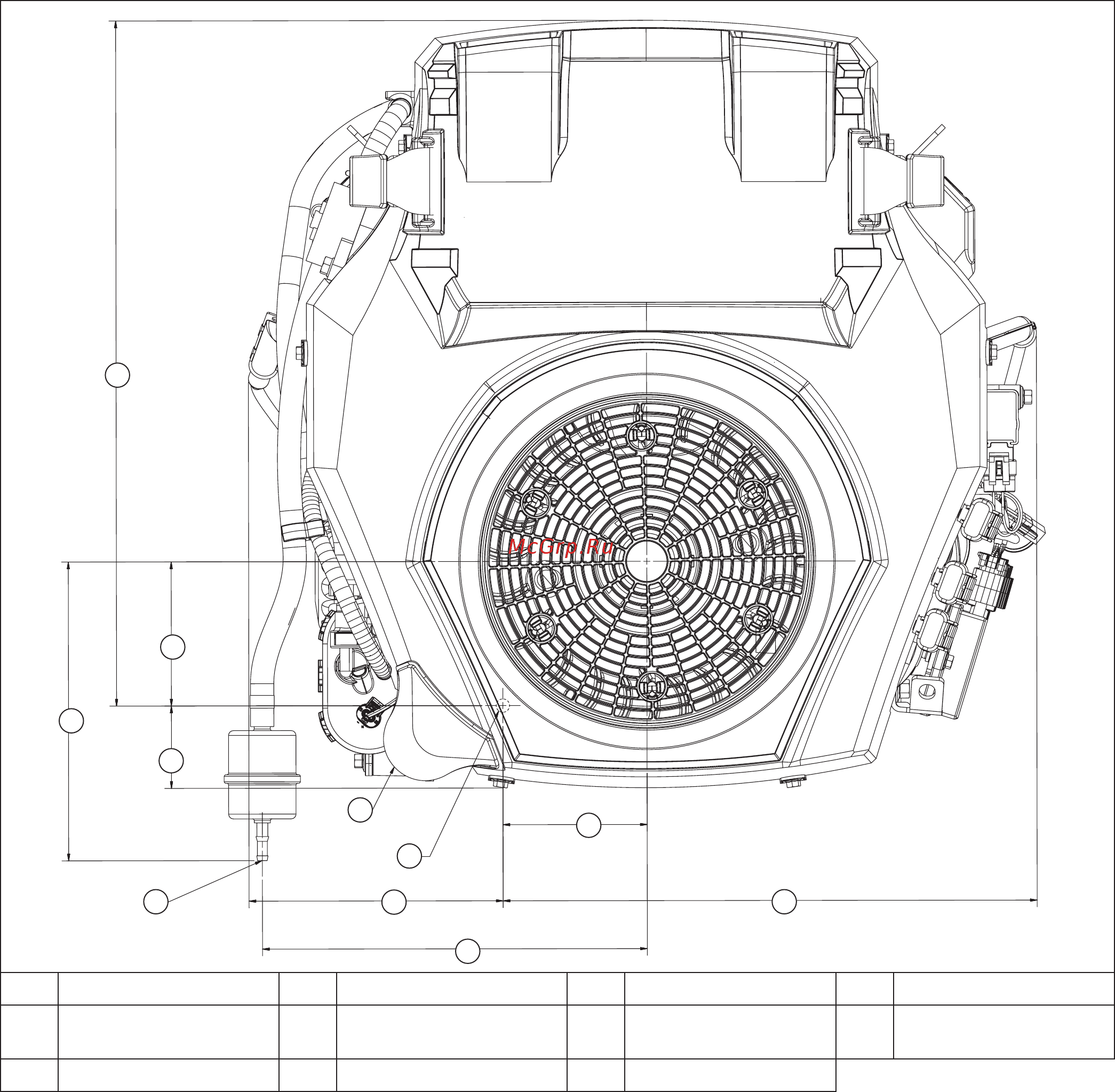

Engine Dimensions-with Heavy-Duty Air Cleaner-Flywheel Side
F
E
G
H
I
K
A
B
D
C
J
A 426.9 mm (16.81 in.) B 186.2 mm (7.33 in.) C 89.8 mm (3.54 in.) D 51.3 mm (2.02 in.)
E
Fuel Line Connection
Point
F
Oil Fill and Dipstick
(Yellow)
G Mounting Hole "A" H 158.3 mm (6.23 in.)
I 239.8 mm (9.44 in.) J 89.8 mm (3.54 in.) K 332.7 mm (13.10 in.)
