6
Specifi cations
KohlerEngines.com 16 690 07 Rev. --

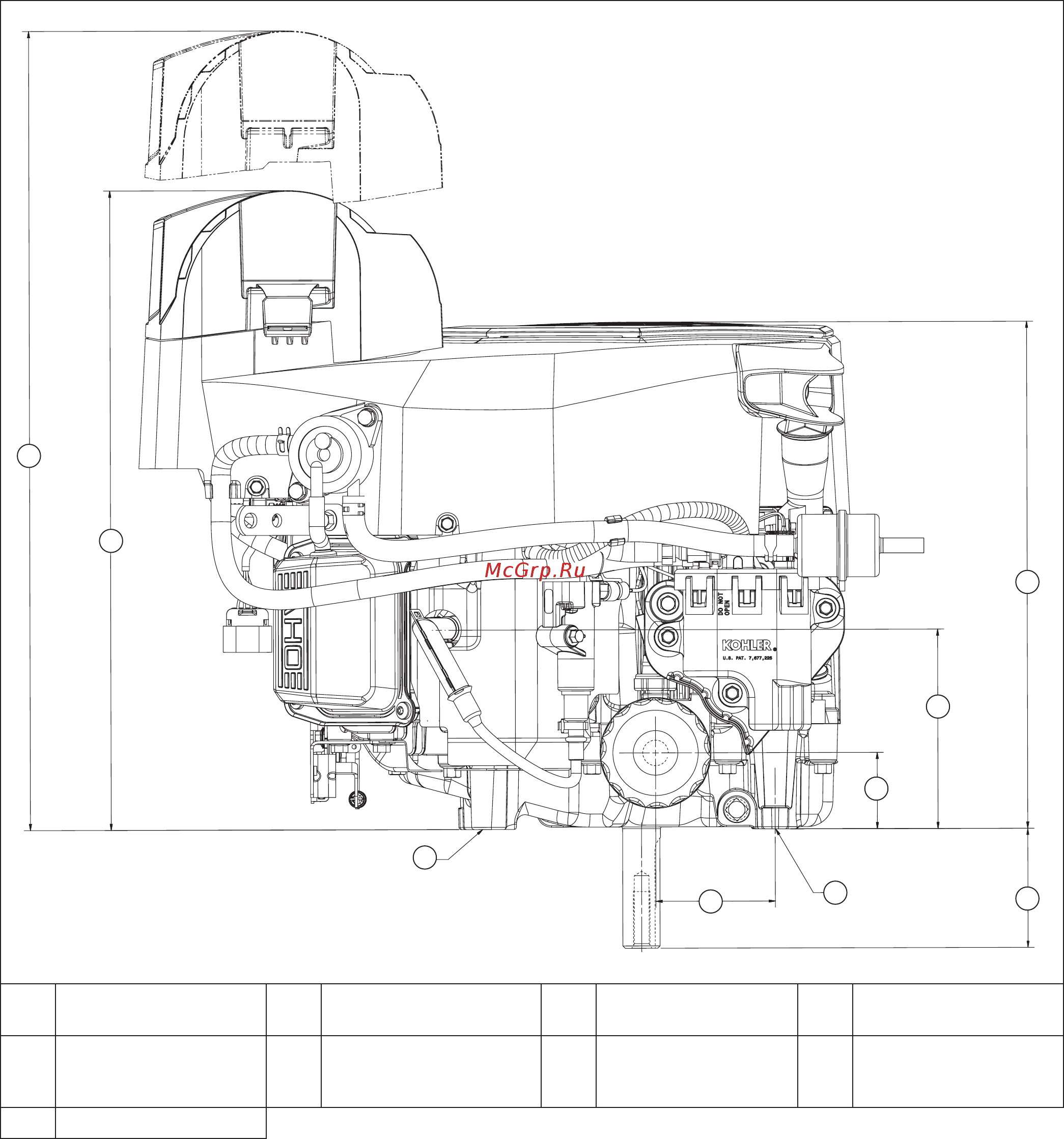

Engine Dimensions-with Heavy-Duty Air Cleaner-Oil Filter Side
A
B
C
D
E
F
G
H
I
A
536.9 mm (21.14 in.)
Air Cleaner Removal
B
429.6 mm (16.92 in.)
Top of Air Cleaner
C
Engine Mounting
Surface
D
80.3 mm (3.16 in.)
Oil Filter
E Mounting Hole "A" F 80.0 mm (3.15 in.) G
51.2 mm (2.02 in.)
Oil Filter
H
134.0 mm (5.28 in.)
Spark Plug
Center Line
I 340.7 mm (13.41 in.)
