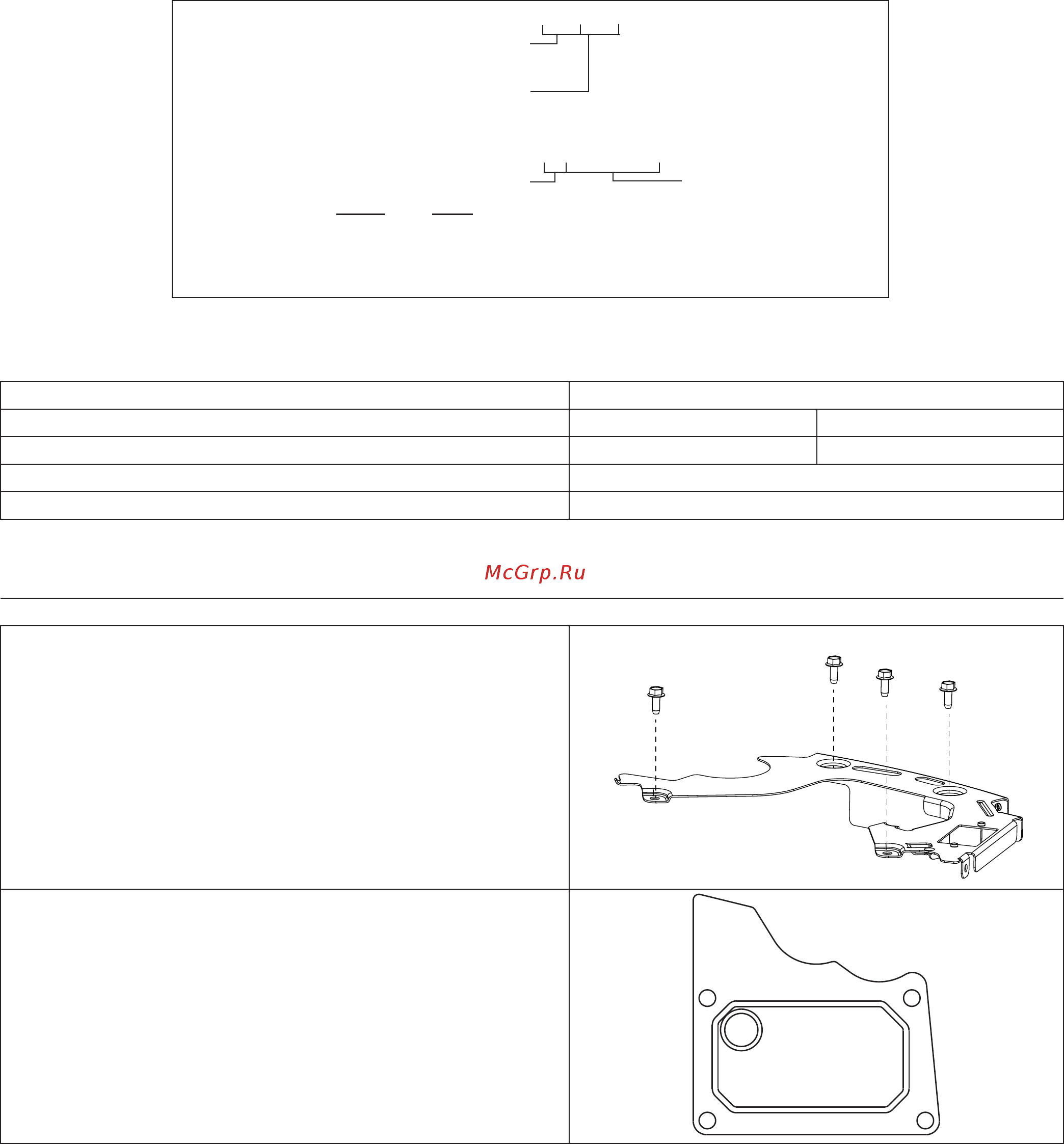

15
Specifi cations
16 690 07 Rev. -- KohlerEngines.com
ENGINE IDENTIFICATION NUMBERS
Kohler engine identifi cation numbers (model, specifi cation and serial) should be referenced for effi cient repair,
ordering correct parts, and engine replacement.
Model . . . . . . . . . . . . . . . . . . . . . EZT715
EFI Confi dant Engine
Numerical Designation
Specifi cation . . . . . . . . . . . . . . . EZT715-0001
Serial . . . . . . . . . . . . . . . . . . . . . 4523500328
Year Manufactured Code Factory Code
Code Year
45 2015
46 2016
47 2017
GENERAL SPECIFICATIONS
3,4
EZT715 EZT725 EZT740 EZT750
Bore 83 mm (3.27 in.)
Stroke 67 mm (2.64 in.) 69 mm (2.72 in.)
Displacement 725 cc (44 cu. in.) 747 cc (46 cu. in.)
Oil Capacity (refi ll) 1.9 L (2.0 U.S. qt.)
Maximum Angle of Operation (@ full oil level)
5
25°
3
Values are in Metric units. Values in parentheses are English equivalents.
4
Any and all horsepower (hp) references by Kohler are Certifi ed Power Ratings and per SAE J1940 & J1995 hp
standards. Details on Certifi ed Power Ratings can be found at KohlerEngines.com.
5
Exceeding maximum angle of operation may cause engine damage from insuffi cient lubrication.
TORQUE SEQUENCES EZT715 EZT725 EZT740 EZT750
(Refer to Torque Specifi cations for torque values).
Backing Plate Fasteners
1
4
3
2
Breather Cover Fasteners
42
1&5
3
