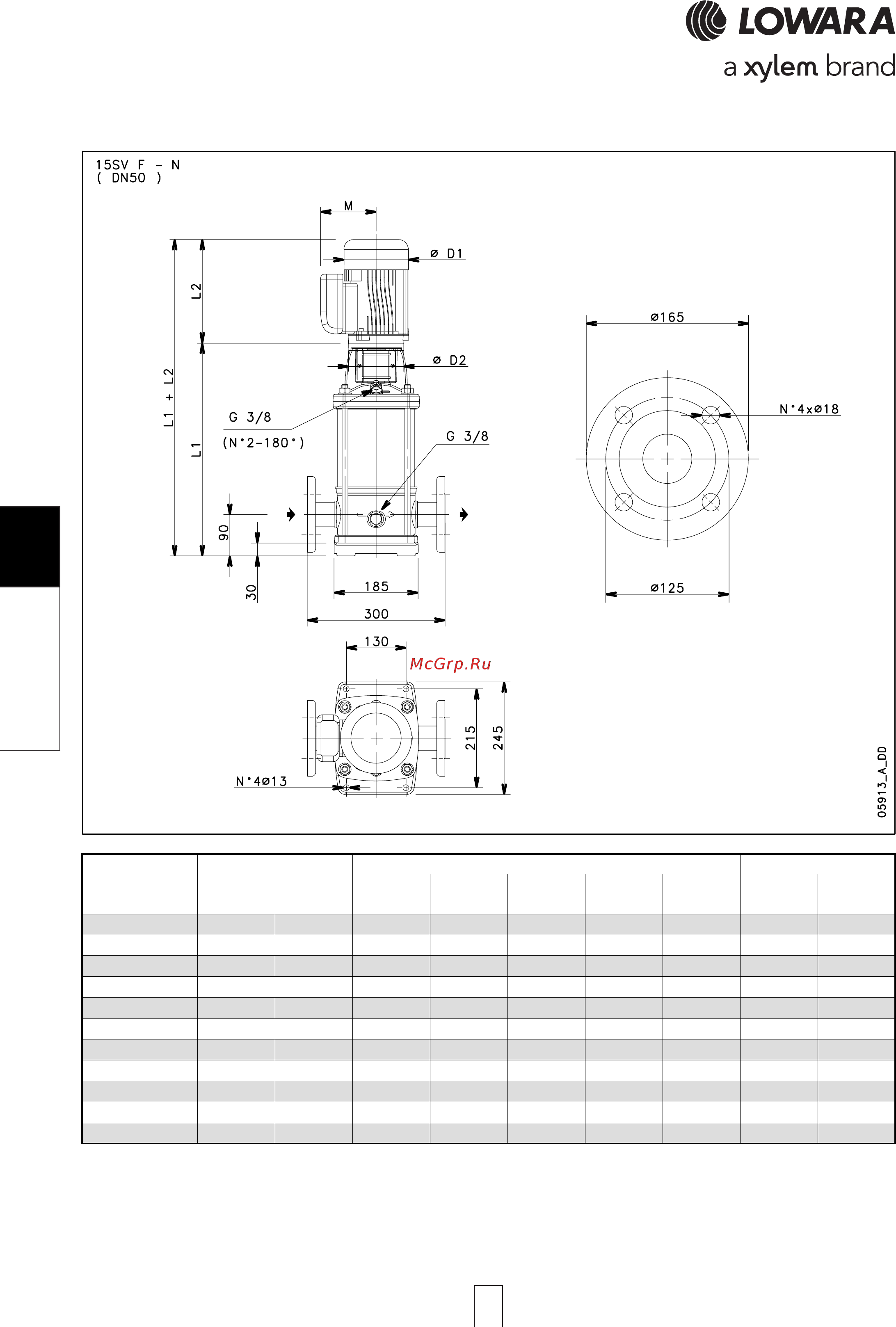

DIMENSIONS AND WEIGHTS ADIMENSIONS AND WEIGHTS A
DIMENSIONS AND WEIGHTS ADIMENSIONS AND WEIGHTS A
DIMENSIONS AND WEIGHTS A
T 50 Hz, 4-POLET 50 Hz, 4-POLE
T 50 Hz, 4-POLET 50 Hz, 4-POLE
T 50 Hz, 4-POLE
DIMENSIONI E PESI SERIE 15SV 4 poli 50 Hz
PUMP
TYPE ELECTRIC
kW SIZE L1 L2 D1 D2 M PUMP PUMP
15SV03..4.. 0,55 80 447 263 155 120 129 18,2 24,9
15SV05..4.. 0,55 80 543 263 155 120 129 20,6 27,3
15SV07..4.. 0,75 80 639 231 159 120 128 23,4 35,5
15SV09..4.. 1,1 90 745 298 174 140 134 26,4 43,8
15SV11..4.. 1,1 90 841 298 174 140 134 29,1 46,5
15SV13..4.. 1,5 90 937 298 174 140 134 31,8 51,8
15SV15..4.. 1,5 90 1033 298 174 140 134 34,4 54,4
15SV17..4.. 2,2 100 1139 322 214 160 168 38 66,8
15sv-4p50-en_d_td
MOTOR DIMENSIONS (mm) WEIGHT kg
