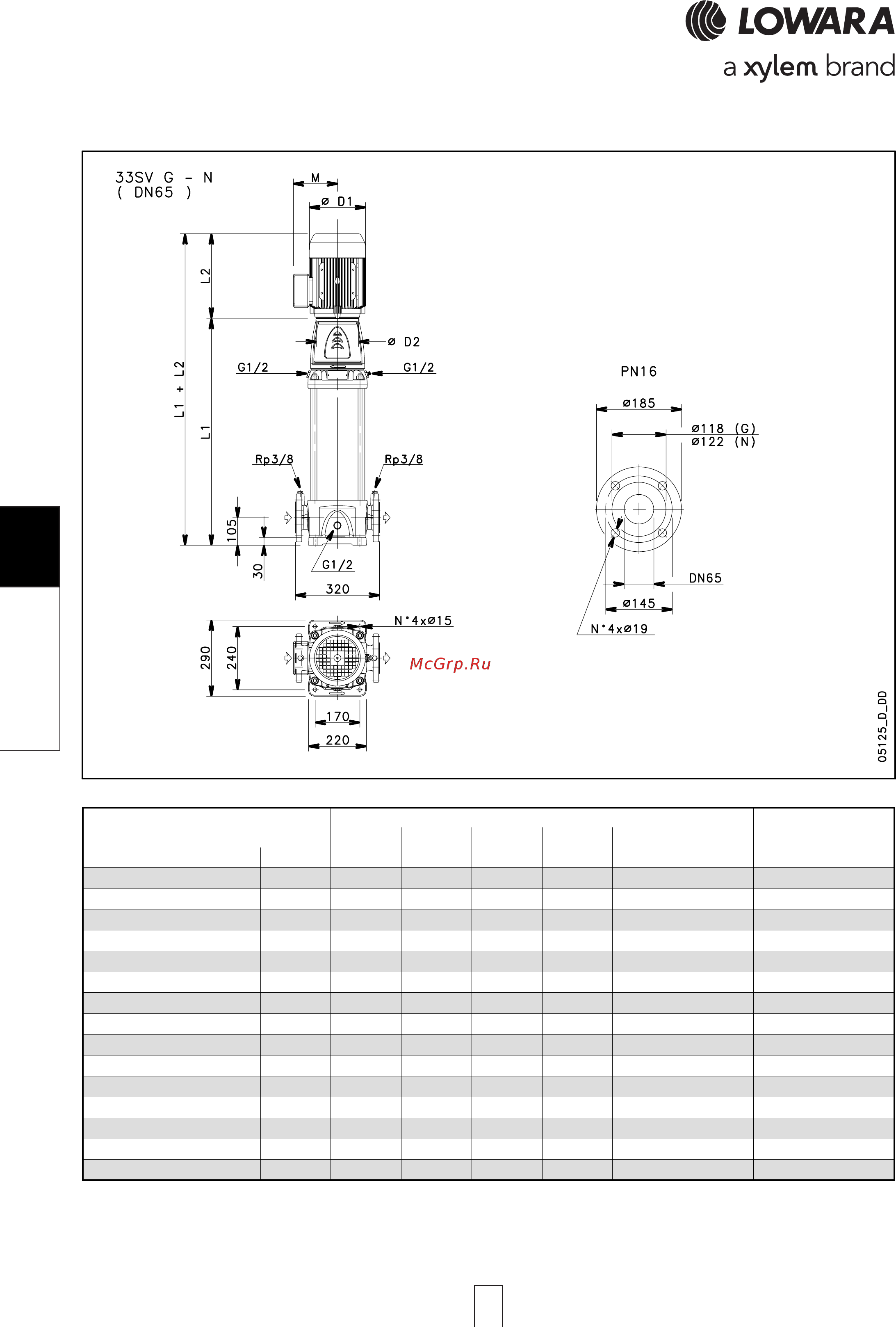

DIMENSIONI E PESI SERIE 33SV 4 poli 50 Hz
PUMP
TYPE ELECTRIC
kW SIZE L1 L2 D1 D2 M PN PUMP PUMP
33SV3/2A..4.. 1,1 90 639 298 174 164 134 16 60 78
33SV4/1A..4.. 1,1 90 714 298 174 164 134 16 64 82
33SV5..4.. 1,5 90 789 298 174 164 134 16 68 91
33SV6..4.. 2,2 100 864 322 214 164 168 16 72 101
33SV7..4.. 2,2 100 939 322 214 164 168 16 75 104
33SV8..4.. 3 100 1014 353 214 164 168 16 79 111
33SV9..4.. 3 100 1089 353 214 164 168 16 83 115
33SV10..4.. 3 100 1164 353 214 164 168 16 87 119
33SV11..4.. 4 112 1239 398 214 164 168 16 96 150
33SV12..4.. 4 112 1314 398 214 164 168 16 100 154
33SV13..4.. 4 112 1389 398 214 164 168 16 103 157
33sv-4p50-en_b_td
MOTOR DIMENSIONS (mm) WEIGHT kg
33SV SERIES33SV SERIES
33SV SERIES33SV SERIES
33SV SERIES
DIMENSIONS AND WEIGHTS ADIMENSIONS AND WEIGHTS A
DIMENSIONS AND WEIGHTS ADIMENSIONS AND WEIGHTS A
DIMENSIONS AND WEIGHTS A
T 50 Hz, 4-POLET 50 Hz, 4-POLE
T 50 Hz, 4-POLET 50 Hz, 4-POLE
T 50 Hz, 4-POLE
