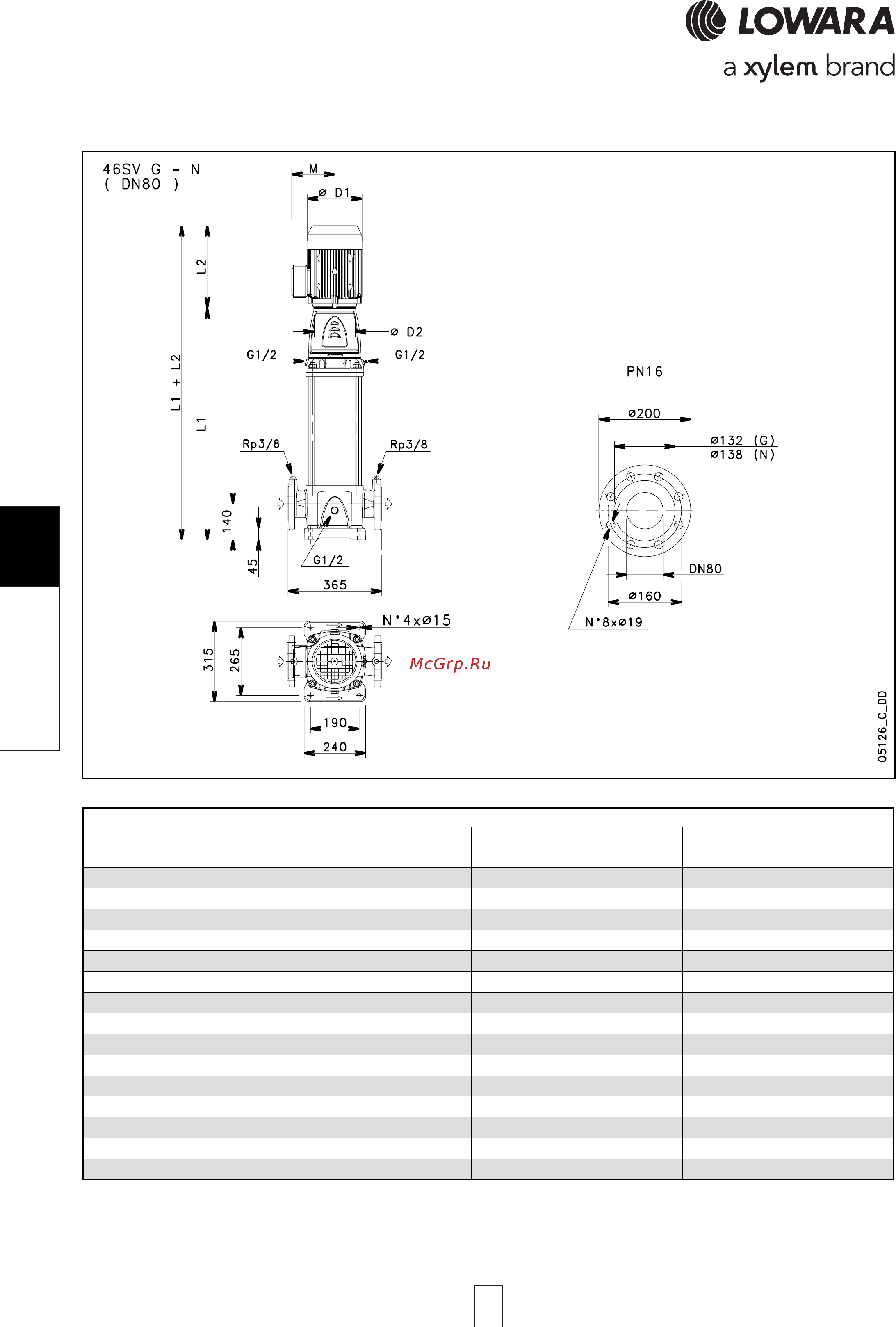

DIMENSIONI E PESI SERIE 46SV 4 poli 50 Hz
PUMP
TYPE ELECTRIC
kW SIZE L1 L2 D1 D2 M PN PUMP PUMP
46SV2..4.. 1,1 90 604 298 174 164 134 16 61 79
46SV3..4.. 1,5 90 679 298 174 164 134 16 65 88
46SV4..4.. 2,2 100 754 322 214 164 168 16 69 98
46SV5..4.. 2,2 100 829 322 214 164 168 16 73 102
46SV6..4.. 3 100 904 353 214 164 168 16 77 109
46SV7..4.. 3 100 979 353 214 164 168 16 80 112
46SV8..4.. 4 112 1054 398 214 164 168 16 84 138
46SV9..4.. 4 112 1129 398 214 164 168 16 88 142
46SV10..4.. 5,5 132 1224 405 256 300 191 16 97 156
46SV11..4.. 5,5 132 1299 405 256 300 191 16 105 164
46SV12..4.. 5,5 132 1374 405 256 300 191 16 109 168
46sv-4p50-en_b_td
MOTOR DIMENSIONS (mm) WEIGHT kg
46SV SERIES46SV SERIES
46SV SERIES46SV SERIES
46SV SERIES
DIMENSIONS AND WEIGHTS ADIMENSIONS AND WEIGHTS A
DIMENSIONS AND WEIGHTS ADIMENSIONS AND WEIGHTS A
DIMENSIONS AND WEIGHTS A
T 50 Hz, 4-POLET 50 Hz, 4-POLE
T 50 Hz, 4-POLET 50 Hz, 4-POLE
T 50 Hz, 4-POLE
