• Materials:
- Body in AISI 316L stainless steel
- Glass optic cap
- EPDM gasket
• Maximum pressure (PN): 25 bar (higher pressures on request).
• Fluid: clean demineralised water, independent of hardness and conductivity. Compatible with other fluids such as
oils (*).
• Liquid temperature: -20°C÷120°C. Ensure that the fluid always remains above freezing point.
• Ambient temperature: -5÷+50°C
• Continuous duty.
• Alarm delay: 10 sec, set in the factory.
• Connector: 3/8 “, included in the 3/8” – 1/2” adapter cap kit
• Protection degree: IP55.
• Electrical specifications:
- Supply voltage: DC model: 12÷28 Vdc. AC model: 21÷27Vac
- Sensor maximum absorption: 20mA
- Load maximum absorption: 50mA
- DC model outlet: NPN open manifold, maximum 28Vdc, 50mA
- AC model outlet: solid state outlet for general use in alternating current, maximum 21÷27Vac, 50mA
- Cable, included, type FROR 4 x 0,34 mm
2
(PVC-CEI 20-22) standard length 2m.
Cable working temperature: -20°C÷+70°C, fixed installation
• Dimensions: 27x 60 mm
(*) To check suitability for operating with a fluid such as oil, contact the Lowara technical support service and
supply the characteristics of the fluid.
CONNECTION DIAGRAMSCONNECTION DIAGRAMS
CONNECTION DIAGRAMSCONNECTION DIAGRAMS
CONNECTION DIAGRAMS
Mechanical installationMechanical installation
Mechanical installationMechanical installation
Mechanical installation

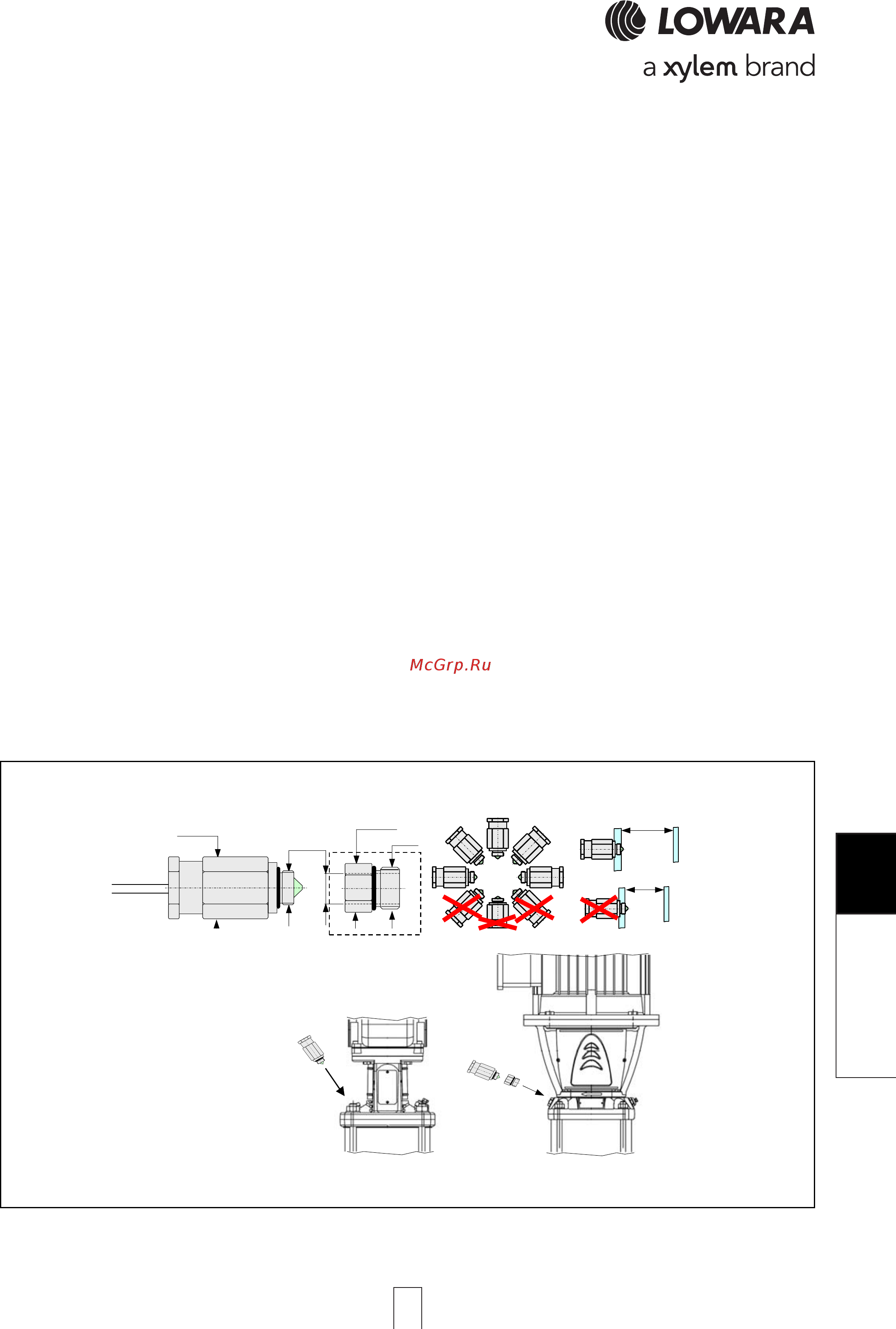

The sensor may be fitted directly on the filling cap of e-SV pumps; for the series SV33..92, 125SV it is necessary to fit
also a 3/8" – 1/2”, included in the kit.
1/2"
CH 24
3/8"
CH 27
≥ 50 mm
< 50 mm
