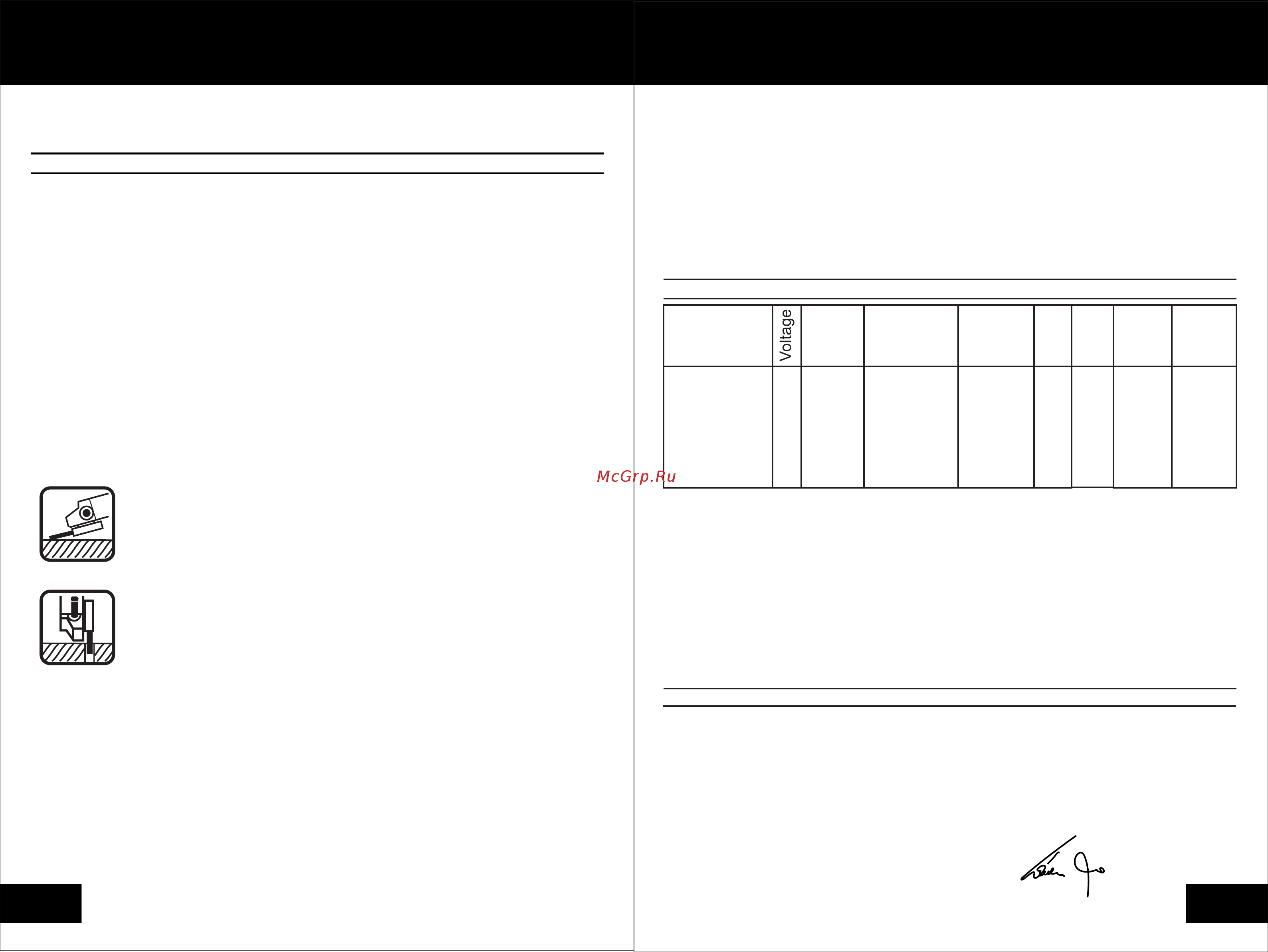

![STATUS SA230L (03052401) [6/30] Specifications accessories 7 ce declaration of conformity](/views2/1638166/page6/bg6.png)
10
EN
5. O PERATION INSTRUCTION
Note:
This angle grinder can be used for grinding and cutting steel , stone or
ceramic workpieces such as pipe, box section, rectangular, angle iron steel
bar, house bricks and tiles. Do not attempt to grind wood or a soft metal such
as lead. The material will quickly “fill” the disc and render it useless.
Before starting the grinder first ensure that the disc、 disc guard and tool are
in good condition. Position the guard so that it will deflect hot sparks away
from the operator.
1) Do not cover exhaust vents when the tool is in use. This may cause
damage to the motor and reduce the efficiency of the tool.
2) Guide back and forth over the work piece in a steady motion.
3) To cut hard stone a diamond cutting wheel is recommended.
Switch action.
1) To turn your grinder on. Press the lock-off button (12). Depress the on/off
switch trigger (4).
2) To turn your grinder off. Release the on/off switch trigger (4).
OPERATION INSTRUCTION
GRIDING: The best results are achieved with an angle of 30° to 40°
for grinding, Move the machine back and forth with 15° for finishing.
light pressure. In this manner, the workpiece does not become too hot,
no discoloration occurs and no ridges are produced.
CUTTING:Under no circumstances should a cutting disc be used for
roughing work. When cutting, do not press, tilt or oscillate.
Work with a moderate feed rate that is suited to the material to be
worked. The direction in which one cuts is important.
The machine must always rotate opposite to the direction of motion;
therefore never move the machine in the other direction. Otherwise,
the danger exists that it will be forced uncontrolled out of the cut.
Maintance and inspection
CAUTION: Always be sure that the tool is switched off and unplugged before
attempting to perform inspection or maintenance.
tightened. Showed any of the screws be loose, tighten them immediately.
Failure to do so may result in serious damage.
4) The supply cord of the tool and any extension cord used should be checked
frequently for damage. If damaged, have the cordset replaced by an
authorized service facility. Replace the extension cord if necessary.
5) The grease in the gearbox will require replacement after extensive use of the
tool. Please refer to an authorized service agent to provide this service.
6) Consult an authorized service agent in the event of failure.
7) Clean and dust the tool after each use.
1) The armature and stator(motor) is the heart of the power tool. Exercise due
care to ensure they do not become damaged or affected by oil or water.
2) The carbon brushes should be checked periodically and worn-out brushes
should be replaced in time. After replacing, inspect whether the new carbon
brushes can move freely in the brush bolder. Keep running the motor for 15
minutes to match the contact of the carbon brushes and commutator.
3) Regularly inspect all mountings and screws and ensure they are properly
When cutting profiles or square pipes, it is best to start with the smallest cross section.
SPECIFICATIONS / ACCESSORIES
Angle grinder, auxiliary handle, grinding guard, spanner, manual, packing
6. SPECIFICATIONS / ACCESSORIES
7. CE DECLARATION OF CONFORMITY
CE DECLARATION OF CONFORMITY
STATUS ITALIA S.r.l. as the responsible manufacturer declare that the following
STATUS machines: Angle grinder SA150/180S/230L/230CS/230S/230CSF
are of series production and сonforms to the following European Directives:
The Machinery Directive 2006/42/EC, 2006/95/EC
And are manufactured in accordance with the following standards or standardised
documents:EN 60745-1:2009, EN 60745-2-3/A11:2009
The technical documentation kept by the manufacturer: STATUS ITALIA S.R.L.,
via Aldo Moro, 14/A, 36060 - Pianezze (VI), ITALY
Caron Giacinto
Director
STATUS ITALIA S.R.L.
EN
11
Rated
power
(W)
Model
No load
speed
(RPM)
Grinding
wheel
Weight
(kg)
Soft
start
Const.
power
Rotating
rear
handle
SA150
SA180S
SA230L
SA230CS
SA230S
SA230CSF
230-240V ~50Hz
1400
1800
2100
2100
2300
2500
Ø150
Ø180
Ø230
Ø230
Ø230
Ø230
3,4
4,2
4,5
4,5
5,4
5,5
-
+
+
+
+
+
-
-
-
+
-
+
-
+
+
+
+
+
6200
6200
9000
6200
8000
6200
Noise emission (measured values determined according to EN 60745):
A-weighted sound pressure level LpA 92,8 dB(A)SA150/180, LpA 95 dB(A)SA230
Uncertainty КpA=3.0 dB
A-weighted sound power level LwA 103,8 dB(A)SA150/180, LwA 106 dB(A)SA230
Uncertainty КwA=3.0 dB
Total vibration values (vector sum in the three axes) according to EN 60745
Vibration emission value SA150/180 ahAG - 8,632 m/s² (main handle),
ahAG - 9,319 m/s² (aux. handle), Uncertainty K=1.5 m/s²
Vibration emission value SA230 ahAG 8,785 m/s² (main handle),
ahAG - 8,847 m/s² (aux. handle), Uncertainty K=1.5 m/s²
- Make sure that it is securely positioned: the rear handle must be engaged and it
should not be possible to move it.
