Ricoh Aficio 1027 [24/27] Stored image file print data flow
![Ricoh Aficio 1022 [24/27] Stored image file print data flow](/views2/1064576/page24/bg18.png)
Ricoh Company, Ltd
24/27
Software Flow
:Control Flow :Data Flow
UNIX OS
SRM
NCS
SCS
FCS MCS ECS
Printer COPY FAX Scan
Net
File
Scanning
IMH
API
En
g
ine I/F
FCU HDD
Host I/F
Printing
OCS
Shared
Service
Layers
Application

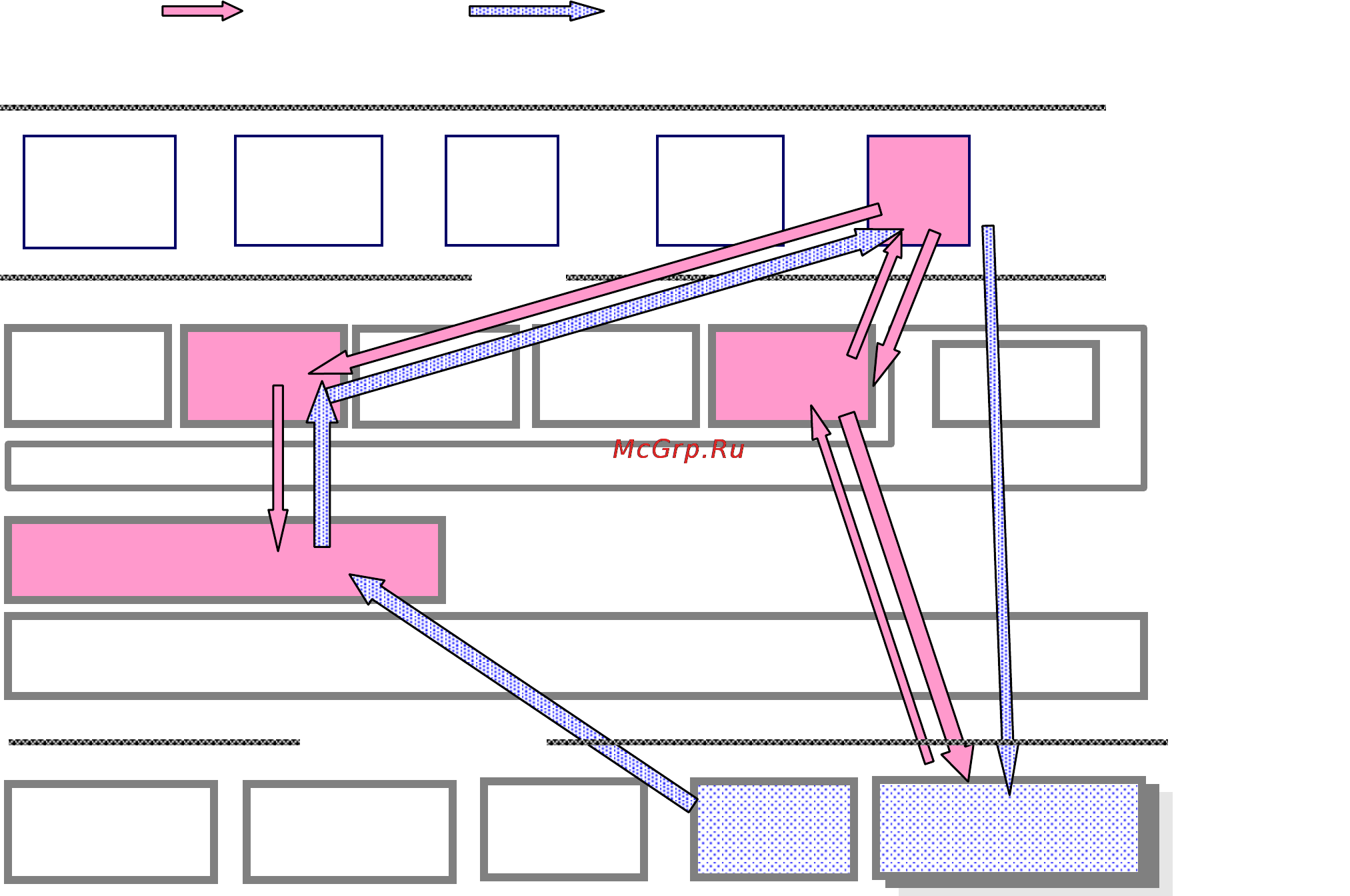

Stored image file print data flow
By a print command from SmartNet Monitor for the stored image data file, the file is selected for printing in the ECS.
The ECS, together with the IMH, outputs the read stored document file, and then printing is executed by the scanning
engine.
Stored image file fax transmission data flow
By a fax TX command from SmartNet Monitor for the stored fax image file, the file is selected for printing in the FCS.
The FCS, together with the IMH, output the fax image file stored on the HDD, and then the fax transmission is
executed by the FCU.
