- 35 -
Hardware Installation

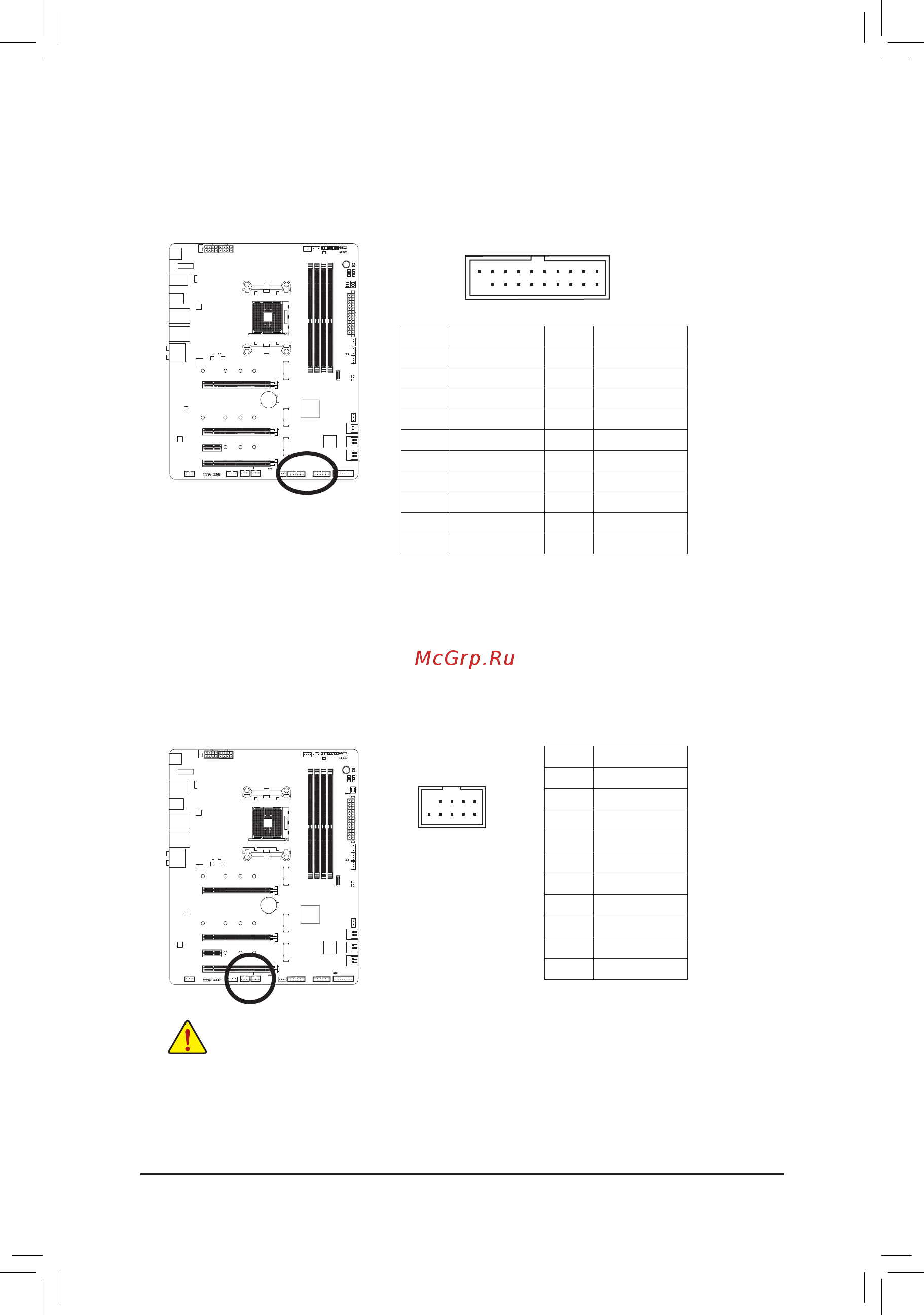

15) F_USB30_1/F_USB30_2 (USB 3.2 Gen 1 Headers)
TheheadersconformtoUSB3.2Gen1andUSB2.0specicationandeachheadercanprovidetwoUSB
ports. For purchasing the optional 3.5" front panel that provides two USB 3.2 Gen 1 ports, please contact
the local dealer.
Pin No. Denition Pin No. Denition
1 VBUS 11 D2+
2 SSRX1- 12 D2-
3 SSRX1+ 13 GND
4 GND 14 SSTX2+
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 GND
7 GND 17 SSRX2+
8 D1- 18 SSRX2-
9 D1+ 19 VBUS
10 NC 20 No Pin
20
1
10
11
F_USB30
F_U
B_
F_ F_
_
B
BS_
B
SB_
B
_S
S_
_
B
_U
_
B
S
123
123
123
123
1
1
1
1
BSS
S
_S
SSU
1 2 3 4 5
S3
BSSS
U
__ 3
F_USB3F
S _
S _
S _
SF
B_
B_
F
_0
S
S
_0F
_F
_
_
__B
U
S _S
_
SF_
USB0_B
B_
F_USB3
F_USB303
_
_3U
16) F_USB1/F_USB2 (USB 2.0/1.1 Headers)
TheheadersconformtoUSB2.0/1.1specication.EachUSBheadercanprovidetwoUSBportsviaan
optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.
Pin No. Denition
1 Power (5V)
2 Power (5V)
3 USB DX-
4 USB DY-
5 USB DX+
6 USB DY+
7 GND
8 GND
9 No Pin
10 NC
DEBUG
PORT
G.QBOFM
10
9
2
1
• Only the USB ports routed to the F_USB30_1 connector support USB TurboCharger. Enabling
this function requires software support. The maximum power output of this connector may vary
depending on the power management mechanism for the USB cable and charging device used.
For more information on USB TurboCharger, refer to the instructions in Chapter 5, "Unique
Features."
• Do not plug the IEEE 1394 bracket (2x5-pin) cable into the USB 2.0/1.1 header.
• Prior to installing the USB bracket, be sure to turn off your computer and unplug the power cord
from the power outlet to prevent damage to the USB bracket.
