- 37 -

Hardware Installation

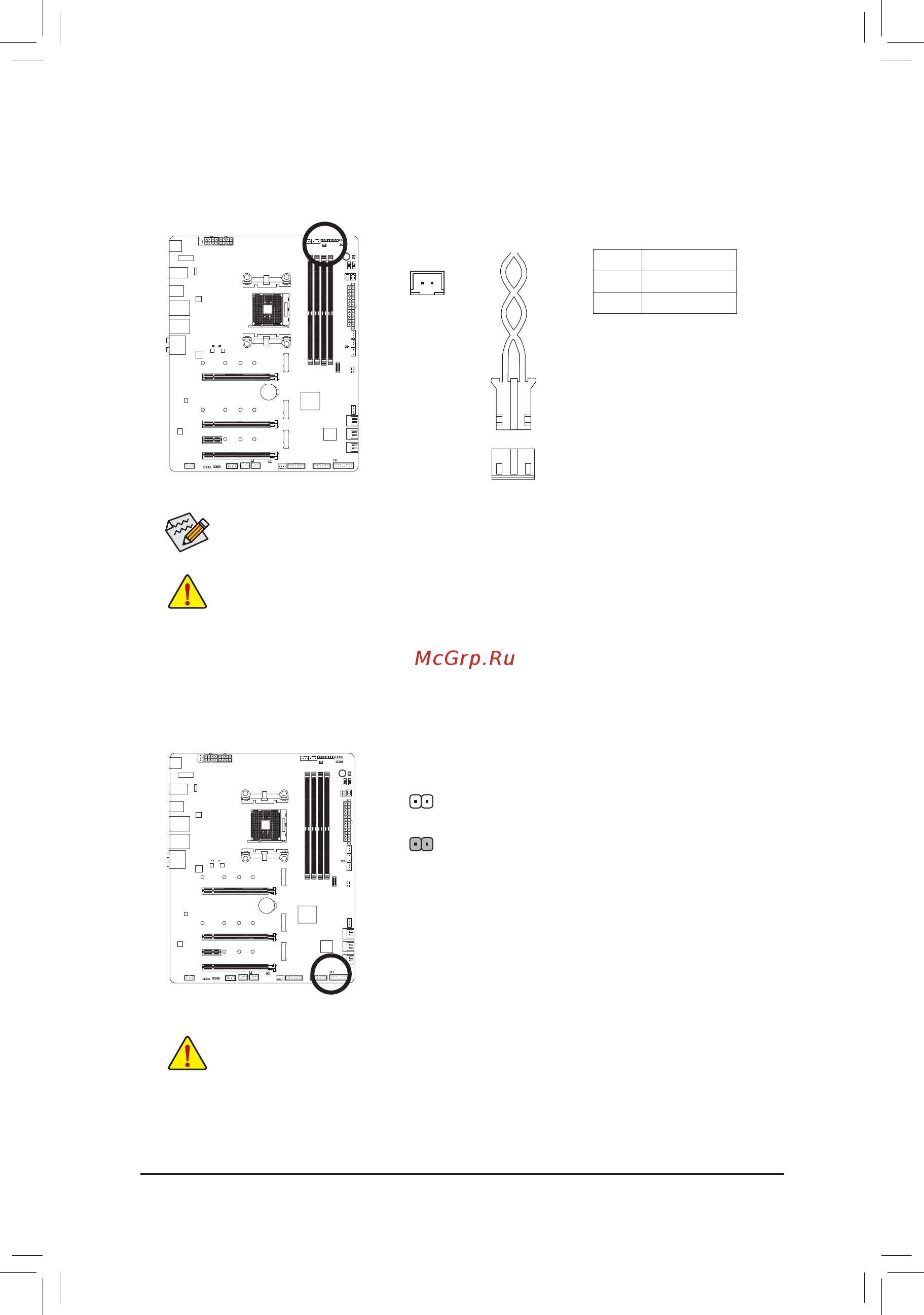

19) NOISE SENSOR (Noise Detection Header)

This header can be used to connect a noise detection cable to detect the noise inside the case.

Pin No. Denition

1 Noise Detection

2 GND

1

Before connecting the cable to the header, make sure to remove the jumper cap; re-place the

jumper cap if the header is not in use.

For more information on the noise detection function, refer to the instructions in Chapter 5, "Unique

Features," "APP Center\System Information Viewer."

Noise Detection

Cable

1

20) CLR_CMOS (Clear CMOS Jumper)

 UsethisjumpertocleartheBIOScongurationandresettheCMOSvaluestofactorydefaults.Toclear

the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds.

• Always turn off your computer and unplug the power cord from the power outlet before clearing

the CMOS values.

• After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or

manuallyconguretheBIOSsettings(refertoChapter2,"BIOSSetup,"forBIOScongurations).

Open: Normal

Short: Clear CMOS Values
