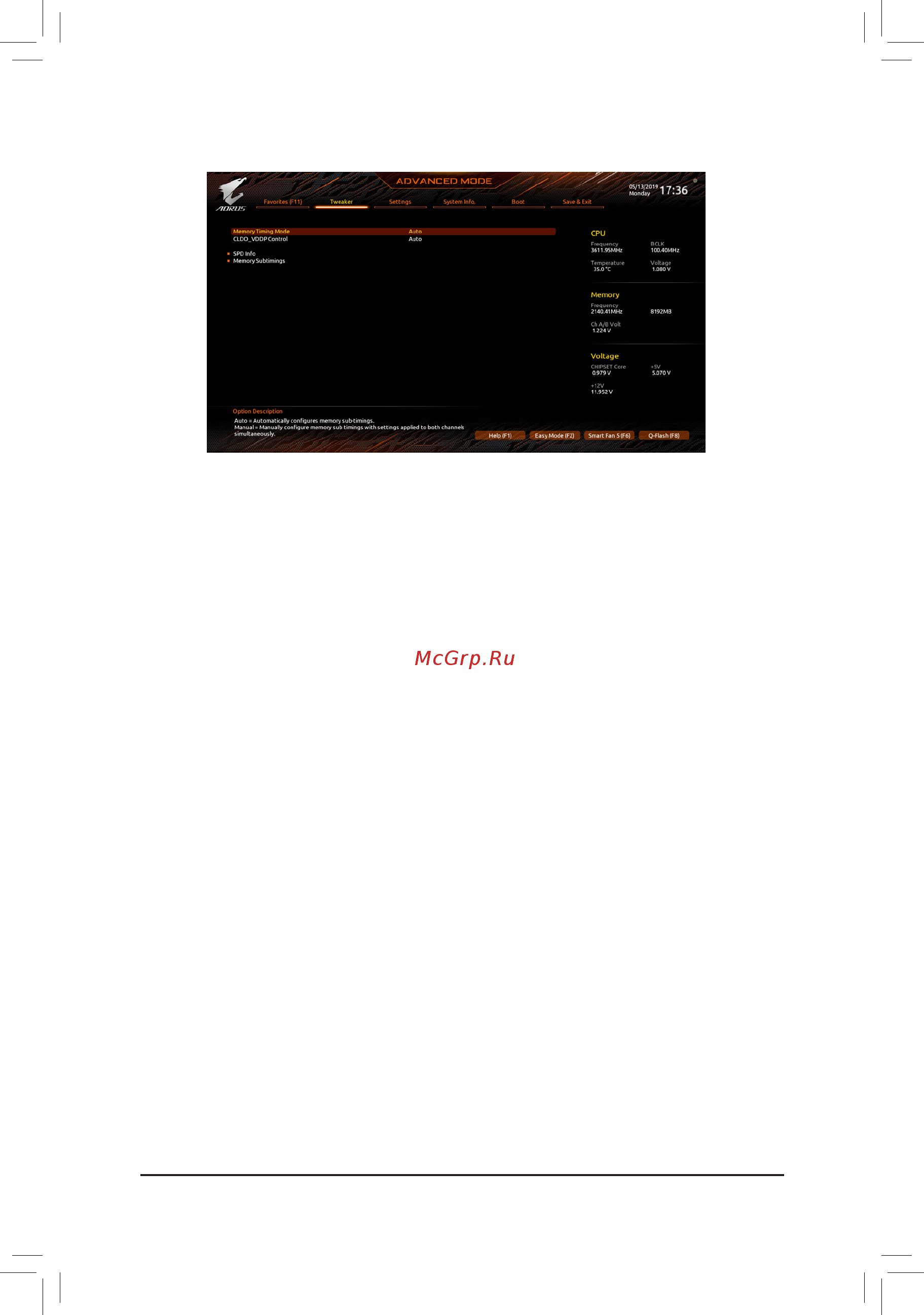

 Advanced Memory Settings

& Memory Timing Mode

Manual allows the memory timing settings on the Memory Subtimingssubmenutobecongurable.

Options are: Auto (default), Manual.

& CLDO_VDDP Control

(Note)

Allows you to determine whether to manually change the CLDO_VDDP voltage. Auto lets the BIOS

automaticallycongurethissetting.(Default:Auto)

& CLDO_VDDP Voltage(mV)

(Note)

 AllowsyoutomanuallychangetheCLDO_VDDPvoltage.ThisitemiscongurableonlywhenCLDO_VDDP

Control is set to Manual.

 SPD Info

Displays information on the installed memory.

 Memory Subtimings

d Standard Timing Control, Advanced Timing Control, CAD Bus Setup Timing, CAD Bus

DriveStrength,DataBusConguration

 Thesesectionsprovidememorytimingsettings.Therespectivetimingsettingscreensarecongurable

only when Memory Timing Mode is set to Manual. Note: Your system may become unstable or fail to boot

after you make changes on the memory timings. If this occurs, please reset the board to default values by

loading optimized defaults or clearing the CMOS values.

& CPU Vcore/Dynamic Vcore(DVID)/VCORE SOC/Dynamic VCORE SOC(DVID)/CPU VDD18/

CPU VDDP/PM_1VSOC/PM_1V8/DRAM Voltage (CH A/B)

These items allow you to adjust the CPU Vcore and memory voltages.

(Note) This item is present only when you install a CPU that supports this feature.
