The four memory sockets are divided into two channels and each channel has two memory sockets as following:

ChannelA:DDR4_2,DDR4_4

ChannelB:DDR4_1,DDR4_3

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory

of the same capacity, brand, speed, and chips be used.

DualChannelMemoryCongurationsTable

DDR4_4 DDR4_2 DDR4_3 DDR4_1

2 Modules

- - DS/SS - - DS/SS

DS/SS - - DS/SS - -

4 Modules DS/SS DS/SS DS/SS DS/SS

(SS=Single-Sided,DS=Double-Sided,"--"=NoMemory)

1-5 Installing an Expansion Card

Readthefollowingguidelinesbeforeyoubegintoinstallanexpansioncard:

• Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

• Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

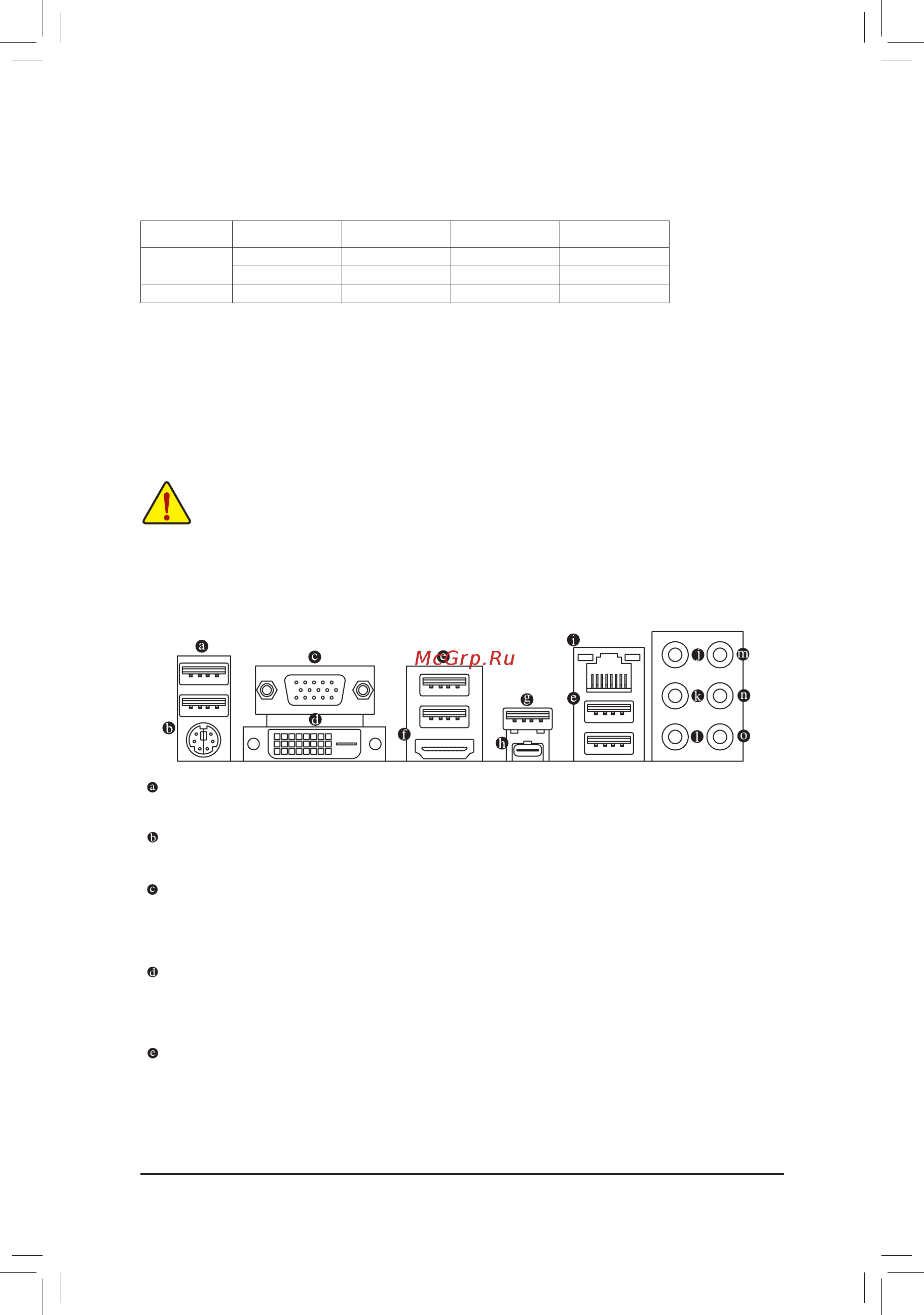

1-6 Back Panel Connectors

USB 2.0/1.1 Port

TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

D-Sub Port

TheD-Subportsupportsa15-pinD-Subconnectorandsupportsamaximumresolutionof1920x1200@60Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports D-Sub

connection to this port.

DVI-D Port

(Note)

TheDVI-DportconformstotheDVI-Dspecicationandsupportsamaximumresolutionof1920x1200@60Hz

(theactualresolutionssupporteddependonthemonitorbeingused).ConnectamonitorthatsupportsDVI-D

connection to this port.

USB 3.1 Gen 1 Port

TheUSB3.1Gen1portsupportstheUSB3.1Gen1specicationandiscompatibletotheUSB2.0

specication.UsethisportforUSBdevices.

(Note) TheDVI-DportdoesnotsupportD-Subconnectionbyadapter.
