Gigabyte H370M D3H GSM (rev. 1.0) [16/48] F_panel front panel header

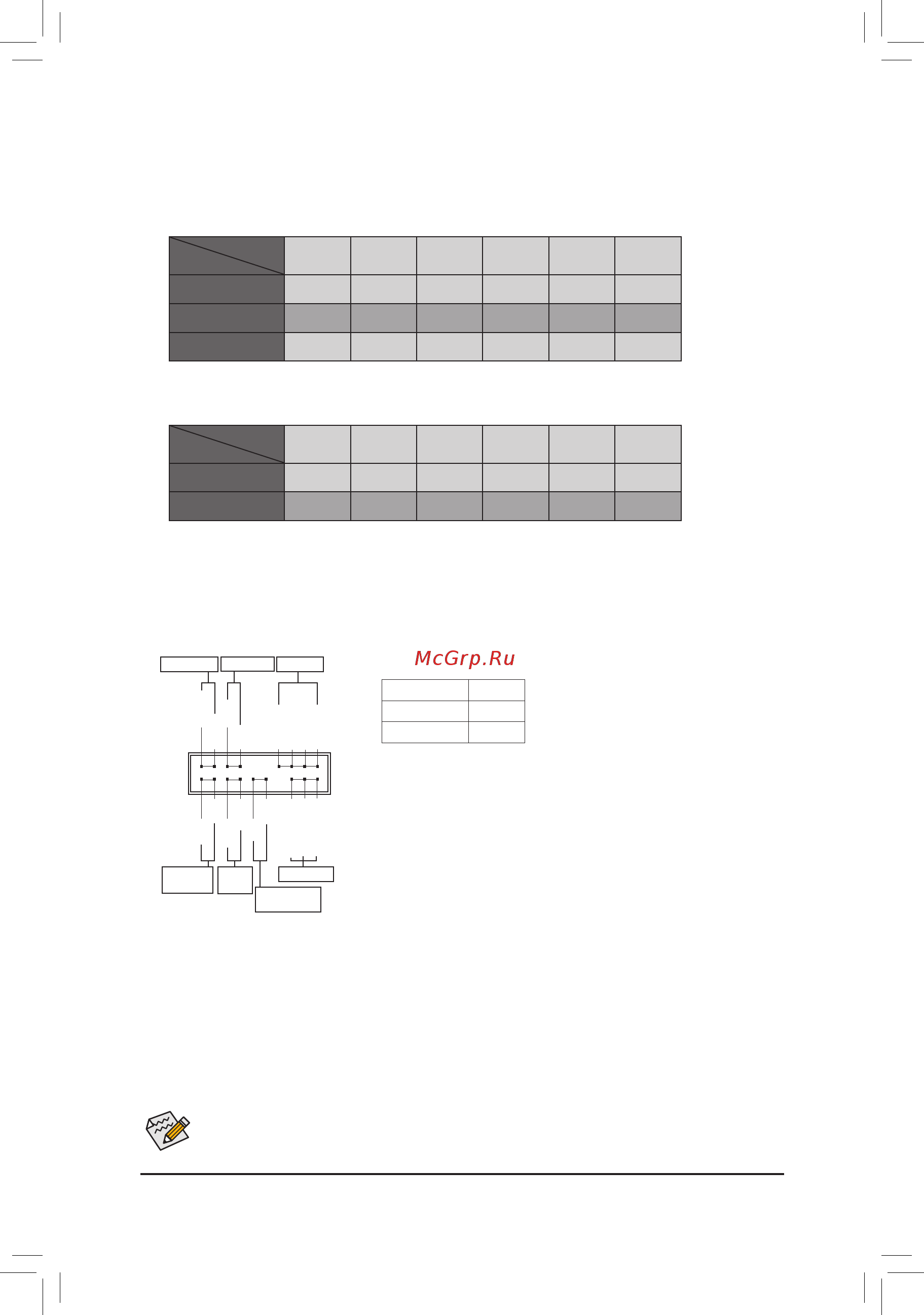

Installation Notices for the M.2 and SATA Connectors:

Due to the limited number of lanes provided by the Chipset, the availability of the SATA connectors may

beaffectedbythetypeofdeviceinstalledintheM2P_16Gconnector.TheM2P_16Gconnectorshares

bandwidthwiththeSATA31connector.Refertothefollowingtablefordetails.

• M2Q_32G:

SATA3 0 SATA3 1 SATA3 2 SATA3 3 SATA3 4 SATA3 5

M.2 PCIe SSD *

a a a a a a

NoM.2SSDInstalled

a a a a a a

a: Available, r:Notavailable

* TheM2Q_32GconnectorsupportsonlyPCIeSSDs.

• M2P_16G:

SATA3 0 SATA3 1 SATA3 2 SATA3 3 SATA3 4 SATA3 5

M.2 SATA SSD

a a a a

M.2 PCIe SSD

a a a a a a

NoM.2SSDInstalled

a a a a a a

a: Available, r:Notavailable

* TheM2P_16GconnectorsupportsuptoPCIex2SSDsonly.

Connector

Type of

M.2 SSD

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset

switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel

module to this header, make sure the wire assignments and the pin assignments are matched correctly.

7) F_PANEL (Front Panel Header)

Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator

onthechassistothisheaderaccordingtothepinassignmentsbelow.Notethepositiveandnegativepins

before connecting the cables.

System Status LED

S0 On

S3/S4/S5 Off

• PW(PowerSwitch,Red):

Connects to the power switch on the chassis front panel. You may

congurethewaytoturnoffyoursystemusingthepowerswitch(refer

toChapter2,"BIOSSetup,""Power,"formoreinformation).

• SPEAK (Speaker, Orange):

Connects to the speaker on the chassis front panel. The system reports

system startup status by issuing a beep code. One single short beep

will be heard if no problem is detected at system startup.

• PLED/PWR_LED (Power LED, Yellow/Purple):

Connects to the power status indicator

on the chassis front panel. The LED is on

when the system is operating. The LED is

off when the system is in S3/S4 sleep state

or powered off (S5).

• HD (Hard Drive Activity LED, Blue):

Connects to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is

reading or writing data.

• RES (ResetSwitch,Green):

Connects to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the

computerfreezesandfailstoperformanormalrestart.

• CI (Chassis Intrusion Header, Gray):

Connects to the chassis intrusion switch/sensor on the chassis that can detect if the chassis cover has been

removed. This function requires a chassis with a chassis intrusion switch/sensor.

• NC (Orange):NoConnection.

Power LED

DEBUG

PORT

G.QBOFM

CI-

CI+

PWR_LED-

PWR_LED+

PLED-

PW-

SPEAK+

SPEAK-

PLED+

PW+

Power LED

HD-

RES+

HD+

RES-

Hard Drive

Activity LED

Reset

Switch

Chassis

Intrusion Header

Power Switch

Speaker

PWR_LED-

Type of

M.2 SSD

Connector

- 16 -
