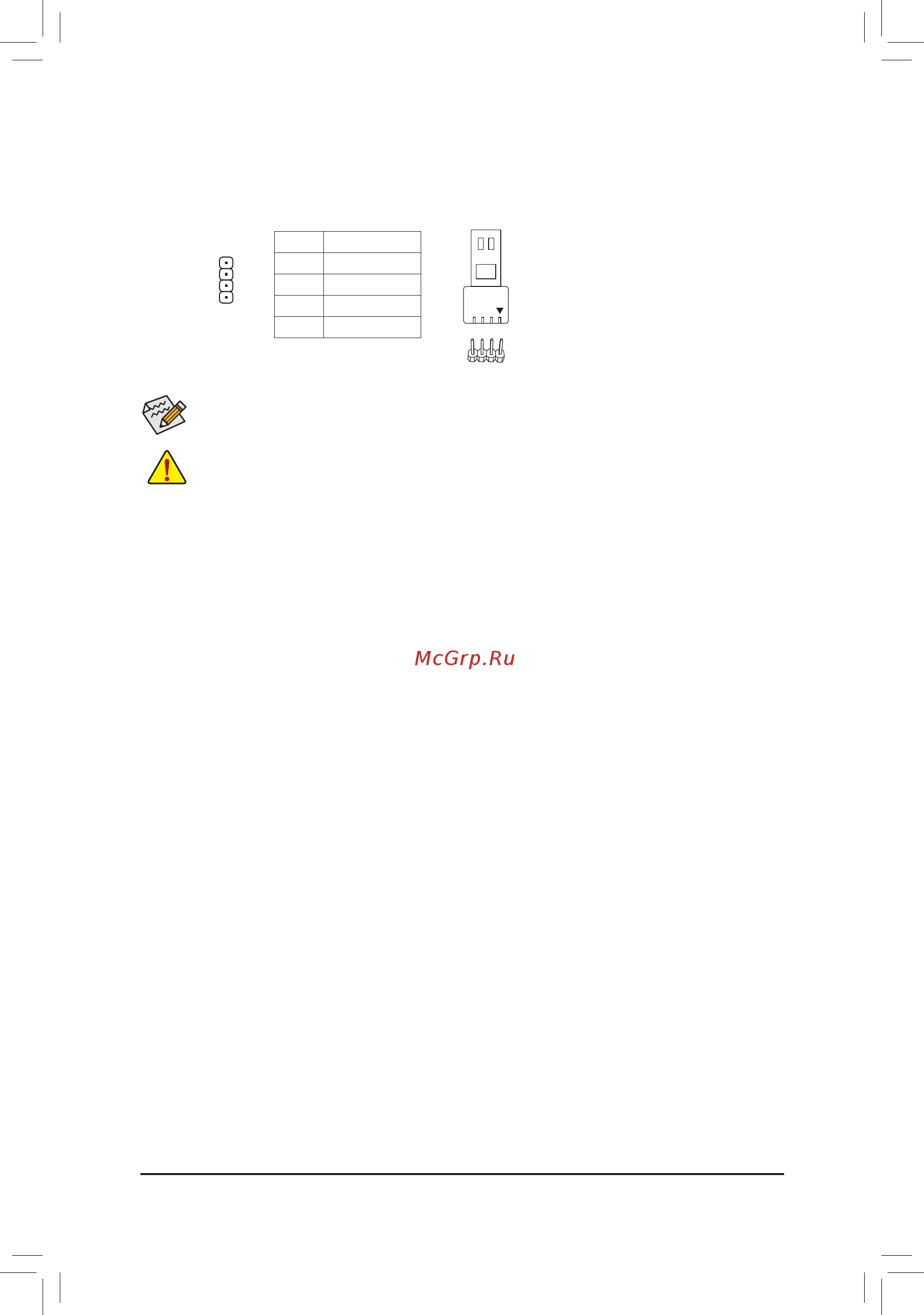

17) LED_C (RGB LED Strip Header)

 Theheadercanbeusedtoconnectastandard5050RGBLEDstrip(12V/G/R/B),withmaximumpower

ratingof2A(12V)andmaximumlengthof2m.

PinNo. Denition

1 12V

2 G

3 R

4 B

Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord

from the power outlet to prevent damage to the devices.

Forhowtoturnon/offthelightsoftheLEDstrip,refertotheinstructionsoninChapter2,"BIOSSetup,"

"Peripherals."

1

ConnectyourRGBLEDstriptothe

header. The power pin (marked with

a triangle on the plug) of the LED strip

mustbeconnectedtoPin1(12V)of

this header. Incorrect connection may

lead to the damage of the LED strip.

RGB

LED Strip

DEBUG

PORT

G.QBOFM

1

12V

- 20 -
